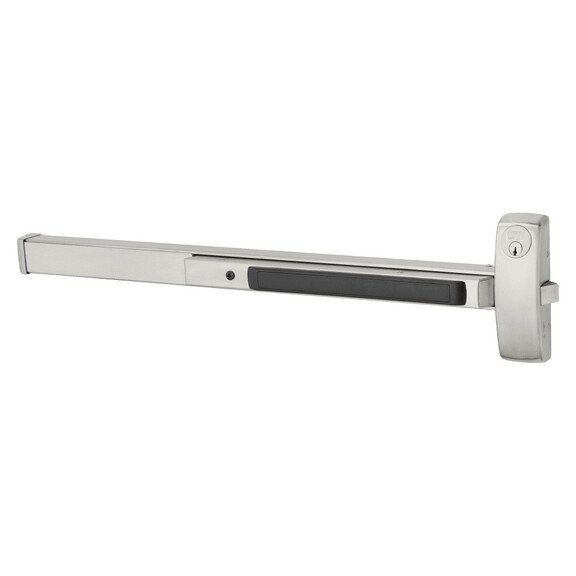

Sargent 8816F RHR 32D 8800 Series Rim Exit Devices
* Click "Add to Cart" to calculate shipping and delivery time.
Pricing Note
Product Description
Manufacturer Part Number: 8816F RHR 32D
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Classroom Security Function, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36" Device, Classroom Security Function, Hex Key Dogging, Satin Stainless Steel Finish, Right Hand Reverse
Product Specs
Vendor : ASSA Abloy
Manufacturer : Sargent
SKU : 8816F RHR 32D
UID : SAR1008816FRHR32D
Grade : Grade 1
Unit of Measure : Each
Origin : USA
BAA Qualified : Yes
Burglar Rated : No
ADA Compliance : No
Installation : Commercial
Fire Rating : No
Limited Warranty : 5 Years
UL Listing : UL10C & UL305
ANSI : ANSI/BHMA A156.3
Finish
Finish
630/US32D
Finish Description : Satin Stainless Steel
Finish Family : Matte Silver
Technical Specs
Door Thickness : 1-3/4" - 2-1/4"
Physical Appearance : Wide Stile Pushpad
Device Type : Rim
Door Material : Metal or Wood
Includes Cylinder(s) : No
Device Length : 36"
Fire Rated : No
Dogging Options : Hex Key Dogging
Minimum Stile Size : 4-3/4"
Reversible : No
Mechanical Function : Classroom Security
Includes Trim : No
Trim Type : Less trim
Handing : Right Hand Reverse
Door Width : 33" to 36"
Dimensions
Pack Qty : 1
Ship Weight : 15 lbs.
Pack Width : 7.5"
Pack Height : 6"
Pack Length : 38"
Pack Volume : 1710 in?
8800 Series Rim Exit Devices
The 8800 series is designed for standard width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
Attention CA Residents: Prop 65 Warning
WARNING:
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Return Policy
Return could only be applied within 10 days after delivery.
Note
This product is not eligible for coupon code discount, for we've been offering the best price in the market.
Need more information?
Our staff are available to answer any questions you may have about this item
Our staff are available to answer any questions you may have about this item
Customer Reviews
By xing
Date: November 17, 2025
I install it about 3 months ago then handle was crack
Rating:
[5 of 5 Stars!]
[5 of 5 Stars!]
By Abdul Jalalzai
Date: October 23, 2025
Thanks for the quality item and express delivery
Rating: [5 of 5 Stars!]
[5 of 5 Stars!]
By A Customer
Date: July 23, 2024
GREAT ITEM THANKS
Rating: [5 of 5 Stars!]
[5 of 5 Stars!]
By Moe Allen
Date: May 11, 2024
We install it works fantastic customers happy with it
Rating: [5 of 5 Stars!]
[5 of 5 Stars!]
By William C.
Date: January 29, 2024
Works good, easy install, great value
Rating: [5 of 5 Stars!]
[5 of 5 Stars!]
By Cindy C
Date: September 29, 2023
My husband needed these for a remodel job at a church. These were exactly what he needed, installed easily, and are heavy duty. He said he'd purchase these again if needed.
Rating: [5 of 5 Stars!]
[5 of 5 Stars!]
