Product Description

Use this heavy duty, Stainless steel, anti-vandal push button latching (push on/push off) switch for outdoor and other extreme condition applications. It has a built-in blue light ring for 3 VDC applications.

Key Features:
  • Popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications
  • Stainless steel body and IP67 rating for extreme conditions
  • Built-in 3 VDC blue ring illumination for low lit areas and connection identification
  • RoHS certified
  • Includes rubber washer for IP67 rating
  • Easily mounts in 0.64" (16 mm) hole with included shaft nut
  • Mounts in panels up to 0.4" thick


Overview:

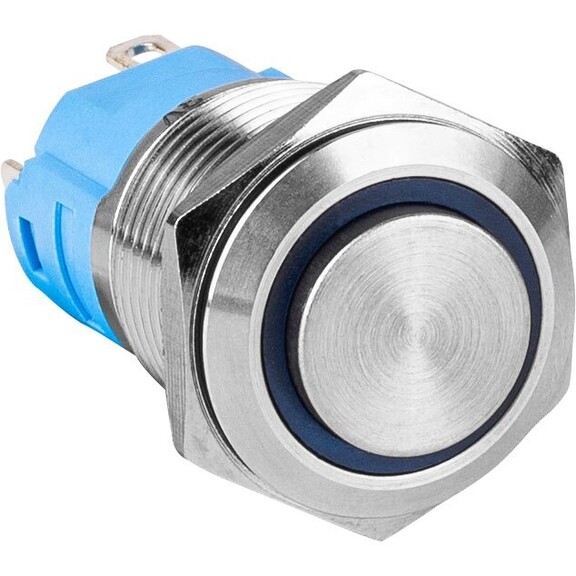

SPDT Latching 16mm Stainless Steel Tamper/Waterproof Raised Push Button Switch with Blue Ring

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications. The stainless steel body and push on/push off button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 3 VDC blue light for locating in low lit areas and connection identification. Use appropriate resistor for voltages higher than 3V.

Specifications: Light rating: 3 VDC Switch rating: 1.5~250V AC/DC up to 5A Switch total size without terminals: 1.11" L x 0.7" Dia. Metal thread length: 0.4" Button size: 0.43" Dia. x 0.06 H Terminal size: 0.112" W x 0.25" L x 0.02" D
