Product Description

Price is for Piece.

Manufacturer Part Number: 822.53.394

20 Amp Series, Model #2012-160S, stainless steel

Item details

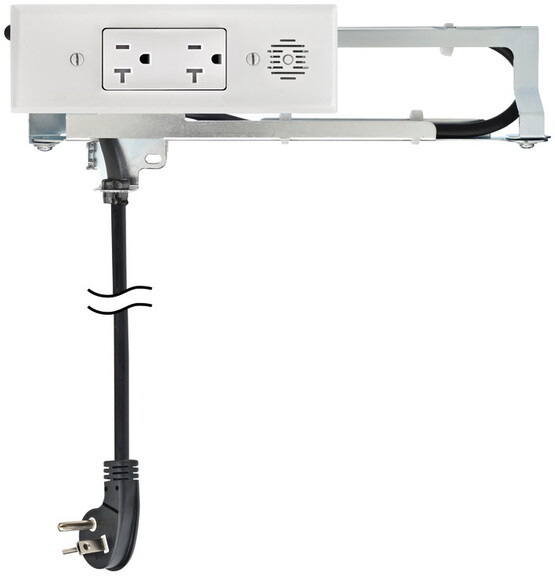

The Docking Drawer Blade and Blade Duo in-drawer outlets are rated for any charging or powering applications and are designed to fit into almost every cabinet. The 20 amp Docking Drawer Blade Duo and Blade are an all-in-one series which can charge AND power any type of device in even more compact spaces. All Docking Drawer Blade and Blade Duo feature an Interlock Thermostat that de-energizes the outlet if the surrounding temperature exceeds 120° F.
Keep your devices plugged in, ready to use and neatly stowed away
ETL Listed to UL962a


  • Electrical Specifications
    > 3' NEMA 5-20P power cord plugs into
    a NEMA 5-20R receptacle
    > Max. current: AC: 16 amps @ 120 VAC
    USB-A: 3.6 amps @ 5VDC
    Safety Features
    Interlock Thermostat - De-energizes outlet when the surrounding
    temperature exceeds 120°F
    Requires a 20 amp wall receptacle with T-shaped
    prongs for the NEMA 5-20P
    Features 3' long heavy-duty 12 AWG power cord
    with NEMA 5-20P plug and 20 amp receptacle



  • Cabinet Specifications
    > Fits shallow drawers:
    Minimum drawer box width (OD): 380 mm (15")
    Minimum interior drawer box height: 76 mm (3")
    > Fits tall drawers:
    Minimum drawer box width (OD): 330 mm (13")
    Minimum interior drawer box height: 101 mm (4")
    > Fits narrow drawers:
    Minimum drawer box width (OD): 228 mm (9")
    Minimum interior drawer box height: 101 mm (4")
    > Fits vertical drawers:
    Minimum drawer box width (OD): 203 mm (8")
    Minimum interior drawer box height: 330 mm (13")


Version



With 2 x AC outlets

Installation



Outlets can be mounted horizontally, vertically, left or right
Works with any type of side mount, undermount and soft closing slides

Material



Metal with Plastic and Electrical Components
