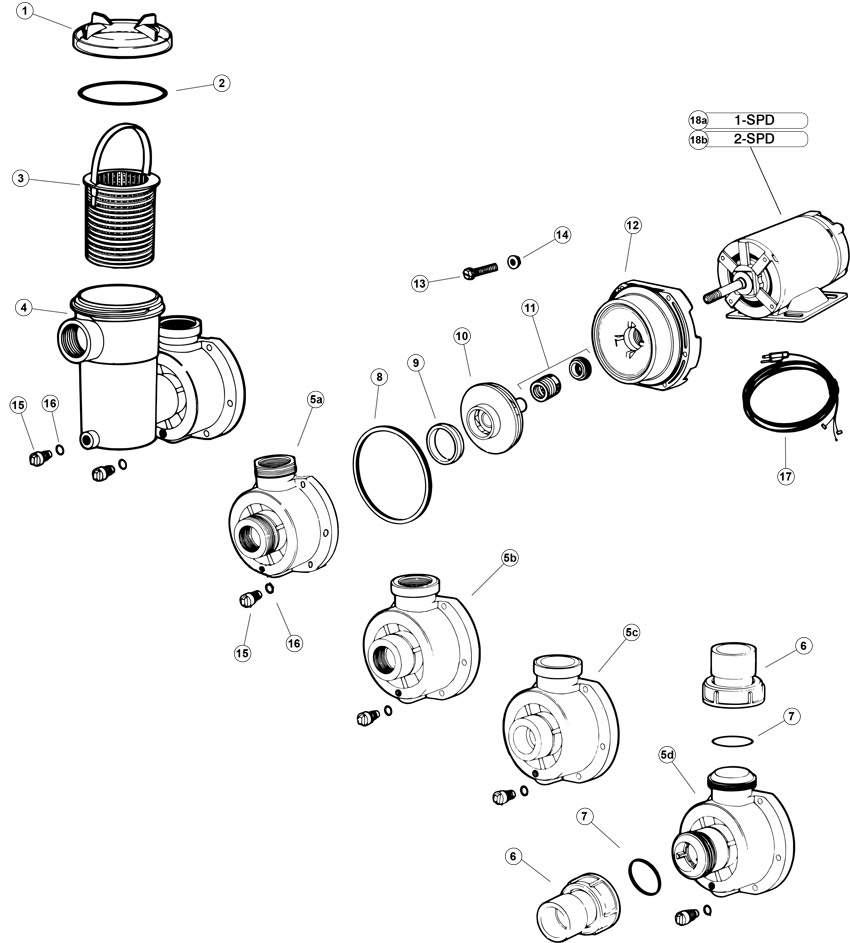

| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 1 | Discontinued | Trap Lid, Jacuzzi L, P, SLPH | 39-2524-08-R |
| 2 | 90-423-5353 | O-Ring, Buna-N, 5" ID, 3/16" Cross Section, Generic | |
| 3 | 35-105-1386 | Basket, Pump, OEM Carvin L P PC EP SLPH SLTPH | 16-0729-02-R |
| 4 | 35-105-1955 | Trap/Pump Body, Carvin L, L3, LH, LR | 24-0403-02-R |
| 5a | 35-105-1905 | Volute, Carvin LCM, with Plug | 03-0837-06-R |
| 5b | Discontinued | Volute, Jacuzzi LC, with plug, pre-7/89 | |
| 5c | Discontinued | Volute, Jacuzzi LC, with plug, pre-12/90 | |
| 5d | Discontinued | Volute, Jacuzzi LC, with Plug | 03-0833-00-R |
| 6 | 89-105-1506 | Pump Union, WW Jacuzzi J, 1-1/2"s x 2"spg, w/O-Ring/Lockring | 400-2160 |
| 7 | 90-423-5228 | O-Ring, 2-1/4" ID, 1/8" Cross Section, Generic | |
| 8 | Discontinued | O-Ring, Jacuzzi CFR/DVK/L, Trap Lid/Volute, O-464 | 47-0258-53-R |
| 9 | 35-105-1080 | Wear Ring, Carvin, Various Pumps, 0.5thp-3.0thp, All Dates | 10-1462-07-R |
| 10 | 35-105-1915 | Impeller, Carvin LC/SharkJet, 0.5/0.75 Horsepower | 05-3760-09-R |
| 10 | 35-105-1920 | Impeller, Carvin LC/SharkJet, 0.75/1.0 Horsepower | 05-3759-02-R |
| 10 | 35-105-1925 | Impeller, Carvin LC, 1.0 Horsepower | 05-3821-06-R |
| 10 | 35-105-1930 | Impeller, Carvin LC/SharkJet, 1.5/2.0 Horsepower | 05-3853-07-R |
| 11 | 35-423-1019 | Shaft Seal, 5/8" Shaft , Viton 200 | 200V |
| 11 | 35-423-1020 | Shaft Seal, 200, 5/8" Shaft, Buna | 200 |
| 11 | 35-423-1022 | Shaft Seal, PS-1901, 5/8" Shaft, Silicon Carbide PS-200 | PS-1901 |
| 11 | 35-426-1019US | Shaft Seal, 5/8" Shaft , Viton 200, US Seal | PS-200V-CMS |
| 11 | 35-426-1020US | Shaft Seal, 200, 5/8" Shaft, Buna, US Seal | PS-200 |
| 12 | 35-105-1940 | Seal Plate, Carvin L, LH, LR | 02-1388-08-R |
| 13 | 35-105-1945 | Bolt, Carvin, 10-24 x 1-1/4", Seal Plate, Quantity 6 | 14222301R6 |
| 14 | Discontinued | Nut, Carvin, 10-24, Seal Plate, Quantity 6 | 14-3971-03-R |
| 15 | Discontinued | Drain Plug, Jacuzzi, with O-Ring | 31-1609-06-R |
| 16 | 90-423-7112 | O-Ring, 1/2" ID, 3/32" Cross Section, Generic | |
| 17 | 35-105-1447 | Cord, Carvin LR, L, 6 foot | 23-4857-09-R |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 18a | 35-126-1005 | Motor, Century, 0.75 Horsepower, 115v, 1 Speed, 48 Frame | BN24V1 |
| 18a | Discontinued | Motor, Century/WW, 0.75hp, 115v, 1-Speed, 48YFr, 60Hz | BN24V1 |
| 18a | 35-126-1010 | Motor, Century, 1.0 Horsepower, 115v, 1 Speed, 48 Frame | BN25V1 |
| 18a | Discontinued | Motor, Century/WW, 1.0SPL, 115v, 1-Speed, 48 Frame | BN25 |
| 18a | Discontinued | Motor, Century, 1.5 Horsepower, 115v, 1 Speed, 48 Frame | BV35 |
| 18a | 35-126-1020 | Motor, Century, 1.5 Horsepower, 115v/230v, 1 Speed, 48 Frame | BN35V1 |
| 18a | Discontinued | Motor, Century/WW, 1.5hp, 115v/230v, 1-Speed, 48 Frame | BN35V1 |
| 18a | 35-126-1025 | Motor, Century, 2.0 Horsepower, 115v/230v, 1 Speed, 48 Frame | BN40SS |
| 18a | Discontinued | Motor, Century/WW, 2.0hp, 115v/230v, 1-Speed, 48 Frame | BN40 |
| 18a | Discontinued | Motor, US Motor/WW, 0.75 SPL, 115v, 1-Speed, 48 Frame | EZBN24 |
| 18a | Discontinued | Motor, US Motor/WW, 1.0SPL, 115v, 1-Speed, 48 Frame | EZBN25 |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 18b | 35-126-1105 | Motor, Century, 0.75 Horsepower, 115v, 2 Speed, 48 Frame | BN36 |
| 18b | Discontinued | Motor, Century/WW, 0.75hp, 115v, 2-Speed, 48 Frame | BN36 |
| 18b | 35-126-1110 | Motor, Century, 1.0 Horsepower, 115v, 2 Speed, 48 Frame | BN37V1 |
| 18b | Discontinued | Motor, Century/WW, 1.0hp, 115v, 2-Speed, 48 Frame | BN37V1 |
| 18b | 35-126-1115 | Motor, Century, 1.5 Horsepower, 115v, 2 Speed, 48 Frame | BN50V1 |
| 18b | Discontinued | Motor, Century/WW, 1.5hp, 115v, 2-Speed, 48 Frame | BN50V1 |
| 18b | 35-126-1116 | Motor, Century, 1.5 Horsepower, 230v, 2 Speed, 48 Frame | BN34V1 |
| 18b | Discontinued | Motor, Century/WW, 1.5hp, 230v, 2-Speed, 48 Frame | BN34V1 |
| 18b | 35-126-1120 | Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 Frame | BN51 |
| 18b | Discontinued | Motor, Century/WW, 2.0hp, 230v, 2-Speed, 48 Frame | BN51 |
| 18b | Discontinued | Motor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 Frame | EZBN50 |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| Discontinued | Go-Kit 59,Jacuzzi SLPH,SLTPH,LCU,LTCU,ULCU,LCM,L3 & L25 | GO-KIT 59 |
