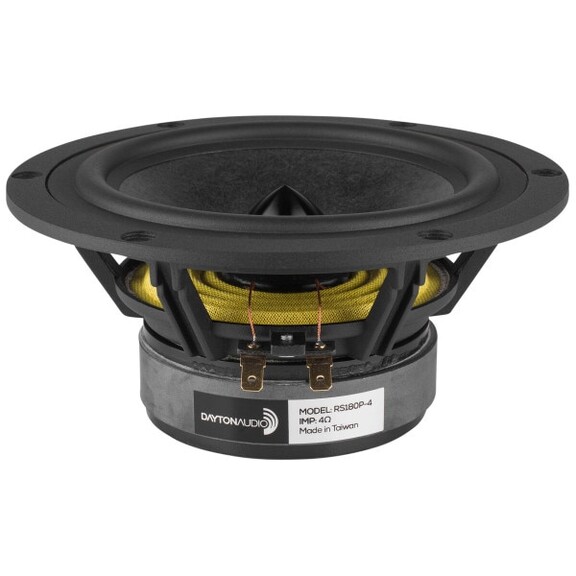

Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm
Brand Dayton Audio
Shop more from PEX
* Click "Add to Cart" to calculate shipping and delivery time.
Pricing Note
Product Description
Manufacturer Part Number: RS180P-4
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
Key Features:
Overview:
Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Specification:
Manuals & Resources:
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
Key Features:
- Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
- Perfect as a woofer, midwoofer, or dedicated midrange driver
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
- 6 mm of Xmax and 88.2 dB sensitivity
Overview:
Dayton Audio RS180P-4 7" Reference Paper Woofer 4 Ohm
The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Specification:
Product Details | |
|---|---|
| Brand | Dayton Audio |
| Model | RS180P-4 |
| Part Number | 295-375 |
| UPC | 848791001444 |
| Unit of Measure | Each |
| Weight | 4 |
Product Specifications | |
|---|---|
| Nominal Diameter | 7" |
| Bolt Circle Diameter | 6.63 |
| Power Handling (RMS) | 60 Watts |
| Power Handling (MAX) | 90 Watts |
| Impedance | 4Ω |
| Frequency Response | 35 to 8,000Hz |
| Sensitivity | 90.8dB 2.83V/1m |
| Voice Coil Diameter | 1.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 37.7Hz |
| DC Resistance (Re) | 3.1Ω |
| Voice Coil Inductance (Le) | 0.47mH |
| Mechanical Q (Qms) | 1.98 |
| Electromagnetic Q (Qes) | 0.48 |
| Total Q (Qts) | 0.39 |
| Compliance Equivalent Volume (Vas) | 0.96ft³ |
| Mechanical Compliance of Suspension (Cms) | 1.21mm/N |
| BL Product (BL) | 5.03T·m |
| Diaphragm Mass Inc. Airload (Mms) | 14.8g |
| Maximum Linear Excursion (Xmax) | 6mm |
| Surface Area of Cone (Sd) | 126.7cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper / Kevlar |
| Surround Material | Rubber |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 7.11" |
| Baffle Cutout Diameter | 5.75" |
| Depth | 3.19" |
| # Mounting Holes | 6 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.27ft³ |
| Sealed F3 | 88Hz |
| Vented Volume | 0.75ft³ |
| Vented F3 | 42Hz |
