Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer
Brand Dayton Audio
Shop more from PEX
* Click "Add to Cart" to calculate shipping and delivery time.
Pricing Note
Product Description
Manufacturer Part Number: D1075T
For more than a decade, the D1075T horn driver from Dayton Audio has been a workhorse for those in the know. A stout, weather resistant design makes it an ideal public address driver for outdoor stadiums, sports fields and complexes, while superior sound quality makes it a welcome addition to any PA system.
Key Features:
Overview:
Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer
Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer
Perfect for PA and tough as a two-dollar steak
Contractors, installers, and other audio professionals appreciate the rugged durability that's evident in the D1057T's materials and engineering. It uses a phenolic-impregnated cloth diaphragm (field replaceable, by the way) to provide crisp, articulate sound. A cast aluminum faceplate, gasketed plastic rear housing, and stainless steel hardware ensure long-term reliability, indoors or out. That's important when your customer is counting on you to do the job right. And we all know, when the customer feels you've done the job right, they tell their friends. So next time you get a call to bid on an outdoor stadium or sports facility, do your customer a solid, and use the D1075T.
Key Specs:
The Dayton Audio DA1075T has a response that lends itself well for paging and PA use due to its efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the DA1075T is easily manageable for versatile, simple system designing!
Integrated 70V Transformer
The Dayton Audio D1075T is ready to install anywhere! With its' built-in 70V transformer, selectable taps allow you to customize the output of each speaker to suite a multitude of locations and circumstances. Use the higher rated taps for tall vaulted ceilings or anywhere you need high SPL requirements, the lower rated taps are available for use with setups that have lower SPL requirements such as walking paths or information booths!
Salt-Spray Tested
Contractors, installers, and other audio professionals can feel confident in the D1075T's materials and engineering. A cast aluminum faceplate, gasketed rear housing, and stainless-steel hardware ensure long-term reliability, indoors or out. Dayton Audio has even gone a step further in the development of the D1075T with long-term environmental testing, ensuring the longevity and durability of your investment.
Additional Resources
We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.
We've made it easier to find the woofer that fits your specific application, whatever that may be. This guide contains every woofer we carry, along with suggested optimum box dimensions, countless driver parameters, and more. All of this is contained in an easy-to-use, sortable guide to help you choose the perfect woofer.
Easily replace damaged or worn out drivers in you speaker system to bring them back to their former glory. The Woofer Replacement Tools helps you determine the correct woofer to replace your current driver. This easy to use tool will get your speaker system back up and running quickly.
Build your speaker building knowledge with a vast glossary of all speaker and speaker building terminology you will encounter.
To answer some of the questions you may have concerning loudspeaker design that takes you step by step through the build.
Through out the years, we have collected the best resources into the Speaker Building Bible. Click the link below to do a deep dive into speaker building.
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Specification:
Manuals & Resources:
For more than a decade, the D1075T horn driver from Dayton Audio has been a workhorse for those in the know. A stout, weather resistant design makes it an ideal public address driver for outdoor stadiums, sports fields and complexes, while superior sound quality makes it a welcome addition to any PA system.
Key Features:
- 75 watts RMS power handling capacity
- Durable phenolic-impregnated diaphragm
- Low distortion, high output
- Multiple transformer taps match driver to any system
- Five-year warranty
- Standard 1-3/8"-18 threaded mounting
- Vintage Leslie Speaker Horn Replacement
Overview:
Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer
Dayton Audio D1075T 75W PA Speaker Horn Driver with 70V Transformer
Perfect for PA and tough as a two-dollar steak
Contractors, installers, and other audio professionals appreciate the rugged durability that's evident in the D1057T's materials and engineering. It uses a phenolic-impregnated cloth diaphragm (field replaceable, by the way) to provide crisp, articulate sound. A cast aluminum faceplate, gasketed plastic rear housing, and stainless steel hardware ensure long-term reliability, indoors or out. That's important when your customer is counting on you to do the job right. And we all know, when the customer feels you've done the job right, they tell their friends. So next time you get a call to bid on an outdoor stadium or sports facility, do your customer a solid, and use the D1075T.
Key Specs:
- Exit Diameter: 1"
- Power Handling (RMS): 25W, 30W, 50W, 75W
- Impedance: 70v
- Frequency Response: 200 - 8000 Hz
- Sensitivity: 107 dB 1W/1m
- Voice Coil Diameter: 2"
- Voice Coil Material: Kapton / Copper

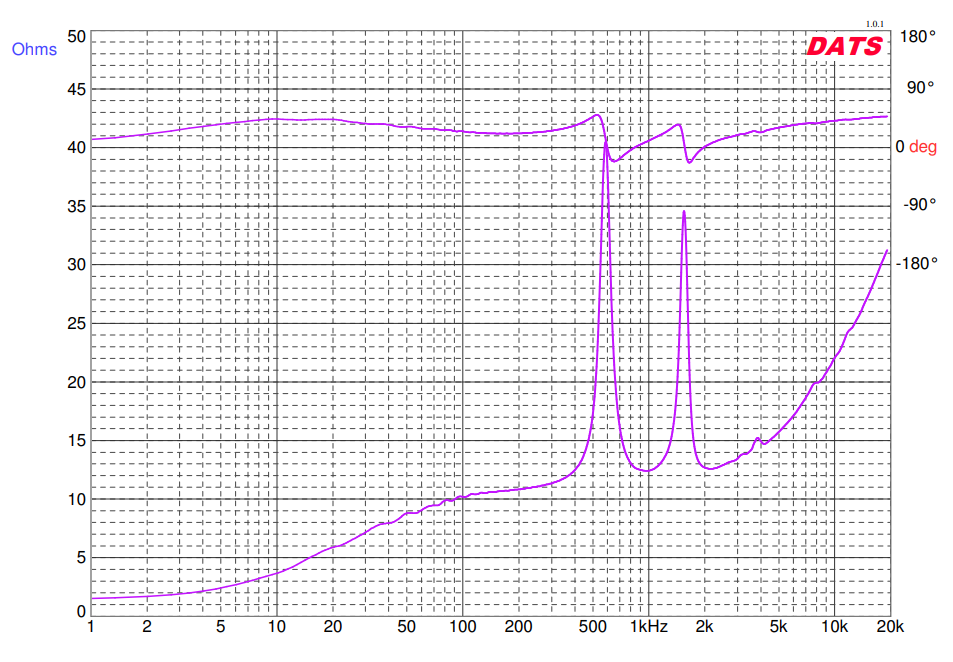

Frequency and Impedance Responses
The Dayton Audio DA1075T has a response that lends itself well for paging and PA use due to its efficiency in the frequency range of human voices and midrange detail of stringed instruments. The impedance curve of the DA1075T is easily manageable for versatile, simple system designing!

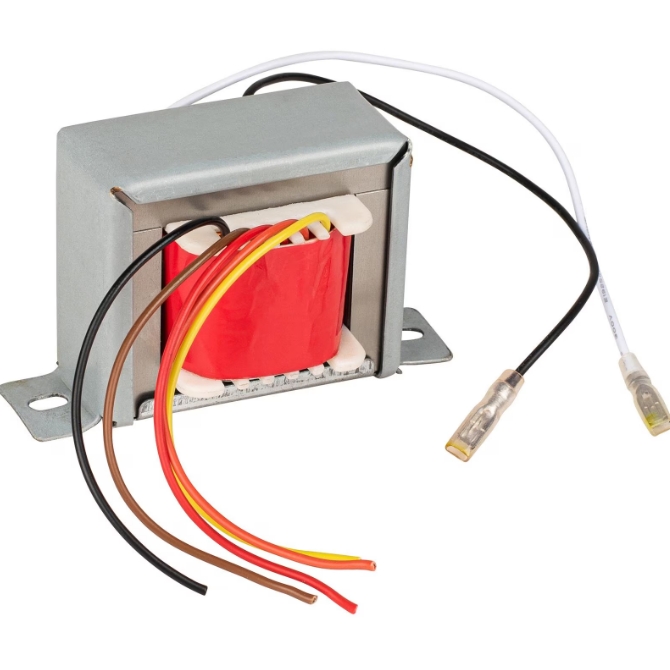

Integrated 70V Transformer
The Dayton Audio D1075T is ready to install anywhere! With its' built-in 70V transformer, selectable taps allow you to customize the output of each speaker to suite a multitude of locations and circumstances. Use the higher rated taps for tall vaulted ceilings or anywhere you need high SPL requirements, the lower rated taps are available for use with setups that have lower SPL requirements such as walking paths or information booths!
Salt-Spray Tested
Contractors, installers, and other audio professionals can feel confident in the D1075T's materials and engineering. A cast aluminum faceplate, gasketed rear housing, and stainless-steel hardware ensure long-term reliability, indoors or out. Dayton Audio has even gone a step further in the development of the D1075T with long-term environmental testing, ensuring the longevity and durability of your investment.
Additional Resources
We pride ourselves on being an authority in the speaker building and DIY community. With over 60 years of combined engineering experience, our team of engineers is here to help with your build. Below are some useful tools to get you started.
Woofer Selection Guide
We've made it easier to find the woofer that fits your specific application, whatever that may be. This guide contains every woofer we carry, along with suggested optimum box dimensions, countless driver parameters, and more. All of this is contained in an easy-to-use, sortable guide to help you choose the perfect woofer.
Woofer Replacement Tool
Easily replace damaged or worn out drivers in you speaker system to bring them back to their former glory. The Woofer Replacement Tools helps you determine the correct woofer to replace your current driver. This easy to use tool will get your speaker system back up and running quickly.
Speaker Building Glossary
Build your speaker building knowledge with a vast glossary of all speaker and speaker building terminology you will encounter.
Build Your Own Speaker
To answer some of the questions you may have concerning loudspeaker design that takes you step by step through the build.
THE Definitive Collection...The Speaker Building Bible
Through out the years, we have collected the best resources into the Speaker Building Bible. Click the link below to do a deep dive into speaker building.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Specification:
Product Details | |
|---|---|
| Brand | Dayton Audio |
| Model | D1075T |
| Part Number | 300-190 |
| UPC | 844632008009 |
| Unit of Measure | Each |
| Weight | 6.3001 |
Product Specifications | |
|---|---|
| Diaphragm Material | Kapton / Polyimide |
| Exit Diameter | 1" |

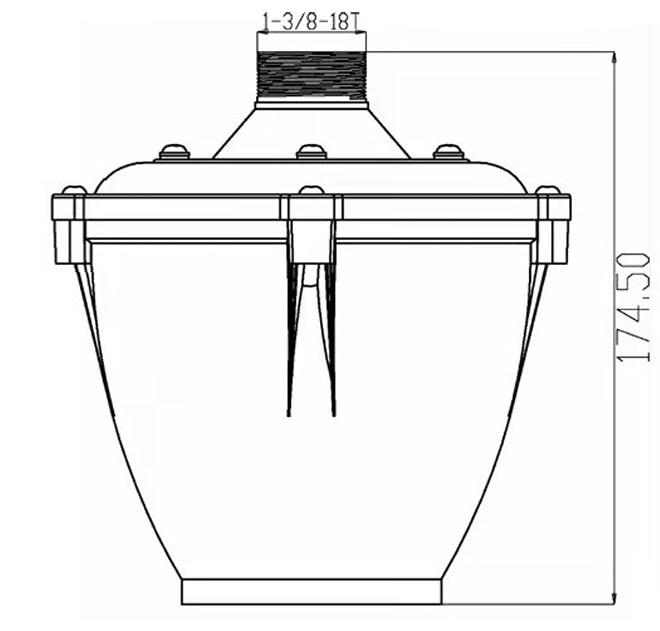

| Mounting Type | 1-3/8"-18 TPI |
| Power Handling (RMS) | 75 Watts |
Manuals & Resources:
