HOR Waterway Plastics 415 5001 Union Nut Waterway Clearwater/Workman 2" P15322765HOR-14-270-1026 https://cdnimages.opentip.com/full/HOR/HOR-14-270-1026.jpg Waterway Plastics 415 5001 Union Nut Waterway Clearwater/Workman 2" Union Nut, Waterway Clearwater/Workman, 2\"Below are the exploded diagrams relevant to this product:Pool & Spa Supplies >> Filters >> DE Filter, Waterway, Clearwater >> Cartridge Filter, Waterway, Clearwater >> Waterway Workman 48-Frame Above Ground PumpWaterway Workman 48-Frame Above Ground PumpNote: Faceplates for Waterway Workman, Executive 48 and 56 Frame wet ends now require 2 o-ringsPartsKeySKUDescriptionManf. #1a35-270-1302Trap Assy,WW,6\",2\"Pump Union x 2\"mbt,Cam & Ramp Lid,OldStyle310-66001a35-270-1307Trap Assy, WW,2\"Unionx1-1/2\" mbt/fpt,Cam & Ramp Lid,OldStyle310-65001b35-270-1300Trap Assy, WW,6\",2\"Pump Union x 2\"mbt,2 Pcs Lid,New Version310-66001b35-270-1308Trap Assy, WW,6\",2\"Union x 1-1/2\"mbt/fpt,New Version 2pc lid310-65002DiscontinuedClamp Ring, Waterway HiFlo, Trap Lid718-47503DiscontinuedTrap Lid, Waterway Hi-Flo319-32004aDiscontinuedTrap Lid, Waterway, Easy Lock319-32604bDiscontinuedTrap Lid, Waterway Hi-Flo/Mustang/Workhorse/Workman319-4100590-423-5436O-Ring, Buna-N, 5-7/8\" ID, 1/4\" Cross Section, Generic635-270-1552Basket, Pump, OEM Waterway Workman319-3210635-270-1828Basket, Pump, OEM Waterway 6\" Trap319-32307aDiscontinuedTrap Body, Waterway Workman319-53007b35-270-1830Trap Body, Waterway, 2\"mbt/2\"fpt x 2\" flange319-21807b35-270-1832Trap Body, Waterway, 1-1/2\"mbt/1-1/2\"fpt x 2\" flange319-2170835-270-1480Drain Plug, Waterway715-1201835-270-2083Drain Plug, Waterway HiFlo, 3/8\", with O-Ring760-1201935-270-1705O-Ring, Waterway, Drain Plug/Valve Stem805-0112990-423-7112O-Ring, 1/2\" ID, 3/32\" Cross Section, Generic1089-270-1033Tailpiece, 1-1/2\" Female Pipe Thread417-51301189-270-1031Tailpiece, Waterway, 2\" Slip417-51211214-270-1026Union Nut, Waterway Clearwater/Workman, 2\"415-50011390-423-1006Gasket, Waterway, 2\" Union, Flat711-40101435-270-1554Screw, Waterway Workman, 8 x 3/4\"819-10401535-270-1556Split Nut, Waterway Workman, Trap Body, with Screw400-53011589-395-1000Split Nut, 2\", Pump Union blk01211090201635-270-1487Screw, WW E-Series/Hi-Flo/Viper/Workman/EX2, 8-32 x 5/8\"819-111017DiscontinuedGasket, Waterway Workman, Trap Body, 2-5/16\"ID, 3\"OD711-53001835-270-1799Faceplate, Waterway Executive/Workman, 48 Frame/56 Frame, 2\"311-12201935-270-1815O-Ring, Waterway Executive 48/56fr, Volute, O-4791990-423-5261O-Ring, 6-3/4\" ID, 1/8\" Cross Section, Generic2035-270-1817Wear Ring, Waterway Executive 48/56fr, 1.0-3.0hp319-138021DiscontinuedImpeller, Waterway Workman, 0.75hp310-102021DiscontinuedImpeller, Waterway Workman, 1.0 Horsepower310-103021DiscontinuedImpeller, Waterway Workman, 1.5 Horsepower310-104021DiscontinuedImpeller, Waterway Workman, 2.0 Horsepower310-105021DiscontinuedImpeller, Waterway Workman, 3.0 Horsepower310-106022DiscontinuedNut, Waterway Workman, Impeller820-41502335-270-1578Shaft Seal, Waterway, PS-1000, 5/8\" Shaft, Viton319-3100B2335-423-1048Shaft Seal, PS-3865, 5/8\" Shaft, Viton PS-1000PS-3865R2335-423-1060Shaft Seal, 1000, 5/8\" Shaft, Buna10002335-423-1061Shaft Seal, PS-1905, 5/8\" Shaft, Silicon Carbide PS-1000PS-19052335-423-1096Shaft Seal, PS-961, 5/8\" Shaft, Buna, Carbon FacePS-9612335-426-1060USShaft Seal, 1000, 5/8\" Shaft, Buna, US SealPS-100024DiscontinuedVolute, WW Exec 48 Frame, w/Inserts - Use Complete Wet End315-12402535-270-1475Water Slinger, Waterway Hi-Flo/Mustang/Executive313-14002635-270-1576Screw, Waterway Workman, 12 x 3/4\"819-90012735-270-1574Washer, Waterway Workman/SVL56, Pump Stand820-00182859-270-1003Pump Equipment Base , Waterway, 15.5\" x 8.5\" x 1\"672-106089-270-1166Pump Union, 2\" Female Buttress Thread x 2\" Slip0602-20KeySKUDescriptionManf. #29a35-126-1005Motor, Century, 0.75 Horsepower, 115v, 1 Speed, 48 FrameBN24V129aDiscontinuedMotor, Century/WW, 0.75hp, 115v, 1-Speed, 48YFr, 60HzBN24V129a35-126-1010Motor, Century, 1.0 Horsepower, 115v, 1 Speed, 48 FrameBN25V129aDiscontinuedMotor, Century/WW, 1.0SPL, 115v, 1-Speed, 48 FrameBN2529a35-126-1020Motor, Century, 1.5 Horsepower, 115v/230v, 1 Speed, 48 FrameBN35V129aDiscontinuedMotor, Century/WW, 1.5hp, 115v/230v, 1-Speed, 48 FrameBN35V129a35-126-1025Motor, Century, 2.0 Horsepower, 115v/230v, 1 Speed, 48 FrameBN40SS29aDiscontinuedMotor, Century/WW, 2.0hp, 115v/230v, 1-Speed, 48 FrameBN4029aDiscontinuedMotor, US Motor/WW, 0.75 SPL, 115v, 1-Speed, 48 FrameEZBN2429aDiscontinuedMotor, US Motor/WW, 1.0SPL, 115v, 1-Speed, 48 FrameEZBN25KeySKUDescriptionManf. #29b35-126-1105Motor, Century, 0.75 Horsepower, 115v, 2 Speed, 48 FrameBN3629bDiscontinuedMotor, Century/WW, 0.75hp, 115v, 2-Speed, 48 FrameBN3629b35-126-1110Motor, Century, 1.0 Horsepower, 115v, 2 Speed, 48 FrameBN37V129bDiscontinuedMotor, Century/WW, 1.0hp, 115v, 2-Speed, 48 FrameBN37V129b35-126-1115Motor, Century, 1.5 Horsepower, 115v, 2 Speed, 48 FrameBN50V129bDiscontinuedMotor, Century/WW, 1.5hp, 115v, 2-Speed, 48 FrameBN50V129b35-126-1116Motor, Century, 1.5 Horsepower, 230v, 2 Speed, 48 FrameBN34V129bDiscontinuedMotor, Century/WW, 1.5hp, 230v, 2-Speed, 48 FrameBN34V129b35-126-1119Motor, Century, 3.0 SPL, 230v, 2 Speed, 48 Frame, EEBN6129bDiscontinuedMotor, Century/WW, 3.0SPL, 230v, 2-Speed, 48 FrameBN6129b35-126-1120Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 FrameBN5129bDiscontinuedMotor, Century/WW, 2.0hp, 230v, 2-Speed, 48 FrameBN5129b35-126-1121Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 FrameBN6229bDiscontinuedMotor, Century/WW, 4.5hp, 230v, 2-Speed, 48 FrameBN6229b35-126-1123Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 FrameSDS130229bDiscontinuedMotor, US Motor/WW, 1.0SPL, 115v, 2-Speed, 48 FrameEZBN3729bDiscontinuedMotor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 FrameEZBN5029bDiscontinuedMotor, US Motors/WW, 3.0hp, 230v, 2-Speed, 48 FrameSPH30FL2S29bDiscontinuedMotor, US Motor/WW, 4.5hp, 230v, 2 Speed, 48 FrameSPH30FL2SSPLKeySKUDescriptionManf. #99-615-1000Tool, Klorkinator, Lid/Cover Removal ToolKW-212 15322765 0.3000lbs 0.00 0.00 0.00

Waterway Plastics

2.6200 2026-12-24 18 In Stock Waterway Plastics 415 5001 Union Nut Waterway Clearwater/Workman 2"

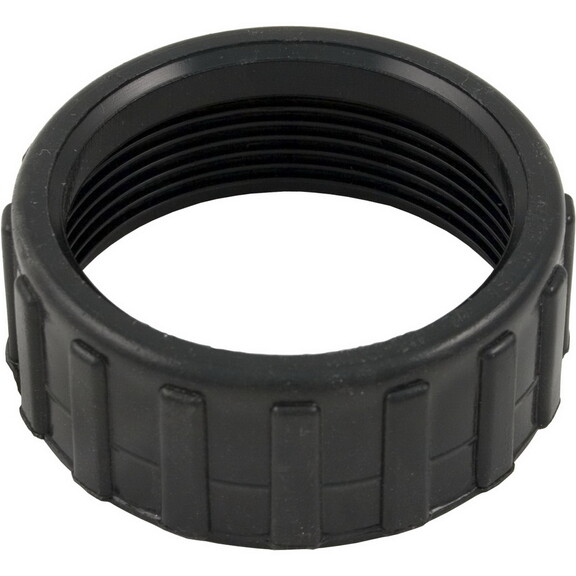

Waterway Plastics 415-5001 Union Nut, Waterway Clearwater/Workman, 2"

Brand Waterway Plastics

Shop more from HOR

Shop by themes: Filters

* Click "Add to Cart" to calculate shipping and delivery time.

Share & Earn 10% Cash Back Best Price in Bulk

Best Price in Bulk!

Because we are a major distributor for some products, we price very aggressively by sacrificing profit margin whenever we sell in bulk. The philosophy to offer quality products with little mark up has created unmatched customer loyalty for some successful membership based stores. Unlike those wholesale to public membership clubs, we do not charge any membership fee. Some merchants offer FREE shipping, but when you buy quantity 10, you pay 10 times total. Essentially, you are paying 10 times on shipping. We don't think that is fair to you. Why? Most of the time, shipping a 10 lb parcel does not cost 10 times of a 1 lb parcel.

Here is an example:

Opentip	Others
Product Price: $8.00	Product Price: $20.00
Shipping for quantity 1: $12.00	Shipping: FREE
Quantity: 10	Quantity: 10
Total Shipping for quantity 10: $18.00	Total Shipping: FREE
Subtotal: $98.00 Saving: $102.00 (51%)	Subtotal: $200.00

Don't be shy. If you discover any competitor outselling us in a particular product, whenever you purchase in large quantity, please bring it to our attention. Most of the time, we will match or beat their price, and give you a credit. If we lose to a competitor, it is our shame. We then know we need to work harder in sourcing to create values for you.

* Price comparison must be based on comparable brands or models and in bulk quantity purchase.

Optional related products

Waterway Plastics 415-6001 Union Nut, Waterway Crystal Water, 2-1/2"

$5.85

Waterway Plastics 415-6000 Union Nut 2-1/2"

$5.16

Waterway Plastics 415-5000 Union Nut, Mo-Flo, 2" Female Buttress...

$2.48

Waterway 415-6000B Union Nut 2 1/2In

$10.97

Waterway Plastics 415-4001 Union Nut, Waterway, 1-1/2", Black

$2.66

Waterway 415-5000B Union Nut 2In

$5.66

Waterway Plastics 711-4000 Gasket, 1-1/2" Heater Union, Flat

$0.70

Magic Plastics 0121108015 Split Nut, 1-1/2" Buttress Thread, Heater...

$2.29

Waterway Plastics 415-2000 1" Union Nut

$1.44

Waterway Plastics 415-5090 2" Union Nut, Self-Aligning

$6.38

Waterway Plastics 505-3020 Split Nut, Waterway Clearwater, w/Thread...

$1.49

Waterway Plastics 400-6021 2 1/2"Union Nut W/2 1/2"S Tailpce W/Gasket

$8.17

Waterway Plastics 400-9631-2B Union, Ww Champion, 2"Mbt X 2"S, Black,...

$8.68

Waterway 400-4060 1-1/2" Union Nut w/ 1-1/2" S Tailpiece

$3.79

Customer also purchased

Brass Fittings Plastic Hose Barb Connector

$0.84

Pricing Note

Free Shipping Promotion: Buy more items from the same series, product code beginning with HOR-, and you can get free shipping for an order of over $650.00 consisting of only HOR- series products.

Product Description

Union Nut, Waterway Clearwater/Workman, 2"

Below are the exploded diagrams relevant to this product:

Pool & Spa Supplies
>> Filters
>> DE Filter, Waterway, Clearwater
>> Cartridge Filter, Waterway, Clearwater
>> Waterway Workman 48-Frame Above Ground Pump

Waterway Workman 48-Frame Above Ground Pump

Note: Faceplates for Waterway Workman, Executive 48 and 56 Frame wet ends now require 2 o-rings

Parts

Key

SKU

Description

Manf. #

35-270-1302

Trap Assy,WW,6",2"Pump Union x 2"mbt,Cam & Ramp Lid,OldStyle

310-6600

35-270-1307

Trap Assy, WW,2"Unionx1-1/2" mbt/fpt,Cam & Ramp Lid,OldStyle

310-6500

35-270-1300

Trap Assy, WW,6",2"Pump Union x 2"mbt,2 Pcs Lid,New Version

310-6600

35-270-1308

Trap Assy, WW,6",2"Union x 1-1/2"mbt/fpt,New Version 2pc lid

310-6500

Discontinued

Clamp Ring, Waterway HiFlo, Trap Lid

718-4750

Discontinued

Trap Lid, Waterway Hi-Flo

319-3200

Discontinued

Trap Lid, Waterway, Easy Lock

319-3260

Discontinued

Trap Lid, Waterway Hi-Flo/Mustang/Workhorse/Workman

319-4100

90-423-5436

O-Ring, Buna-N, 5-7/8" ID, 1/4" Cross Section, Generic

35-270-1552

Basket, Pump, OEM Waterway Workman

319-3210

35-270-1828

Basket, Pump, OEM Waterway 6" Trap

319-3230

Discontinued

Trap Body, Waterway Workman

319-5300

35-270-1830

Trap Body, Waterway, 2"mbt/2"fpt x 2" flange

319-2180

35-270-1832

Trap Body, Waterway, 1-1/2"mbt/1-1/2"fpt x 2" flange

319-2170

35-270-1480

Drain Plug, Waterway

715-1201

35-270-2083

Drain Plug, Waterway HiFlo, 3/8", with O-Ring

760-1201

35-270-1705

O-Ring, Waterway, Drain Plug/Valve Stem

805-0112

90-423-7112

O-Ring, 1/2" ID, 3/32" Cross Section, Generic

89-270-1033

Tailpiece, 1-1/2" Female Pipe Thread

417-5130

89-270-1031

Tailpiece, Waterway, 2" Slip

417-5121

14-270-1026

Union Nut, Waterway Clearwater/Workman, 2"

415-5001

90-423-1006

Gasket, Waterway, 2" Union, Flat

711-4010

35-270-1554

Screw, Waterway Workman, 8 x 3/4"

819-1040

35-270-1556

Split Nut, Waterway Workman, Trap Body, with Screw

400-5301

89-395-1000

Split Nut, 2", Pump Union blk

0121109020

35-270-1487

Screw, WW E-Series/Hi-Flo/Viper/Workman/EX2, 8-32 x 5/8"

819-1110

Discontinued

Gasket, Waterway Workman, Trap Body, 2-5/16"ID, 3"OD

711-5300

35-270-1799

Faceplate, Waterway Executive/Workman, 48 Frame/56 Frame, 2"

311-1220

35-270-1815

O-Ring, Waterway Executive 48/56fr, Volute, O-479

90-423-5261

O-Ring, 6-3/4" ID, 1/8" Cross Section, Generic

35-270-1817

Wear Ring, Waterway Executive 48/56fr, 1.0-3.0hp

319-1380

Discontinued

Impeller, Waterway Workman, 0.75hp

310-1020

Discontinued

Impeller, Waterway Workman, 1.0 Horsepower

310-1030

Discontinued

Impeller, Waterway Workman, 1.5 Horsepower

310-1040

Discontinued

Impeller, Waterway Workman, 2.0 Horsepower

310-1050

Discontinued

Impeller, Waterway Workman, 3.0 Horsepower

310-1060

Discontinued

Nut, Waterway Workman, Impeller

820-4150

35-270-1578

Shaft Seal, Waterway, PS-1000, 5/8" Shaft, Viton

319-3100B

35-423-1048

Shaft Seal, PS-3865, 5/8" Shaft, Viton PS-1000

PS-3865R

35-423-1060

Shaft Seal, 1000, 5/8" Shaft, Buna

1000

35-423-1061

Shaft Seal, PS-1905, 5/8" Shaft, Silicon Carbide PS-1000

PS-1905

35-423-1096

Shaft Seal, PS-961, 5/8" Shaft, Buna, Carbon Face

PS-961

35-426-1060US

Shaft Seal, 1000, 5/8" Shaft, Buna, US Seal

PS-1000

Discontinued

Volute, WW Exec 48 Frame, w/Inserts - Use Complete Wet End

315-1240

35-270-1475

Water Slinger, Waterway Hi-Flo/Mustang/Executive

313-1400

35-270-1576

Screw, Waterway Workman, 12 x 3/4"

819-9001

35-270-1574

Washer, Waterway Workman/SVL56, Pump Stand

820-0018

59-270-1003

Pump Equipment Base , Waterway, 15.5" x 8.5" x 1"

672-1060

89-270-1166

Pump Union, 2" Female Buttress Thread x 2" Slip

0602-20

Key

SKU

Description

Manf. #

29a

35-126-1005

Motor, Century, 0.75 Horsepower, 115v, 1 Speed, 48 Frame

BN24V1

29a

Discontinued

Motor, Century/WW, 0.75hp, 115v, 1-Speed, 48YFr, 60Hz

BN24V1

29a

35-126-1010

Motor, Century, 1.0 Horsepower, 115v, 1 Speed, 48 Frame

BN25V1

29a

Discontinued

Motor, Century/WW, 1.0SPL, 115v, 1-Speed, 48 Frame

BN25

29a

35-126-1020

Motor, Century, 1.5 Horsepower, 115v/230v, 1 Speed, 48 Frame

BN35V1

29a

Discontinued

Motor, Century/WW, 1.5hp, 115v/230v, 1-Speed, 48 Frame

BN35V1

29a

35-126-1025

Motor, Century, 2.0 Horsepower, 115v/230v, 1 Speed, 48 Frame

BN40SS

29a

Discontinued

Motor, Century/WW, 2.0hp, 115v/230v, 1-Speed, 48 Frame

BN40

29a

Discontinued

Motor, US Motor/WW, 0.75 SPL, 115v, 1-Speed, 48 Frame

EZBN24

29a

Discontinued

Motor, US Motor/WW, 1.0SPL, 115v, 1-Speed, 48 Frame

EZBN25

Key

SKU

Description

Manf. #

29b

35-126-1105

Motor, Century, 0.75 Horsepower, 115v, 2 Speed, 48 Frame

BN36

29b

Discontinued

Motor, Century/WW, 0.75hp, 115v, 2-Speed, 48 Frame

BN36

29b

35-126-1110

Motor, Century, 1.0 Horsepower, 115v, 2 Speed, 48 Frame

BN37V1

29b

Discontinued

Motor, Century/WW, 1.0hp, 115v, 2-Speed, 48 Frame

BN37V1

29b

35-126-1115

Motor, Century, 1.5 Horsepower, 115v, 2 Speed, 48 Frame

BN50V1

29b

Discontinued

Motor, Century/WW, 1.5hp, 115v, 2-Speed, 48 Frame

BN50V1

29b

35-126-1116

Motor, Century, 1.5 Horsepower, 230v, 2 Speed, 48 Frame

BN34V1

29b

Discontinued

Motor, Century/WW, 1.5hp, 230v, 2-Speed, 48 Frame

BN34V1

29b

35-126-1119

Motor, Century, 3.0 SPL, 230v, 2 Speed, 48 Frame, EE

BN61

29b

Discontinued

Motor, Century/WW, 3.0SPL, 230v, 2-Speed, 48 Frame

BN61

29b

35-126-1120

Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 Frame

BN51

29b

Discontinued

Motor, Century/WW, 2.0hp, 230v, 2-Speed, 48 Frame

BN51

29b

35-126-1121

Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame

BN62

29b

Discontinued

Motor, Century/WW, 4.5hp, 230v, 2-Speed, 48 Frame

BN62

29b

35-126-1123

Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame

SDS1302

29b

Discontinued

Motor, US Motor/WW, 1.0SPL, 115v, 2-Speed, 48 Frame

EZBN37

29b

Discontinued

Motor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 Frame

EZBN50

29b

Discontinued

Motor, US Motors/WW, 3.0hp, 230v, 2-Speed, 48 Frame

SPH30FL2S

29b

Discontinued

Motor, US Motor/WW, 4.5hp, 230v, 2 Speed, 48 Frame

SPH30FL2SSPL

Key

SKU

Description

Manf. #

99-615-1000

Tool, Klorkinator, Lid/Cover Removal Tool

KW-212
