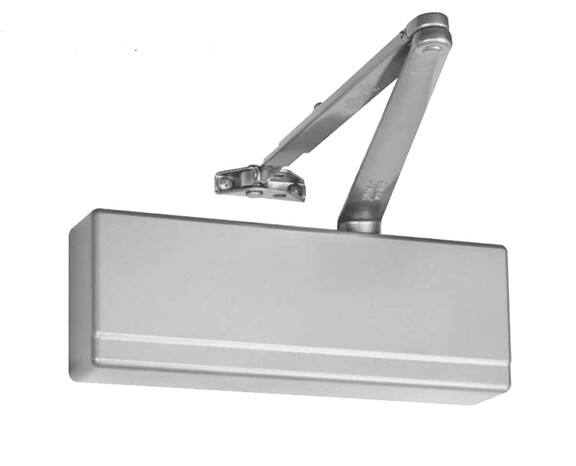

Sargent 281-PS TB 26D LH Surface Door Closer, Heavy Duty Parallel Arm with Positive Stop, Left Hand, Thru Bolts, Satin Chrome

Product Specs

Vendor : ASSA Abloy

Manufacturer : Sargent

SKU : 281-PS TB 26D LH

UID : SAR100281PSTB26DLH

Grade : Grade 1

Unit of Measure : Each

Installation : Commercial

Base Material : Brass or Bronze

Fire Rating : 3 Hours {A}

Limited Warranty : 25 Years

Finish

Finish
626/US26D

Finish Description : Satin Chrome

Finish Family : Matte Silver

Technical Specs

Type : Surface

Mounting Group : Hydraulic

Hold Open : No

Back Check : Adjustable

Cover : Metal

Cold Weather Fluid : Yes

Mounting Location : Push Side

Mounting Style : Parallel Arm

Handing : Left-Handed

Stop : Positive Stop

Delay : No

Through Bolts : Yes

Arm Type : Parallel Arm Dead Stop

Dimensions

Pack Qty : 1

Pack Width : 5"

Pack Height : 4.25"

Ship Weight : 14.1 lbs.

Pack Length : 15"

Pack Volume : 318.75 in?

281 Surface Door Closers

• ANSI/BHMA Grade 1 (A156.4)
• Meets Buy America Act
• Conforms to UL10C and UBC for positive pressure fire test
• 10 Year Warranty
• Versatile mounting applications permit standard, top jamb, parallel and track installations
• UL and CUL listed for use on fire doors
• Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
• Adjustable spring power allows 281 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
• One door closer body for all applications, non-handed
• ADA requirements are met with the 281 model at all applications (except track)
• Standard pressure relief valves for both opening and closing cycles protect the closer seals and all hardware from excessive force
• Heavy duty mounting bracket for easy installation of full size iron closer
• Retrofits existing Sargent 250 and 1250 Series Closer installations
• High impact non-corrosive plastic covers standard
• (Optional metal cover available)
• Cover secured by machine screws
• 1-1/2" diameter piston for superior door control
• All weather fluid allows closer to operate effectively in extreme heat and cold without readjustment
