CED Mullard Reissue T KT88 MUL KT88 Mullard Reissue Matched Vacuum Tube P13094240CED-T-KT88-MUL https://cdnimages.opentip.com/full/CED/CED-T-KT88-MUL.jpg Mullard Reissue T KT88 MUL KT88 Mullard Reissue Matched Vacuum Tube Manufacturer Part Number: T-KT88-MULPremium Octal beam Tetrode, an exact copy of the KT88 valve manufactured by Marconi-Osram for Marshall in the late 1960s and 70s. Powerful, balanced and detailed soundstage with full bass. Direct replacement for any 6550 types Excellent replacement output valve for the Marshall Major, retains the original sound Equally well suited for hifi Diameter52 mm Distortion factor18.0% Height117 mm Max. Cathode - heater voltage+300 V, -200 V Max. Filament voltage6.9 V Max. Heater current1.7 A Max. Plate Current125 mA Max. Power dissipation at the plate44 W Max. Power dissipation at the second grid6.6 W Max. Second grid current9.5 mA Min. Cathode - heater insulation resistance10.0 MΩ Min. Filament voltage5.7 V Min. Heater current1.5 A Min. Output Power14 W Min. Plate Current75 mA Min. Second grid current2 mA Min. Slope of characteristic8.2 mA/V Packaging Information Packaging DimensionsMatched Pair versionT-KT88-MUL-MP5.55 in. X 4.31 in. X 2.2 in. Matched Quad versionT-KT88-MUL-MQ5 in. X 4.5 in. X 4.5 in. Matched Sextet versionT-KT88-MUL-MS6.5 in. X 5.55 in. X 4.31 in. Single versionT-KT88-MUL5.5 in. X 2.25 in. X 2.25 in. Weight (Packaging)Matched Pair versionT-KT88-MUL-MP0.5556 lbs. Matched Quad versionT-KT88-MUL-MQ1.1112 lbs. Matched Sextet versionT-KT88-MUL-MS1.6668 lbs. Single versionT-KT88-MUL0.2601 lbs. T-KT88-MUL-MP - Matched Pair versionDiameter52 mm Distortion factor18.0% Height117 mm Max. Cathode - heater voltage+300 V, -200 V Max. Filament voltage6.9 V Max. Heater current1.7 A Max. Plate Current125 mA Max. Power dissipation at the plate44 W Max. Power dissipation at the second grid6.6 W Max. Second grid current9.5 mA Min. Cathode - heater insulation resistance10.0 MΩ Min. Filament voltage5.7 V Min. Heater current1.5 A Min. Output Power14 W Min. Plate Current75 mA Min. Second grid current2 mA Min. Slope of characteristic8.2 mA/V T-KT88-MUL-MQ - Matched Quad versionDiameter52 mm Distortion factor18.0% Height117 mm Max. Cathode - heater voltage+300 V, -200 V Max. Filament voltage6.9 V Max. Heater current1.7 A Max. Plate Current125 mA Max. Power dissipation at the plate44 W Max. Power dissipation at the second grid6.6 W Max. Second grid current9.5 mA Min. Cathode - heater insulation resistance10.0 MΩ Min. Filament voltage5.7 V Min. Heater current1.5 A Min. Output Power14 W Min. Plate Current75 mA Min. Second grid current2 mA Min. Slope of characteristic8.2 mA/V T-KT88-MUL-MS - Matched Sextet versionDiameter52 mm Distortion factor18.0% Height117 mm Max. Cathode - heater voltage+300 V, -200 V Max. Filament voltage6.9 V Max. Heater current1.7 A Max. Plate Current125 mA Max. Power dissipation at the plate44 W Max. Power dissipation at the second grid6.6 W Max. Second grid current9.5 mA Min. Cathode - heater insulation resistance10.0 MΩ Min. Filament voltage5.7 V Min. Heater current1.5 A Min. Output Power14 W Min. Plate Current75 mA Min. Second grid current2 mA Min. Slope of characteristic8.2 mA/V T-KT88-MUL - Single versionDiameter52 mm Distortion factor18.0% Height117 mm Max. Cathode - heater voltage+300 V, -200 V Max. Filament voltage6.9 V Max. Heater current1.7 A Max. Plate Current125 mA Max. Power dissipation at the plate44 W Max. Power dissipation at the second grid6.6 W Max. Second grid current9.5 mA Min. Cathode - heater insulation resistance10.0 MΩ Min. Filament voltage5.7 V Min. Heater current1.5 A Min. Output Power14 W Min. Plate Current75 mA Min. Second grid current2 mA Min. Slope of characteristic8.2 mA/V 13094240 0841358102592 9.4700lbs 0.00 0.00 0.00
Mullard Reissue
75.54 2027-07-19 In Stock

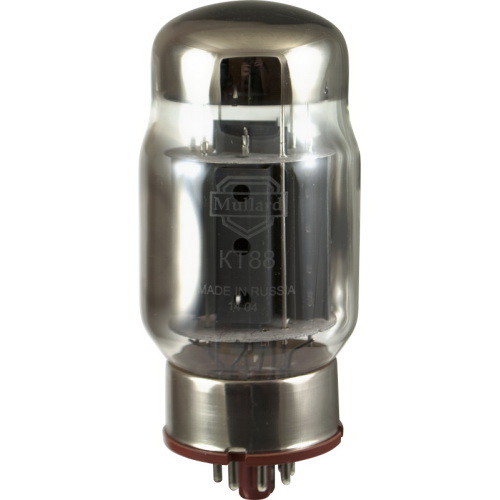

Mullard Reissue T-KT88-MUL KT88, Mullard Reissue, Matched Vacuum Tube

Shop more from CED

UPC: 0841358102592
SKU: CED-TKT88MUL
Price: $75.54
Single or matched:
Quantity:
In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk

You may also like

Product Description

Manufacturer Part Number: T-KT88-MUL

Premium Octal beam Tetrode, an exact copy of the KT88 valve manufactured by Marconi-Osram for Marshall in the late 1960s and 70s. Powerful, balanced and detailed soundstage with full bass.
  • Direct replacement for any 6550 types
  • Excellent replacement output valve for the Marshall Major, retains the original sound
  • Equally well suited for hifi






warning tips WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
