King Electric LPW1227-ECO-WD-R LPW ECO2S Electronic 2-Stage Smart Wall Heater, 1500-2750W / 120V, White Dove
Brand King Electric
Shop more from KAA
* Click "Add to Cart" to calculate shipping and delivery time.
Product Description
King redefines comfort. The LPW ECO2S® delivers maximum energy efficiency with automatic 2-stage heating, automatically uses the lowest wattage needed to heat the room. In a cold room it utilizes full power to heat the room quickly. Once the desired temperature is achieved, the heater automatically reduces the wattage to maintain the room temperature and save energy.
With the ECO2S Remote Temperature Sensor, your ECO2S heater knows exactly where the room’s cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it.
LPW ECO2S includes both fan only and timer mode options, as well as a remote control for simple operation and a Display Lock Feature for high traffic areas. Now Available in 4 design colors to match any decor: White Dove, Oiled Bronze, Satin Nickel and Almondine. King's exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area's specific heating requirements, up to 4500W. An ideal choice for both residential and commercial applications. Now That’s Smart!
Features:
ECO2S Works Smarter Not Harder.
King redefines comfort with the smart series LPW ECO2S. Combining a sleek and modern architectural design with the unparalleled performance, energy efficiency and user control of the ECO2S 2-stage electronic controller with remote. The LPW ECO2S delivers maximum energy efficiency with automatic 2-stage heating, automatically uses the lowest wattage needed to heat the room. Includes both summer fan only and timer modes for year round comfort, as well as a remote control for simple operation.
Now That’s Smart!
Let's face it, most rooms have cold spots and don't ever seem to maintain an even temperature throughout. With the ECO2S Temperature Sensor, your ECO2S heater knows exactly where that cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it. Also available is the optional accessory EC02S-5V-PWRSPLY wall adapter that allows the sensor to be plugged into a wall outlet for power.
ECO2S is powerful enough to prevent tampering of the settings in high traffic areas. Simply set the Display Lock mode and it deactivates the button on the display, while the remote control is still functional for the facilities management staff.
You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the architecture around us.
White Dove – Almondine – Satin Nickel – Oiled Bronze
King's exclusive Pic-A-Watt elements mean the heater can easily be tailored to a room's specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It's easy as unplugging a wire to select the wattage during installation.
Engineering Specs: Contractor shall supply and install LPW-ECO2S Series in-wall mounted forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.
Motor: Heavy-duty, cast iron, unit bearing, permanently lubricated with 20cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM. 15 ft Air Throw.
ECO2S Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters. The control voltage is equal to the line voltage.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
ECO2S Remote Temperature Sensor: Wireless remote temperature sensing for balanced heating at the coldest spot in the room. 2.4G wireless protocol. Includes wall mounting bracket.
Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire, embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to six (6) possible wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be accepted.
Thermal Overload: Heaters shall be equipped with King's patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.
Wall-box: 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4"clearance to floors and 6" to sidewalls. Zero clearance to combustibles in the wall. Recommended 10" clearance to floors and 16" to sidewalls.
Grill: The grill shall be a louvered, one-piece curved front design with rounded edges on all four sides. 20 gauge steel finished in a gloss white, powder-coated paint.
Approvals: cULus (E41422)
• dimensional data:
• Downloads:
New Product Release
Catalog Page
Designer Colors
Installation
Surface Frame Instructions
Submittal
With the ECO2S Remote Temperature Sensor, your ECO2S heater knows exactly where the room’s cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it.
LPW ECO2S includes both fan only and timer mode options, as well as a remote control for simple operation and a Display Lock Feature for high traffic areas. Now Available in 4 design colors to match any decor: White Dove, Oiled Bronze, Satin Nickel and Almondine. King's exclusive dual Pic-A-Watt steel fin elements allow customers to select from a range of wattage options, tailoring the heater to an area's specific heating requirements, up to 4500W. An ideal choice for both residential and commercial applications. Now That’s Smart!
- Smart ECO2S® Energy-Saving Design
- 2-Stage Heating: Automatically Uses Lowest Wattage Needed
- Thermostat Temperature Range: 40℉ to 95℉
- Includes ECO2S Remote Temperature Sensor, Your ECO2S Heater Knows Exactly Where the Room's Cold Spot is & Works Smarter to Keep the Entire Room Comfortable. Just Place It On a Wall or Shelf & Get the Right Temperature, Right Where You Want It.
- Hand Held Remote Control & Wall Holder Included
- Auto Memory Feature: Returns Unit To Last Settings After Power Outage
- Pic-A-Watt® Element
- Multiple Wattage Options, to Tailor to a Room's Specific Heating Requirements
- Patented Smart Limit Protection®
- Long Life Unit Bearing Motor
- Timer & Summer Fan Only Modes
- Display Lock Feature For High Traffic Areas
- Bedroom "Environment" Feature, Turns Off The Display When Not In Use
- Available in 4 New Designer Finishes
- Optional Power Supply For ECO2S Temp Sensor # ECO2S-5V-PWRSPLY, Purchased Separately.
- Proudly Made in the USA with U.S. & Global Materials
- 5-Year Limited Warranty
Features:

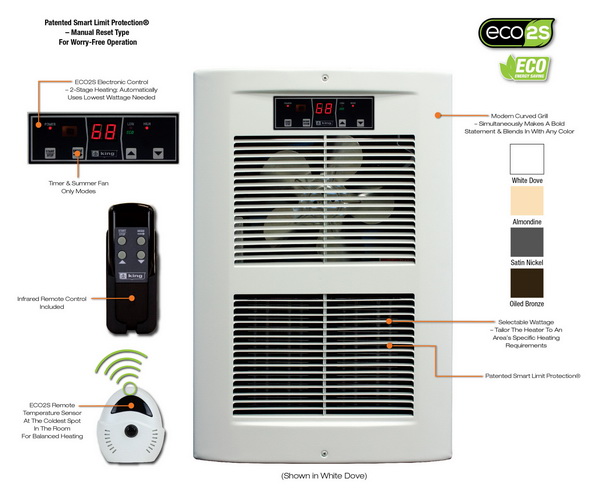

Product Features
Technology in Comfort Heating

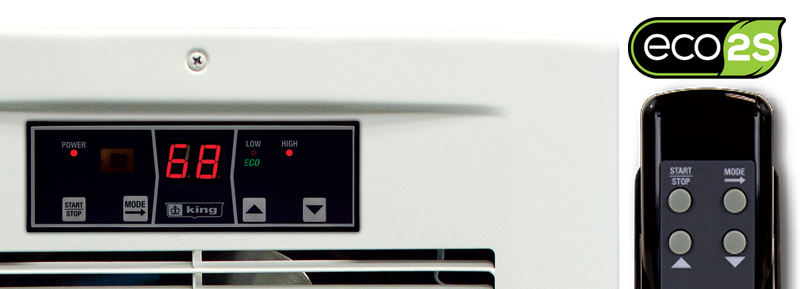

ECO2S Works Smarter Not Harder.
King redefines comfort with the smart series LPW ECO2S. Combining a sleek and modern architectural design with the unparalleled performance, energy efficiency and user control of the ECO2S 2-stage electronic controller with remote. The LPW ECO2S delivers maximum energy efficiency with automatic 2-stage heating, automatically uses the lowest wattage needed to heat the room. Includes both summer fan only and timer modes for year round comfort, as well as a remote control for simple operation.
Now That’s Smart!

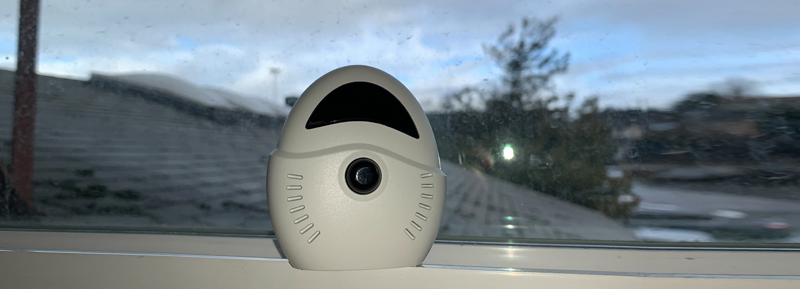

Meet the ECO2S Temperature Sensor
Let's face it, most rooms have cold spots and don't ever seem to maintain an even temperature throughout. With the ECO2S Temperature Sensor, your ECO2S heater knows exactly where that cold spot is and works smarter to keep the entire room comfortable. Just place it on a wall or shelf and get the right temperature, right where you want it. Also available is the optional accessory EC02S-5V-PWRSPLY wall adapter that allows the sensor to be plugged into a wall outlet for power.
Display Lock Feature For High Traffic Areas
ECO2S is powerful enough to prevent tampering of the settings in high traffic areas. Simply set the Display Lock mode and it deactivates the button on the display, while the remote control is still functional for the facilities management staff.

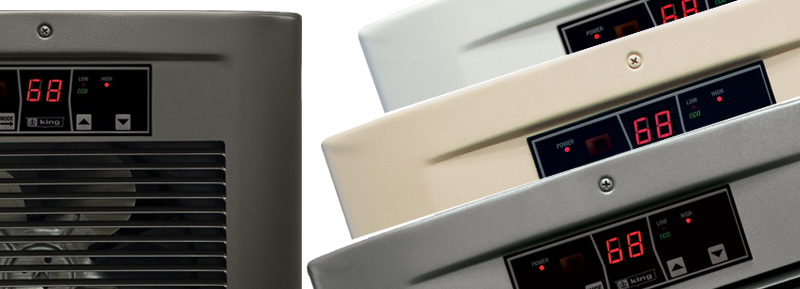

Freedom of Color
You know what it feels like when you walk into a well-designed building. Combine colors, materials, lighting, and now even designer heating fixtures to achieve the ambiance that fits your building. Choose from one of our dynamic designer colors, inspired by the architecture around us.
White Dove – Almondine – Satin Nickel – Oiled Bronze
The Original Pic-A-Watt® Multi-Wattage Element
King's exclusive Pic-A-Watt elements mean the heater can easily be tailored to a room's specific heating requirements. For smaller areas, choose a lower wattage to efficiently heat the room. For larger rooms, choose a higher wattage and maximize comfort. It's easy as unplugging a wire to select the wattage during installation.
Engineering Specs: Contractor shall supply and install LPW-ECO2S Series in-wall mounted forced-air electric heaters manufactured by King Electrical Mfg. Company, of the wattage and voltage as indicated on the plans.
Motor: Heavy-duty, cast iron, unit bearing, permanently lubricated with 20cc oil reservoir, 1440 RPM. Enclosed impedance protected with intake air cooling motor for increased bearing life.
Fan: High efficiency, dynamically balanced 5-blade aluminum fan. 185 CFM. 15 ft Air Throw.
ECO2S Electronic Thermostat Control: Thermostat Temperature Range: 40℉ to 95℉. Up, Down temperature mode. Automatic 2-Stage heating (High & ECO Modes). Start/Stop. Fan Only and Timer (1-9hours) Modes. Standard on all heaters. The control voltage is equal to the line voltage.
Auto Memory Feature: Returns Unit To Last Settings After Power Outage
ECO2S Remote Temperature Sensor: Wireless remote temperature sensing for balanced heating at the coldest spot in the room. 2.4G wireless protocol. Includes wall mounting bracket.
Elements: Element assemblies shall consist of three steel sheathed heating tubes in a furnace-brazed, plate-finned, block design. Each sheathed tube shall contain coiled Ni-Chrome wire, embedded in an insulator of Magnesium Oxide. The element assembly shall provide up to six (6) possible wattage configurations available for selection during field installation. The use of external resistors, diodes, or other weak links to obtain multiple wattages will not be accepted.
Thermal Overload: Heaters shall be equipped with King's patented thermal overload Smart Limit Protection®, which disconnects elements and motor in the event normal operating temperatures are exceeded. If thermal overload trips due to abnormal operating temperatures, thermal overload shall remain open until manually reset by turning the heater off for 15 minutes.
Wall-box: 20 gauge electro-galvanized steel with factory installed ground-wire. Minimum 4"clearance to floors and 6" to sidewalls. Zero clearance to combustibles in the wall. Recommended 10" clearance to floors and 16" to sidewalls.
Grill: The grill shall be a louvered, one-piece curved front design with rounded edges on all four sides. 20 gauge steel finished in a gloss white, powder-coated paint.
Approvals: cULus (E41422)

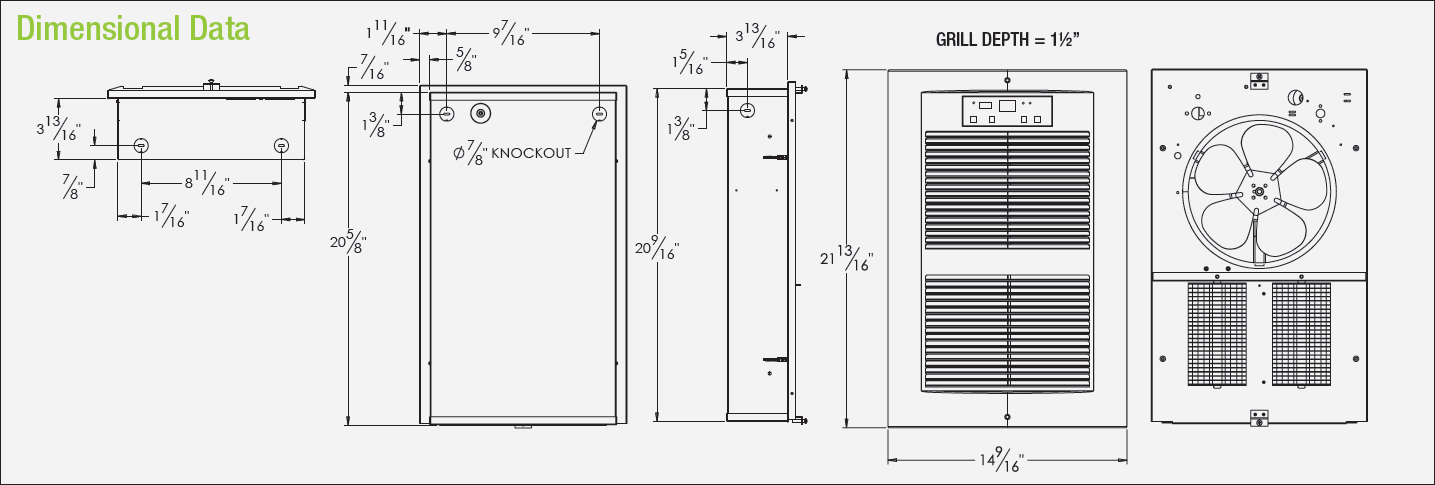

• dimensional data:
• Downloads:
New Product Release
Catalog Page
Designer Colors
Installation
Surface Frame Instructions
Submittal
