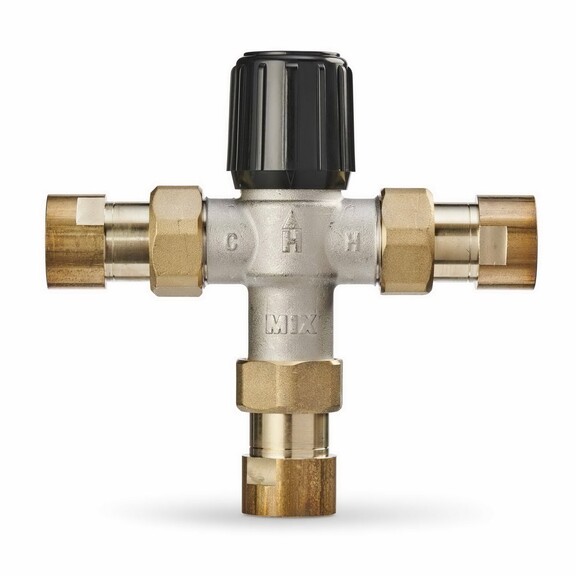

Honeywell AM102R-UT-1 AM-1 Series, 1" Union Threaded Radiant Heat Aquamix Valve 70-180F, Price/each

• Thermostatic Mixing Valve
• Type Thermostatic
• Nominal Size 1 Inch
• End Connection Union Threaded x Union Threaded x Union Threaded
• End to End Distance 7 Inch
• Base to Inlet Dimension 3.9 Inch
• Inlet to Mixing Outlet Dimension 3.9 Inch
• Body Material Non-Stick Coated Nickel Plated Brass
• Flow Rate 0.5 GPM
• Temperature Rating 212 Deg F
• Pressure Rating 150 PSI
• Inclusions/Features Anti-Scald, Anti-Chill Protection, Proportional Valve, Dual Purpose Mixing or Diverting Valve, Tamper Resistant Design, Straight-Through Design
• Application Domestic Water, Nursing Home, Public Facilities, Automatic Faucet, Radiant Floor Heating, Space Heating, Combo System, Solar Hot Water, Greenhouse, Industrial Application, Photo Processing
• Length 6.6 Inch
• Operating Temperature 70 to 180 Deg F
• Flow Capacity 3.9 Cv
• O-Ring Material EPDM Rubber

Features / Benefits

• Dual Purpose Mixing or Diverting Valve
• Offers Constant Water Temperature Under Changing Operating Conditions
• Temperature is Limited at any Point and If Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
• Proportional Valve for Simultaneous Control of Hot and Cold
• Tamper Resistant Design
• Non-Stick Coating Prevents Mineral Build-Up and Extends Life
