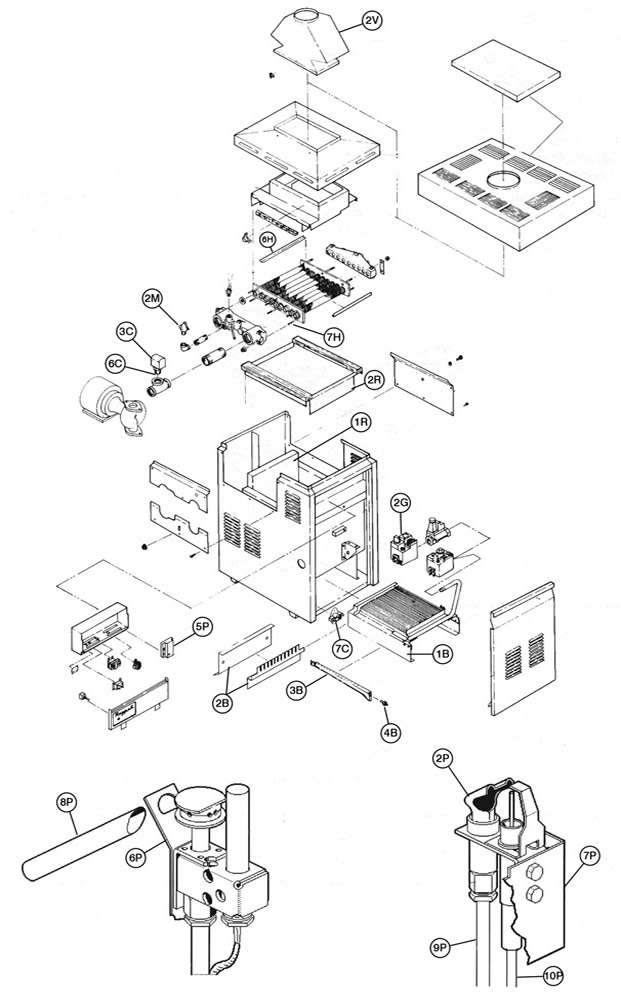

Raypak Raytherm 183B, 263B, 333B, 403B Heaters
Pool & Spa Supplies » Heaters » 46-197-W018
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 1B | 47-197-1008 | Burner Tray, Raypak Versa 265B | 004391F |
| 1B | Discontinued | Burner Tray, Raypak Versa 405B, w/Burners | 004389F |
| 1B | 47-197-1476 | Burner Tray, Raypak, 403B/405B, with out Burner | 004393F |
| 1B | 47-197-2304 | Burner Tray, Raypak, Model 183B/185B, with Burner, Sea Level | 004386F |
| 1B | 47-197-2306 | Burner Tray, Raypak, Model 263B/265B, with Burner, Sea Level | 004387F |
| 1B | 47-197-2308 | Burner Tray, Raypak, Model 333B/335B, with Burner, Sea Level | 004388F |
| 1B | 47-197-2310 | Burner Tray, Raypak, Model 183B/185B, w/o Burner, Sea Level | 004390F |
| 1B | 47-197-2312 | Burner Tray, Raypak, Model 333B/335B, w/o Burner, Sea Level | 004392F |
| 2B | 47-197-2314 | Burner Hold Down, Raypak, Model 183B/185B | 004394F |
| 2B | 47-197-2316 | Burner Hold Down, Raypak, Model 263B/265B | 004395F |
| 2B | 47-197-2318 | Burner Hold Down, Raypak, Model 333B/335B | 004396F |
| 2B | 47-197-2320 | Burner Hold Down, Raypak, Model 403B/405B | 004397F |
| 3B | 47-197-3200 | SRV Burner Kit, Raypak, 10 Pack | 100-10000414 |
| 4B | 47-197-1469 | Burner Orifice, Raypak Model 206A/266A/336A, Nat., Sea Level | 350079F |
| 4B | 47-197-1470 | Burner Orifice, Raypak Gemini/Versa/RP2100/Cal III,LP,SL,5ea | 350083F |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 3C | 47-197-1015 | Flow Switch, Raypak Hi Delta Heaters | 007142F |
| 6C | _010026F | Flow Switch Paddle-Kit | 010026F |
| 6C | 47-197-2336 | Flow Switch Paddle Kit, Raypak | 004079F |
| 7C | 47-197-1848 | Roll Out Switch, Raypak 207A/R185A/R185B | 006035F |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 2G | 47-197-1278 | Gas Valve, Raypak 53A/55A/105A/105B/151/153/155A, Nat., IID | 003900F |
| 2G | 47-197-1368 | Gas Valve, Raypak 55A/105A/105B/155A/185A/R185/185, LP, IID | 004306F |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 6H | 47-197-1586 | Baffle, Raypak 183A/185A | 001299F |
| 6H | 47-197-1588 | Baffle, Raypak 263A/265A | 001300F |
| 6H | 47-197-1590 | Baffle, Raypak 333A/335A | 001301F |
| 6H | 47-197-1592 | Baffle, Raypak 403A/405A | 001302F |
| 7H | 47-197-1842 | Bolt Kit, Raypak 207A/206A/R185A/R185B Heat Exchanger | 007870F |
| 47-197-1222 | Bulb Well, Raypak 53/53A/55A/151/153/155A/183A | 007211F | |
| Discontinued | Sensor Clip, Raypak ELS/53A/55A/105A/105B/151/153/155A/183A | 300203 | |
| 47-197-3218 | Temp Sensor Retainer Kit, Qty 5, Raypak ELS/53A/55A/105A/B | 100-10000413 |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 2M | 47-197-1100 | Pressure Relief Valve, Raypak 130A/207A/206A/R185A, 125 psi | 008091F |
| 2M | 47-197-1180 | Pressure Relief Valve, Raypak 207A/206A/R185A/R185B, 125 psi | 007224F |
| 47-197-1101 | Deliming Kit, Raypak 130A/207A/206A/R185A/R185B | 052871F | |
| 47-197-1003 | Temperature and Pressure Gauge, Raypak Heaters, 1/2", Bottom | 007205F | |
| 47-197-1004 | Temperature & Pressure Gauge Kit, Raypak Hydronic Heaters | 007399F |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 2P | 47-197-1306 | Pilot, Raypak 53A/55A/105A/151/153/155A, Nat./LP,After 06/00 | 002003F |
| 5P | 47-197-1388 | Ignition Control, Raypak 53A/55A/105A/151/153, with out Lock | 004817B |
| 5P | 47-197-1390 | Ignition Control, Raypak 55A/105A/155A/185A/R185, with Lock | 004818B |
| 6P | Discontinued | Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100 | 306693 |
| 6P | 47-197-3628 | Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100 | 100-10000705 |
| 7P | Discontinued | Pilot Mounting Bracket, Raypak Gemini/Versa/RP2100, IID | 306692 |
| 7P | 47-197-3232 | Pilot Mounting Bracket Kit, Raypak Gemini/Versa/RP2100, IID | 100-10000419 |
| 8P | 47-197-1636 | Lighter Tube, Raypak 185A/R185/185/206A/R185A/R185B | 062996 |
| 9P | Discontinued | Aluminum Tubing, Raypak 155A/185A | 400607 |
| 10P | 47-197-1400 | High Tension Wire, Raypak 53A/55A/105A/155A/183A/185A/R185 | 002654B |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 1R | 47-197-2294 | Refractory Kit, Raypak, Model 333B/335B | 004430F |
| 1R | 47-197-2296 | Refractory Kit, Raypak, Model 263B/265B | 004429F |
| 1R | 47-197-2298 | Refractory Kit, Raypak, Model 183B/185B | 004428F |
| 1R | 47-197-2300 | Refractory Kit, Raypak, 403B/405B | 004431F |
| 2R | 47-197-2340 | Refractory Retainer Kit, Raypak, Models 183/183A/185A | 001304F |
| 2R | 47-197-2426 | Refractory Retainer Kit, Raypak, Models 403/405 | 001307F |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 2V | 47-197-1013 | Drafthood, Raypak Gemini/Versa 335B, Indoor | 003726 |
| 2V | 47-197-1123 | Drafthood, Raypak Gemini/Versa 185B, Indoor | 003724F |
| 2V | 47-197-2332 | Drafthood, Raypak, Model 265B, Indoor | 003725F |
| 2V | 47-197-2334 | Drafthood, Raypak, Model 403A/405A, Indoor | 003727 |
