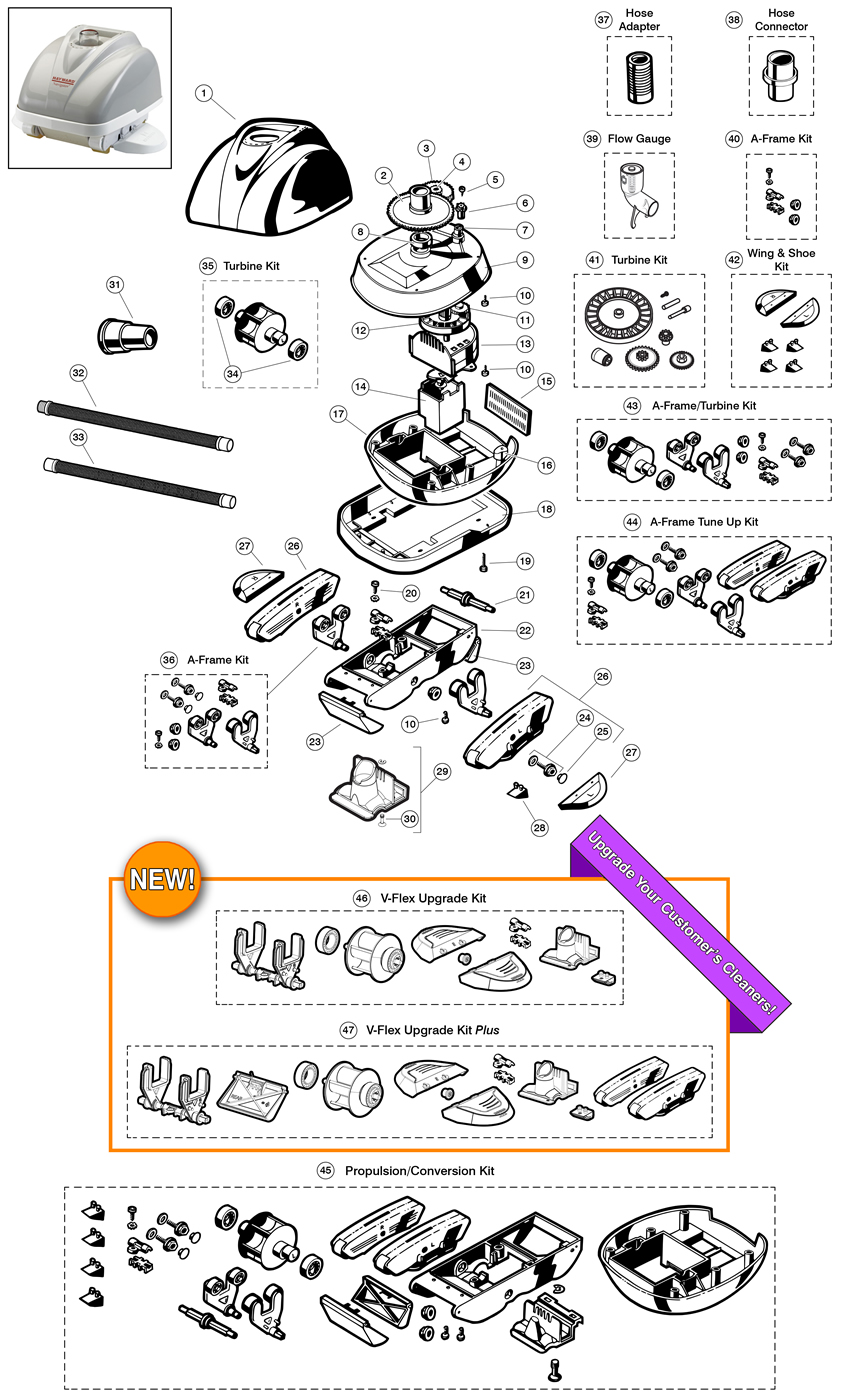

Hayward Navigator Concrete, Desert & Vinyl Model Cleaners
Pool & Spa Supplies » Pool Cleaners » 86-150-W011
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 1 | Discontinued | Shroud, Hayward Navigator Cleaner, Gunite, Light Gray | AXV411LG |
| 1 | Discontinued | Shroud, Hayward Navigator Cleaner, Vinyl, Burgundy | AXV416BG |
| 2 | 87-150-1105 | Cone Gear,Hayward AquaBug/Diver Dave/Navigator/Pool Vac Clnr | AXV070 |
| 3 | 87-150-1106 | Intermediate Gear, Hayward Pool Cleaners | AXV301 |
| 4 | 87-150-1107 | Intermediate Gear Shaft, Hayward Pool Cleaners | AXV309 |
| 5 | 87-150-1108 | Screw, Hayward Pool Cleaners, Spindle Gear | AXV068 |
| 6 | 87-150-1109 | Spindle Gear, Hayward Pool Cleaners | AXV303 |
| 7 | 87-150-1110 | Bushing, Hayward Pool Cleaners, Spindle Gear | AXV066A |
| 8 | 87-150-1111 | Bushing, Hayward Pool Cleaners, Cone Gear | AXV306 |
| 9 | 87-150-1112 | Middle Body, Hayward Pool Cleaners, Upper | AXV060WH |
| 10 | 87-150-1113 | Screw, Hayward Pool Cleaners, Upper Body, Quantity 6 | AXV065P |
| 11 | 87-150-1114 | Drive Gear, Hayward Pool Cleaners, Medium Turbine | AXV064A |
| 12 | 87-150-1115 | Medium Turbine, Hayward Pool Cleaners | AXV062C |
| 13 | 87-150-1116 | Medium Turbine Case, Hayward Pool Cleaners, with Axle | AXV009 |
| 14 | 87-150-1117 | Gear Box Assembly, Hayward Pool Cleaners | AXV408P |
| 14 | 87-300-1074 | Gear Box Assembly, Hayward Pool Cleaners, Generic | HWN134 |
| 15 | Discontinued | Rear Screen, Hayward Navigator/Pool Vac Cleaners, Black | AXV051ABK |
| 15 | Discontinued | Rear Screen, Hayward Navigator Cleaner, Burgandy | AXV051ABG |
| 15 | Discontinued | Rear Screen, Hayward Navigator/Pool Vac Cleaners, Light Gray | AXV051ALG |
| 16 | Discontinued | Float, Hayward Navigator/Pool Vac Cleaners, Quantity of 2 | AXV054P |
| 17 | 87-150-1248 | Middle Body,Hayward Diver Dave/Pool Vac Cleaners,Lower,White | AXV050CWH |
| 18 | Discontinued | Bumper, Hayward Navigator Cleaner, Black | AXV605BKP |
| 18 | Discontinued | Bumper, Hayward Navigator Cleaner, Light Gray | AXV605LGP |
| 18 | 87-150-1251 | Bumper, Hayward Navigator Cleaner, White | AXV605WHP |
| 18 | 87-300-1076 | Bumper, Aquastar StarzTruck, White | HWN13801 |
| 18 | Discontinued | Bumper, Aquastar StarzTruck, Black | HWN13802 |
| 18 | Discontinued | Bumper, Aquastar StarzTruck, Light Gray | HWN13803 |
| 19 | Discontinued | Screw, Hayward Pool Cleaners, Middle Body, Quantity 6 | AXV057P |
| 20 | 87-150-1127 | Screw, Hayward Pool Cleaners, Lower Body | AXV313 |
| 21 | 87-150-1128 | Flap Adjuster, Hayward AquaDroid/Navigator/Pool Vac Cleaners | AXV031B |
| 22 | Discontinued | Lower Body, Hayward Navigator/Pool Vac Cleaners, Black | AXV230DBK |
| 22 | 87-150-1130 | Lower Body,Hayward AquaDroid/Navigator/Pool Vac Cleaners,Wht | AXV230DWH |
| 22 | 87-300-1082 | Lower Body, Hayward Pool Cleaners, White, Generic | HWN14201 |
| 22 | Discontinued | Lower Body, Hayward Pool Cleaners, Black, Generic | HWN14202 |
| 23 | Discontinued | Flap Kit, Hayward Navigator/Pool Vac Cleaners, Black | AXV434BKP |
| 23 | 87-150-1132 | Flap Kit, Hayward Pool Cleaners, Suction, White | AXV434WHP |
| 23 | 87-300-1086 | Flap Kit, Hayward Pool Cleaners, White, Generic | HWN14301 |
| 23 | Discontinued | Flap Kit, Hayward Pool Cleaners, Black, Generic | HWN14302 |
| 24 | Discontinued | Pod Screw Kit, Hayward Pool Cleaners, Quantity 2 | AXV015P |
| 24 | 87-300-1050 | Pod Screw Kit, Hayward, Pool Cleaners, Quantity 2, Generic | HWN110 |
| 25 | Discontinued | Pod Plug, Hayward Pool Cleaners, Quantity 6 | AXV016P |
| 25 | 87-300-1052 | Pod Plug, Hayward Pool Cleaners, Quantity 6, Generic | HWN111 |
| 26 | 87-150-1012 | Pod Kit, Hayward Cleaners, White | AXV417WHP |
| 26 | Discontinued | Pod Kit, Hayward Navigator/Pool Vac Plus Cleaners, Black | AXV417BKP |
| 26 | 87-300-1060 | Pod Kit, Hayward Pool Cleaners, Generic | HWN11601-P |
| 26 | Discontinued | Pod Kit, Hayward Pool Cleaners, Black, Generic | HWN11602 |
| 27 | Discontinued | Wing Kit, Hayward Navigator/Pool Vac Cleaners, Black | AXV604BKP |
| 27 | 87-150-1136 | Wing Kit, Hayward Navigator/Pool Vac Cleaners, White | AXV604WHP |
| 27 | 87-300-1064 | Wing Kit, Hayward Pool Cleaners, Right and Left, Generic | HWN11701-P |
| 27 | Discontinued | Wing Kit, Hayward Pool Cleaners, Right & Left, Blk,Generic | HWN11702 |
| 28 | 87-150-1137 | Pod Shoe, Hayward Navigator/Pool Vac Cleaners, Gunite, qty 4 | AXV414P |
| 28 | 87-150-1138 | Pod Shoe, Hayward Navigator/Pool Vac Cleaners, Vinyl, qty 4 | AXV413P |
| 28 | 87-150-1139 | Pod Shoe, Hayward Navigator/Pool Vac Cleaners,Ceramic, qty 4 | AXV014CP |
| 28 | 87-150-1140 | Santoprene Shoe, Hayward Pool Cleaners, Slotted, Quantity 4 | AXV014SP |
| 28 | 87-300-1057 | Pod Shoe, Navigator/Pool Vac Cleaners, Vinyl, qty 4, Generic | HWN114-P |
| 28 | 87-300-1058 | Pod Shoe, Navigator/Pool Vac Cleaners, Gunite, qty 4,Generic | HWN115-P |
| 29 | 87-150-1249 | Access Cover Assy, Hayward AquaDroid/Pool Vac Cleaner, Vinyl | AXV340 |
| 30 | 87-150-1141 | Captive Screw, Hayward AquaDroid/Navigator/Pool Vac Cleaners | AXV314P |
| 31 | 87-150-1150 | Skimmer Cone, Hayward Navigator/Pool Vac Cleaners | AXV093CP |
| 32 | Discontinued | Connecter Hose Pack, Hayward Cleaners, 32", Silver | DCX2072 |
| 33 | Discontinued | Leader Hose, Hayward KingRay/SunRay Cleaners, Single | DCX178-Single |
| 33 | Discontinued | Leader Hose, Hayward KingRay/SunRay Cleaners (8 pak) | DC178PAK8 |
| 34 | 87-150-1149 | Turbine Bearings, Hayward Pool Cleaners, Quantity 2 | AXV055P |
| 34 | 87-300-1054 | Turbine Bearings, Hayward Pool Cleaners, Quantity 2, Generic | HWN112 |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 35 | 87-150-1007 | Turbine Kit, Hayward Navigator/Pool Vac Cleaners | AXV602P |
| 35 | 87-150-1008 | Turbine Kit, Hayward AquaBug/AquaDroid Cleaners | AXV112P |
| 35 | 87-300-1056 | Turbine Kit, Navigator/Pool Vac Cleaners, Generic | HWN113-P |
| 36 | 87-150-1006 | A-Frame Kit, Hayward Cleaners | AXV621D |
| 36 | Discontinued | A-Frame Kit, Hayward Navigator/Pool Vac Plus Cleaners | AXV118D |
| 36 | 87-300-1068 | A-Frame Kit, Hayward Cleaners, Generic | HWN118-P |
| 37 | 87-150-1026 | Hose Adapter, Hayward Leaf Cannister/Pool Vac Plus Cleaner | AXV098 |
| 38 | 87-150-1024 | Hose Connecter, Hayward Pool Vac Plus Cleaner | AXV092 |
| 38 | 87-300-1092 | Hose Connecter, Pool Vac Plus Cleaner, Generic | HWN158 |
| 39 | 87-150-1015 | Flow Gauge, Hayward Navigator/Pool Vac Plus Cleaners | V574P |
| 40 | 87-150-1016 | A-Frame Kit, Hayward AquaBug/Pool Vac Plus Cleaners | AXV699P |
| 40 | 87-300-1072 | A-Frame Kit, Hayward Pool Cleaners, Generic | HWN120 |
| 41 | 87-150-1004 | Turbine/Gear Kit, Hayward Cleaners, Vinyl | AXV079VP |
| 41 | 87-300-1090 | Turbine/Gear Kit, Hayward Cleaners, Vinyl, Generic | HWN154-P |
| 42 | 87-150-1068 | Wing & Shoe Maintenance Kit, Hayward Navigator/Pool Vac, Wht | AXV414604WHP |
| 43 | 87-150-1010 | A-Frame/Turbine Kit, Hayward Desert Model Cleaners | AXV621DAT |
| 43 | 87-300-1070 | A-Frame/Turbine Kit, Hayward Pool Cleaners, Generic | HWN119 |
| 44 | 87-150-1072 | A-Frame Tune Up Kit, Hayward Navigator/Pool Vac, White | AXV621417WHP |
| 45 | 87-150-1018 | Propulsion Kit, Hayward PoolVac/Navigator, Universal, White | AXV622DPK |
| 45 | Discontinued | Propulsion Kit, Hayward PoolVac/Navigator, Universal, Black | AXV622DPKBK |
| 45 | 87-150-1074 | Propulsion & Wings Rebuild Kit, Hywd PoolVac/Navigator,Wht | AXV622604WHP |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 46 | 87-150-1184 | V-Flex Upgrade Kit, Hayward Navigator/PoolVac,Concrete,Black | VVX3000CKITBLK |
| 46 | 87-150-1186 | V-Flex Upgrade Kit, Hayward Navigator/PoolVac,Concrete,White | VVX3000CKITWH |
| 46 | 87-150-1188 | V-Flex Upgrade Kit, Hayward Navigator/PoolVac,Vinyl,White | VVX3000VKITWH |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 47 | Discontinued | V-Flex Upgrade Kit Plus, Hayward Navgtr/PoolVac,Concrete,Blk | VVX3000SCKITBK |
| 47 | 87-150-1192 | V-Flex Upgrade Kit Plus, Hayward Navgtr/PoolVac,Concrete,Wht | VVX3000SCKITWH |
| 47 | 87-150-1194 | V-Flex Upgrade Kit Plus, Hayward Navigator/PoolVac,Vinyl,Wht | VVX3000SVKITWH |
| Key | SKU | Description | Manf. # |
|---|---|---|---|
| 87-150-1100 | Vac Lock Safety Wall Fitting,Hywd Nav/Pool Vac,1-1/2"mpt,Wht | W400BWHP |
