Product Description
Precision-engineered tape light. Up to 300+ lumens per foot with 95+ CRI / 90+ R9. 12 year warranty. Details & Downloads
Product Specs:

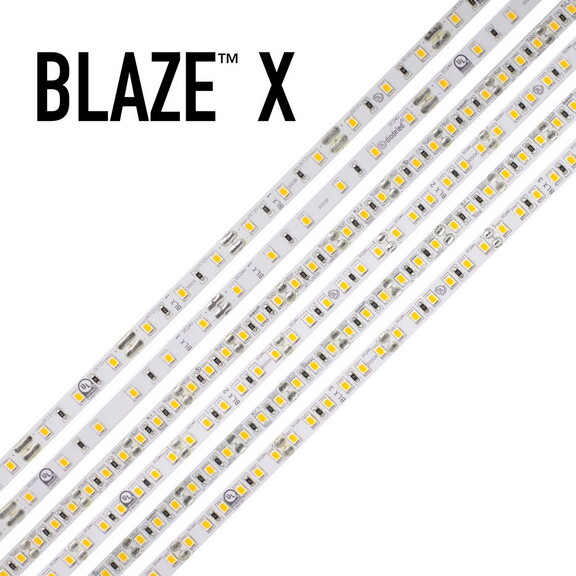

The precision engineered BLAZE™ X is the core of the X-RANGE™ LED Lighting family. BLAZE™ X has 95+ CRI and higher R-Values that provides precision color rendering, superior long-lasting performance, and all with the Diode LED 12-year warranty. Field-cuttable and available in the Diode LED.
Blaze X blazexxrangex range
all options:
Features & Benefits
- 95+ CRI
- 12V and 24V platforms
- Heavy-duty copper PCB for long lasting performance
- 90+ values for R9 color render
Product Specs:
| Connection Type | Tape Light |
|---|---|
| CRI Range | 90-100 |
| Dimmable | Yes |
| Environment / IP Rating | Indoor / Damp Location IP20 |
| Max. Run | See Specification Sheet |
| Warranty | 12 Year Limited |
The precision engineered BLAZE™ X is the core of the X-RANGE™ LED Lighting family. BLAZE™ X has 95+ CRI and higher R-Values that provides precision color rendering, superior long-lasting performance, and all with the Diode LED 12-year warranty. Field-cuttable and available in the Diode LED.
You won’t find a more superior tape light in the market today.
Blaze X blazexxrangex range
 | CAN BE USED TO COMPLY WITH JA8 HIGH EFFICACY LED LIGHTING UNDER 2016 TITLE 24, PART 6 For a full list of Diode LED products visit the CALIFORNIA ENERGY COMMISSION DATABASE |
all options:
| SKU | Input Voltage | Lumens / ft. | Max. Run | Average Lumens (per ft.) | Color (CCT) | Length |
|---|---|---|---|---|---|---|
| DI-12V-BLX1-24-016 | 12VDC | 110 | Up to 37 ft. | 100+ | 2400K | 16.4 ft. Spool |
| DI-12V-BLX1-24-100 | 12VDC | 110 | Up to 37 ft. | 100+ | 2400K | 100 ft. Spool |
| DI-12V-BLX1-27-016 | 12VDC | 109 | Up to 37 ft. | 100+ | 2700K | 16.4 ft. Spool |
| DI-12V-BLX1-27-100 | 12VDC | 109 | Up to 37 ft. | 100+ | 2700K | 100 ft. Spool |
| DI-12V-BLX1-27-400 | 12VDC | 109 | Up to 37 ft. | 100+ | 2700K | 400 ft. Spool |
| DI-12V-BLX1-30-016 | 12VDC | 122 | Up to 37 ft. | 100+ | 3000K | 16.4 ft. Spool |
| DI-12V-BLX1-30-100 | 12VDC | 122 | Up to 37 ft. | 100+ | 3000K | 100 ft. Spool |
| DI-12V-BLX1-30-400 | 12VDC | 122 | Up to 37 ft. | 100+ | 3000K | 400 ft. Spool |
| DI-12V-BLX1-35-016 | 12VDC | 126 | Up to 37 ft. | 100+ | 3500K | 16.4 ft. Spool |
| DI-12V-BLX1-35-100 | 12VDC | 126 | Up to 37 ft. | 100+ | 3500K | 100 ft. Spool |
| DI-12V-BLX1-35-400 | 12VDC | 126 | Up to 37 ft. | 100+ | 3500K | 400 ft. Spool |
| DI-12V-BLX1-42-016 | 12VDC | 127 | Up to 37 ft. | 100+ | 4200K | 16.4 ft. Spool |
| DI-12V-BLX1-42-100 | 12VDC | 127 | Up to 37 ft. | 100+ | 4200K | 100 ft. Spool |
| DI-12V-BLX1-50-016 | 12VDC | 128 | Up to 37 ft. | 100+ | 5000K | 16.4 ft. Spool |
| DI-12V-BLX1-50-100 | 12VDC | 128 | Up to 37 ft. | 100+ | 5000K | 100 ft. Spool |
| DI-12V-BLX1-63-016 | 12VDC | 133 | Up to 37 ft. | 100+ | 6300K | 16.4 ft. Spool |
| DI-12V-BLX1-63-100 | 12VDC | 133 | Up to 37 ft. | 100+ | 6300K | 100 ft. Spool |
| DI-12V-BLX2-24-016 | 12VDC | 225 | Up to 22 ft. | 200+ | 2400K | 16.4 ft. Spool |
| DI-12V-BLX2-24-100 | 12VDC | 225 | Up to 22 ft. | 200+ | 2400K | 100 ft. Spool |
| DI-12V-BLX2-27-016 | 12VDC | 221 | Up to 22 ft. | 200+ | 2700K | 16.4 ft. Spool |
| DI-12V-BLX2-27-100 | 12VDC | 221 | Up to 22 ft. | 200+ | 2700K | 100 ft. Spool |
| DI-12V-BLX2-27-400 | 12VDC | 221 | Up to 22 ft. | 200+ | 2700K | 400 ft. Spool |
| DI-12V-BLX2-30-016 | 12VDC | 247 | Up to 22 ft. | 200+ | 3000K | 16.4 ft. Spool |
| DI-12V-BLX2-30-100 | 12VDC | 247 | Up to 22 ft. | 200+ | 3000K | 100 ft. Spool |
| DI-12V-BLX2-30-400 | 12VDC | 247 | Up to 22 ft. | 200+ | 3000K | 400 ft. Spool |
| DI-12V-BLX2-35-016 | 12VDC | 241 | Up to 22 ft. | 200+ | 3500K | 16.4 ft. Spool |
| DI-12V-BLX2-35-100 | 12VDC | 241 | Up to 22 ft. | 200+ | 3500K | 100 ft. Spool |
| DI-12V-BLX2-35-400 | 12VDC | 241 | Up to 22 ft. | 200+ | 3500K | 400 ft. Spool |
| DI-12V-BLX2-42-016 | 12VDC | 254 | Up to 22 ft. | 200+ | 4200K | 16.4 ft. Spool |
| DI-12V-BLX2-42-100 | 12VDC | 254 | Up to 22 ft. | 200+ | 4200K | 100 ft. Spool |
| DI-12V-BLX2-50-016 | 12VDC | 262 | Up to 22 ft. | 200+ | 5000K | 16.4 ft. Spool |
| DI-12V-BLX2-50-100 | 12VDC | 262 | Up to 22 ft. | 200+ | 5000K | 100 ft. Spool |
| DI-12V-BLX2-63-016 | 12VDC | 273 | Up to 22 ft. | 200+ | 6300K | 16.4 ft. Spool |
| DI-12V-BLX2-63-100 | 12VDC | 273 | Up to 22 ft. | 200+ | 6300K | 100 ft. Spool |
| DI-12V-BLX3-24-016 | 12VDC | 318 | Up to 20 ft. | 300+ | 2400K | 16.4 ft. Spool |
| DI-12V-BLX3-24-100 | 12VDC | 318 | Up to 20 ft. | 300+ | 2400K | 100 ft. Spool |
| DI-12V-BLX3-27-016 | 12VDC | 305 | Up to 20 ft. | 300+ | 2700K | 16.4 ft. Spool |
| DI-12V-BLX3-27-100 | 12VDC | 305 | Up to 20 ft. | 300+ | 2700K | 100 ft. Spool |
| DI-12V-BLX3-30-016 | 12VDC | 339 | Up to 20 ft. | 300+ | 3000K | 16.4 ft. Spool |
| DI-12V-BLX3-30-100 | 12VDC | 339 | Up to 20 ft. | 300+ | 3000K | 100 ft. Spool |
| DI-12V-BLX3-35-016 | 12VDC | 352 | Up to 20 ft. | 300+ | 3500K | 16.4 ft. Spool |
| DI-12V-BLX3-35-100 | 12VDC | 352 | Up to 20 ft. | 300+ | 3500K | 100 ft. Spool |
| DI-12V-BLX3-42-016 | 12VDC | 349 | Up to 20 ft. | 300+ | 4200K | 16.4 ft. Spool |
| DI-12V-BLX3-42-100 | 12VDC | 349 | Up to 20 ft. | 300+ | 4200K | 100 ft. Spool |
| DI-12V-BLX3-50-016 | 12VDC | 358 | Up to 20 ft. | 300+ | 5000K | 16.4 ft. Spool |
| DI-12V-BLX3-50-100 | 12VDC | 358 | Up to 20 ft. | 300+ | 5000K | 100 ft. Spool |
| DI-12V-BLX3-63-016 | 12VDC | 380 | Up to 20 ft. | 300+ | 6300K | 16.4 ft. Spool |
| DI-12V-BLX3-63-100 | 12VDC | 380 | Up to 20 ft. | 300+ | 6300K | 100 ft. Spool |
| DI-24V-BLX1-20-100 | 24VDC | 92 | Up to 70 ft. | 100+ | 2000K | 100 ft. Spool |
| DI-24V-BLX1-24-016 | 24VDC | 114 | Up to 70 ft. | 100+ | 2400K | 16.4 ft. Spool |
| DI-24V-BLX1-24-100 | 24VDC | 114 | Up to 70 ft. | 100+ | 2400K | 100 ft. Spool |
| DI-24V-BLX1-27-016 | 24VDC | 112 | Up to 70 ft. | 100+ | 2700K | 16.4 ft. Spool |
| DI-24V-BLX1-27-100 | 24VDC | 112 | Up to 70 ft. | 100+ | 2700K | 100 ft. Spool |
| DI-24V-BLX1-27-400 | 24VDC | 112 | Up to 70 ft. | 100+ | 2700K | 400 ft. Spool |
| DI-24V-BLX1-30-016 | 24VDC | 126 | Up to 70 ft. | 100+ | 3000K | 16.4 ft. Spool |
| DI-24V-BLX1-30-100 | 24VDC | 126 | Up to 70 ft. | 100+ | 3000K | 100 ft. Spool |
| DI-24V-BLX1-30-400 | 24VDC | 126 | Up to 70 ft. | 100+ | 3000K | 400 ft. Spool |
| DI-24V-BLX1-35-016 | 24VDC | 131 | Up to 70 ft. | 100+ | 3500K | 16.4 ft. Spool |
| DI-24V-BLX1-35-100 | 24VDC | 131 | Up to 70 ft. | 100+ | 3500K | 100 ft. Spool |
| DI-24V-BLX1-35-400 | 24VDC | 131 | Up to 70 ft. | 100+ | 3500K | 400 ft. Spool |
| DI-24V-BLX1-42-016 | 24VDC | 133 | Up to 70 ft. | 100+ | 4200K | 16.4 ft. Spool |
| DI-24V-BLX1-42-100 | 24VDC | 133 | Up to 70 ft. | 100+ | 4200K | 100 ft. Spool |
| DI-24V-BLX1-50-016 | 24VDC | 135 | Up to 70 ft. | 100+ | 5000K | 16.4 ft. Spool |
| DI-24V-BLX1-50-100 | 24VDC | 135 | Up to 70 ft. | 100+ | 5000K | 100 ft. Spool |
| DI-24V-BLX1-63-016 | 24VDC | 139 | Up to 70 ft. | 100+ | 6300K | 16.4 ft. Spool |
| DI-24V-BLX1-63-100 | 24VDC | 139 | Up to 70 ft. | 100+ | 6300K | 100 ft. Spool |
| DI-24V-BLX2-20-100 | 24VDC | 181 | Up to 45 ft. | 200+ | 2000K | 100 ft. Spool |
| DI-24V-BLX2-24-016 | 24VDC | 226 | Up to 45 ft. | 200+ | 2400K | 16.4 ft. Spool |
| DI-24V-BLX2-24-100 | 24VDC | 226 | Up to 45 ft. | 200+ | 2400K | 100 ft. Spool |
| DI-24V-BLX2-27-016 | 24VDC | 224 | Up to 45 ft. | 200+ | 2700K | 16.4 ft. Spool |
| DI-24V-BLX2-27-100 | 24VDC | 224 | Up to 45 ft. | 200+ | 2700K | 100 ft. Spool |
| DI-24V-BLX2-27-400 | 24VDC | 224 | Up to 45 ft. | 200+ | 2700K | 400 ft. Spool |
| DI-24V-BLX2-30-016 | 24VDC | 253 | Up to 45 ft. | 200+ | 3000K | 16.4 ft. Spool |
| DI-24V-BLX2-30-100 | 24VDC | 253 | Up to 45 ft. | 200+ | 3000K | 100 ft. Spool |
| DI-24V-BLX2-30-400 | 24VDC | 253 | Up to 45 ft. | 200+ | 3000K | 400 ft. Spool |
| DI-24V-BLX2-35-016 | 24VDC | 254 | Up to 45 ft. | 200+ | 3500K | 16.4 ft. Spool |
| DI-24V-BLX2-35-100 | 24VDC | 254 | Up to 45 ft. | 200+ | 3500K | 100 ft. Spool |
| DI-24V-BLX2-35-400 | 24VDC | 254 | Up to 45 ft. | 200+ | 3500K | 400 ft. Spool |
| DI-24V-BLX2-42-016 | 24VDC | 264 | Up to 45 ft. | 200+ | 4200K | 16.4 ft. Spool |
| DI-24V-BLX2-42-100 | 24VDC | 264 | Up to 45 ft. | 200+ | 4200K | 100 ft. Spool |
| DI-24V-BLX2-50-016 | 24VDC | 264 | Up to 45 ft. | 200+ | 5000K | 16.4 ft. Spool |
| DI-24V-BLX2-50-100 | 24VDC | 264 | Up to 45 ft. | 200+ | 5000K | 100 ft. Spool |
| DI-24V-BLX2-63-016 | 24VDC | 276 | Up to 45 ft. | 200+ | 6300K | 16.4 ft. Spool |
| DI-24V-BLX2-63-100 | 24VDC | 276 | Up to 45 ft. | 200+ | 6300K | 100 ft. Spool |
| DI-24V-BLX3-20-100 | 24VDC | 261 | Up to 40 ft. | 300+ | 2000K | 100 ft. Spool |
| DI-24V-BLX3-24-016 | 24VDC | 322 | Up to 40 ft. | 300+ | 2400K | 16.4 ft. Spool |
| DI-24V-BLX3-24-100 | 24VDC | 322 | Up to 40 ft. | 300+ | 2400K | 100 ft. Spool |
| DI-24V-BLX3-27-016 | 24VDC | 318 | Up to 40 ft. | 300+ | 2700K | 16.4 ft. Spool |
| DI-24V-BLX3-27-100 | 24VDC | 318 | Up to 40 ft. | 300+ | 2700K | 100 ft. Spool |
| DI-24V-BLX3-30-016 | 24VDC | 360 | Up to 40 ft. | 300+ | 3000K | 16.4 ft. Spool |
| DI-24V-BLX3-30-100 | 24VDC | 360 | Up to 40 ft. | 300+ | 3000K | 100 ft. Spool |
| DI-24V-BLX3-35-016 | 24VDC | 357 | Up to 40 ft. | 300+ | 3500K | 16.4 ft. Spool |
| DI-24V-BLX3-35-100 | 24VDC | 357 | Up to 40 ft. | 300+ | 3500K | 100 ft. Spool |
| DI-24V-BLX3-42-016 | 24VDC | 365 | Up to 40 ft. | 300+ | 4200K | 16.4 ft. Spool |
| DI-24V-BLX3-42-100 | 24VDC | 365 | Up to 40 ft. | 300+ | 4200K | 100 ft. Spool |
| DI-24V-BLX3-50-016 | 24VDC | 378 | Up to 40 ft. | 300+ | 5000K | 16.4 ft. Spool |
| DI-24V-BLX3-50-100 | 24VDC | 378 | Up to 40 ft. | 300+ | 5000K | 100 ft. Spool |
| DI-24V-BLX3-63-016 | 24VDC | 393 | Up to 40 ft. | 300+ | 6300K | 16.4 ft. Spool |
| DI-24V-BLX3-63-100 | 24VDC | 393 | Up to 40 ft. | 300+ | 6300K | 100 ft. Spool |
