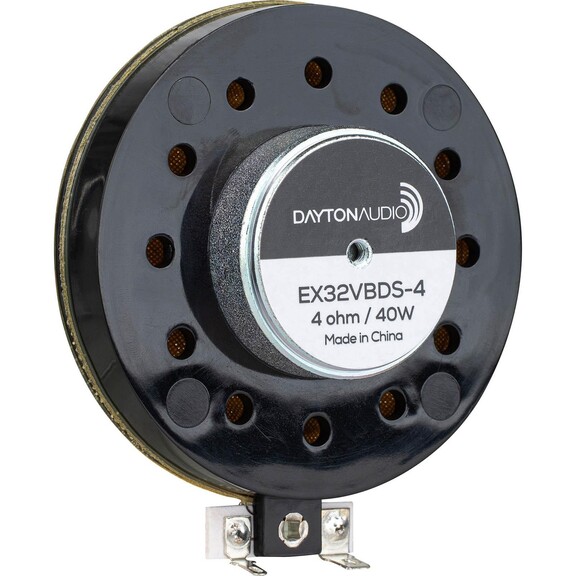

Dayton Audio EX32VBDS-4 IMS Mid-bass Exciter 40W 4 Ohm
Brand Dayton Audio
Shop more from PEX
* Click "Add to Cart" to calculate shipping and delivery time.
Pricing Note
Product Description
Manufacturer Part Number: EX32VBDS-4
Exciters have long been celebrated for their ability to deliver articulate sound across diverse materials. However, when it comes to the crucial lower frequency range, most exciters stumble, causing builders to turn to additional sources to achieve that desired low-end impact. The Dayton Audio EX32VBDS-4 was engineered to optimize output in the often-challenging lower frequency spectrum. This state-of-the-art exciter exceeds the limitations of its counterparts, while preserving the high-frequency reproduction that defines exciter-based systems. With its simple 4 Ohm load and an impressive power rating of 40 Watts, the EX32VBDS-4 effortlessly integrates into an array of audio projects, setting a new standard for exciter-based sound systems.
Key Features:
Overview:
Dayton Audio EX32VBDS-4 IMS™ Mid-bass Exciter 40W 4 Ohm
Dayton Audio EX32VBDS-4 IMS™ Mid-bass Exciter 40W 4 Ohm
The Dayton Audio EX32VBDS-4 was meticulously engineered to optimize output in the often-challenging lower frequency spectrum. This state-of-the-art exciter exceeds the limitations of its counterparts, while preserving the high-frequency reproduction that defines exciter-based systems. With its simple 4 Ohm load and an impressive power rating of 40 Watts, the EX32VBDS-4 effortlessly integrates into an array of audio projects, setting a new standard for exciter-based sound systems.
1/3rd octave smoothing - measurement taken with transducer adhered off-center on a 12" x 12" x ½" foam core board in an infinite baffle setup.
Note: This information is for comparison purposes only, the actual frequency response will depend on many factors of which the diaphragm being the greatest contributor.
Aural Excitement
Dayton Audio's 32 mm EX32VBDS-4 IMS™ Mid-Bass exciter features the ability to turn nearly any surface into a speaker, this exciter enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters, however, the EX32VBDS is optimized to reproduce the low-frequencies often missing in exciter-based systems for extended output when compared to other exciters.
Exclusive IMS™ Interchangeable Mounting System
With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters.
See All Of Our IMS™ Interchangeable Mount Exciters
All of Dayton's interchangeable mount exciters take advantage of the same mount to provide an easily swappable configuration, pick up yours today from Dayton Audio!
Specification:
Manuals & Resources:
Exciters have long been celebrated for their ability to deliver articulate sound across diverse materials. However, when it comes to the crucial lower frequency range, most exciters stumble, causing builders to turn to additional sources to achieve that desired low-end impact. The Dayton Audio EX32VBDS-4 was engineered to optimize output in the often-challenging lower frequency spectrum. This state-of-the-art exciter exceeds the limitations of its counterparts, while preserving the high-frequency reproduction that defines exciter-based systems. With its simple 4 Ohm load and an impressive power rating of 40 Watts, the EX32VBDS-4 effortlessly integrates into an array of audio projects, setting a new standard for exciter-based sound systems.
Key Features:
- Dual suspension increases excursion for low-frequency reproduction
- Exclusive IMS™ Interchangeable mount allows you to A/B test different exciters
- Rare-earth neodymium motor and a proprietary two-layer voice coil
- Heavy-duty design with a 32mm voice coil for a high 40 watt RMS power handling
- Easily swap non-functional units out in the field
- 4-ohm impedance for use with small, Class D amplifiers
- Pre-applied 3M VHB™ adhesive for quick, durable installation
Overview:
Dayton Audio EX32VBDS-4 IMS™ Mid-bass Exciter 40W 4 Ohm
Dayton Audio EX32VBDS-4 IMS™ Mid-bass Exciter 40W 4 Ohm
The Dayton Audio EX32VBDS-4 was meticulously engineered to optimize output in the often-challenging lower frequency spectrum. This state-of-the-art exciter exceeds the limitations of its counterparts, while preserving the high-frequency reproduction that defines exciter-based systems. With its simple 4 Ohm load and an impressive power rating of 40 Watts, the EX32VBDS-4 effortlessly integrates into an array of audio projects, setting a new standard for exciter-based sound systems.
1/3rd octave smoothing - measurement taken with transducer adhered off-center on a 12" x 12" x ½" foam core board in an infinite baffle setup.
Note: This information is for comparison purposes only, the actual frequency response will depend on many factors of which the diaphragm being the greatest contributor.
Aural Excitement
Dayton Audio's 32 mm EX32VBDS-4 IMS™ Mid-Bass exciter features the ability to turn nearly any surface into a speaker, this exciter enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters, however, the EX32VBDS is optimized to reproduce the low-frequencies often missing in exciter-based systems for extended output when compared to other exciters.
Exclusive IMS™ Interchangeable Mounting System
With Dayton Audio's exclusive IMS™ interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere. Installation is easy, simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters.
See All Of Our IMS™ Interchangeable Mount Exciters
All of Dayton's interchangeable mount exciters take advantage of the same mount to provide an easily swappable configuration, pick up yours today from Dayton Audio!
Want to learn more about exciters? See our Exciters & Tactile Transducers Introduction Paper!
Specification:
Product Details | |
|---|---|
| Brand | Dayton Audio |
| Model | EX32VBDS-4 |
| Part Number | 295-275 |
| UPC | 848791009136 |
| Unit of Measure | Each |
| Weight | 0.5 |
Product Specifications | |
|---|---|
| Power Handling (RMS) | 40 Watts |
| Impedance | 4Ω |
Manuals & Resources:
