CED CE Distribution P PC FUZZ MOD1 B PCB Mod® Electronics Germanium Fuzz for 1590B or 1590N1 P15857974CED-P-PC-FUZZ-MOD1-B https://cdnimages.opentip.com/full/CED/CED-P-PC-FUZZ-MOD1-B.jpg CE Distribution P PC FUZZ MOD1 B PCB Mod® Electronics Germanium Fuzz for 1590B or 1590N1 Manufacturer Part Number: P-PC-FUZZ-MOD1-BPCB for a Fuzz Face style circuit with PCB mounted potentiometers. Its very low component count makes it a great beginner project. Builders can use preselected transistors from P-Q2N1309-SET-FF with its included resistors for R1 through R4 for a simple and great sounding germanium fuzz. If a builder wants to use their own transistors, the stock component values are also clearly labeled on the PCB. The transistor footprints fit P-SGP-001 sockets making swapping transistors a simple process so builders can experiment with a variety of types and values.This board was designed for a 1590N1/125B or C65-sized enclosure, with the potentiometers spaced 30mm apart. It can also be mounted using the two screw-mount holes with the potentiometers wired off-board. There are two screw-mounting holes which are designed for M3 screws. They work well with our S-H190 and S-H192-X adhesive mounts. Recommended Fuzz Pot: R-VAM1KL-SS-PCL or R-VAM1KC-SS-PCL Recommended Volume Pot: R-VAM500KA-SS-PCL Potentiometer Covers: R-VCOVER-LP16 Note: 2.2uF and 22uF capacitors can be used in place of the stock 2.5uF and 20uF capacitors. Height0.065 in. Length2.127 in. Width1.103 in. Packaging Information Packaging Dimensions2.127 in. X 1.103 in. X 0.065 in. Weight (Packaging)0.011 lbs. 15857974 0.0200lbs 0.00 0.00 0.00
CE Distribution
4.5000 2027-08-02 In Stock

CE Distribution P-PC-FUZZ-MOD1-B PCB - Mod® Electronics, Germanium Fuzz, for 1590B or 1590N1

Shop more from CED

SKU: CED-P-PC-FUZZ-MOD1-B
Price: $4.50
Quantity:
In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk

You may also like

Product Description

Manufacturer Part Number: P-PC-FUZZ-MOD1-B

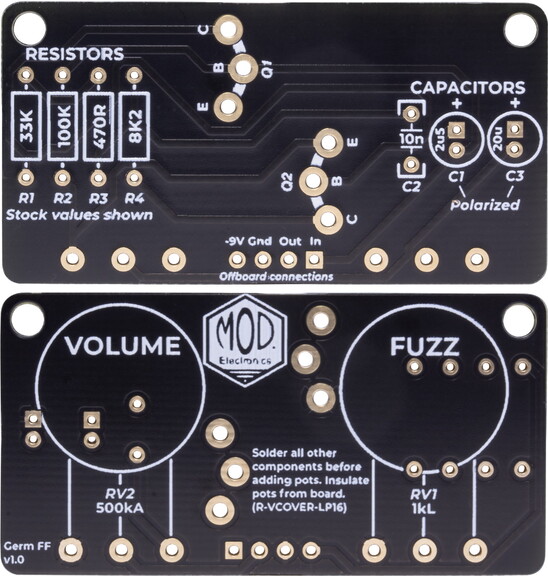

PCB for a Fuzz Face style circuit with PCB mounted potentiometers. Its very low component count makes it a great beginner project. Builders can use preselected transistors from P-Q2N1309-SET-FF with its included resistors for R1 through R4 for a simple and great sounding germanium fuzz. If a builder wants to use their own transistors, the stock component values are also clearly labeled on the PCB. The transistor footprints fit P-SGP-001 sockets making swapping transistors a simple process so builders can experiment with a variety of types and values.

This board was designed for a 1590N1/125B or C65-sized enclosure, with the potentiometers spaced 30mm apart. It can also be mounted using the two screw-mount holes with the potentiometers wired off-board. There are two screw-mounting holes which are designed for M3 screws. They work well with our S-H190 and S-H192-X adhesive mounts.
  • Recommended Fuzz Pot: R-VAM1KL-SS-PCL or R-VAM1KC-SS-PCL
  • Recommended Volume Pot: R-VAM500KA-SS-PCL
  • Potentiometer Covers: R-VCOVER-LP16

Note: 2.2uF and 22uF capacitors can be used in place of the stock 2.5uF and 20uF capacitors.
