Product Description
Manufacturer Part Number: 15CMV2
The Beyma 15CMV2 is a 15" low and mid-frequency transducer designed for professional audio applications requiring high power handling and linear response. Its robust construction and treated components make it suitable for bass and midbass applications in compact vented cabinets.
Key Features:
Beyma 15CMV2 15" Subwoofer 8 Ohm
The 15CMV2's 350 W AES power handling and 97 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 3" copper wire voice coil enhances thermal stability, contributing to consistent performance over time. The transducer offers an extremely linear response with low distortion, ensuring accurate sound reproduction across its frequency range. The treated double roll cloth surround provides durability and longevity, maintaining performance under rigorous conditions. The optimized pressed steel frame offers structural integrity, while the ferrite magnet ensures consistent performance. Designed for bass and midbass applications in compact vented cabinets, the 15CMV2 provides versatility and high performance for professional audio setups.
Solid Line: On Axis
Dotted Line: 45° Off Axis
.png)
Manuals & Resources
The Beyma 15CMV2 is a 15" low and mid-frequency transducer designed for professional audio applications requiring high power handling and linear response. Its robust construction and treated components make it suitable for bass and midbass applications in compact vented cabinets.
Key Features:
- 3" copper wire voice coil enhances thermal stability
- Extremely linear response with low distortion
- Treated double roll cloth surround for durability
- Optimized pressed steel frame provides structural integrity
- Ferrite magnet ensures consistent performance
- Designed for bass and midbass applications in compact vented cabinets
Beyma 15CMV2 15" Subwoofer 8 Ohm
15CMV2 15" Subwoofer 8 Ohm
The 15CMV2's 350 W AES power handling and 97 dB sensitivity enable it to deliver clear and dynamic sound output, making it suitable for demanding audio applications. Its 3" copper wire voice coil enhances thermal stability, contributing to consistent performance over time. The transducer offers an extremely linear response with low distortion, ensuring accurate sound reproduction across its frequency range. The treated double roll cloth surround provides durability and longevity, maintaining performance under rigorous conditions. The optimized pressed steel frame offers structural integrity, while the ferrite magnet ensures consistent performance. Designed for bass and midbass applications in compact vented cabinets, the 15CMV2 provides versatility and high performance for professional audio setups.
Solid Line: On Axis
Dotted Line: 45° Off Axis
.png)
Product Details | |
|---|---|
| Brand | Beyma |
| Model | 15CMV2 |
| Part Number | 253-030 |
| UPC | 8435469051065 |
| Unit of Measure | Each |
| Weight | 15.4 |
Product Specifications | |
|---|---|
| Nominal Diameter | 15" |
| Bolt Circle Diameter | 14.4 |
| Power Handling (RMS) | 350 Watts |
| Power Handling (MAX) | 700 Watts |
| Impedance | 8Ω |
| Frequency Response | 50 to 4,000Hz |
| Sensitivity | 97dB 2.83V/1m |
| Voice Coil Diameter | 3" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 49Hz |
| DC Resistance (Re) | 6Ω |
| Voice Coil Inductance (Le) | 1.2mH |
| Mechanical Q (Qms) | 4.1 |
| Electromagnetic Q (Qes) | 0.55 |
| Total Q (Qts) | 0.49 |
| Compliance Equivalent Volume (Vas) | 3.67ft³ |
| Mechanical Compliance of Suspension (Cms) | 95mm/N |
| BL Product (BL) | 18.8T·m |
| Diaphragm Mass Inc. Airload (Mms) | 0.106g |
| Maximum Linear Excursion (Xmax) | 7mm |
| Surface Area of Cone (Sd) | 0.088cm² |
Materials of Construction | |
|---|---|
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |

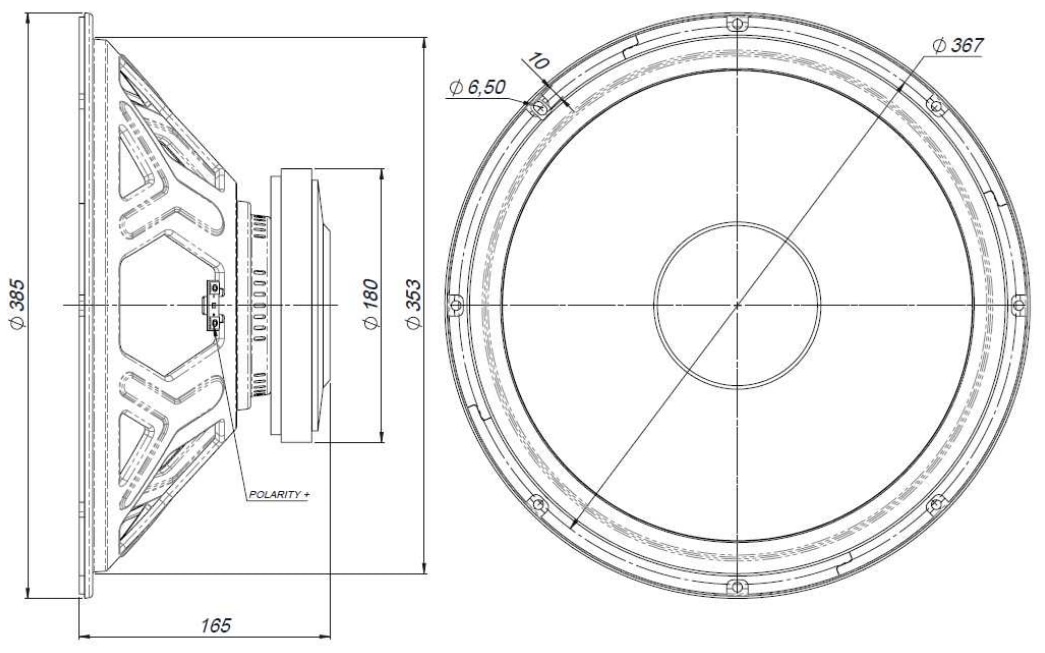

Mounting Information | |
|---|---|
| Overall Outside Diameter | 15.1" |
| Baffle Cutout Diameter | 13.9" |
| Depth | 6.5" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 1.609ft³ |
| Sealed F3 | 86.25Hz |
| Vented Volume | 5.369ft³ |
| Vented F3 | 41.22Hz |
