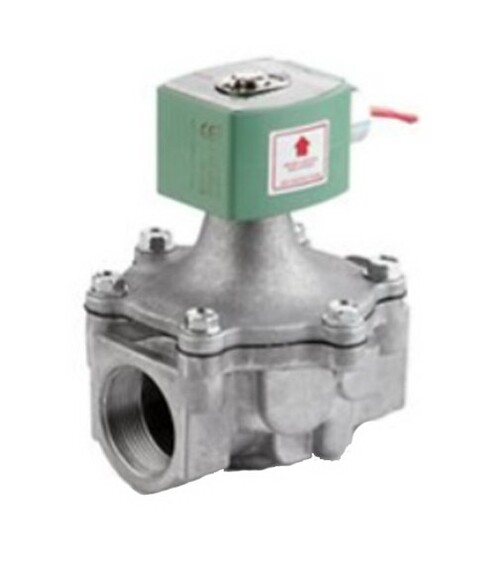

MEO Asco 8215G033 120/60 110/50 Vac 3/4" NPT. 2 Way N.O. Solenoid Vent Valve 247 500 BTU 125 PSI Max 20303 P14531750MEO-77279 https://cdnimages.opentip.com/full/MEO/MEO-77279.jpg Asco 8215G033 120/60 110/50 Vac 3/4" NPT. 2 Way N.O. Solenoid Vent Valve 247 500 BTU 125 PSI Max 20303 Manufacturer Part Number: 8215G033ASC8215G033 120/60 110/50 Vac 3/4 NPT. 2 Way N.O. Solenoid Vent Valve 247 500 BTU 125 PSI Max 20303Part Description:Solenoid Valve Type 2-Way, Direct Acting/Electrically/Piloted Operated Port Connection 3/4 Inch Threaded x 3/4 Inch Threaded Valve Position NO Body Material Aluminum Enclosure Type NEMA 1/2/3/3S/4/4X, RedHat II Input Supply Rating 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz Temperature Rating 125 Deg F AC/104 Deg F DC (Fluid) Pressure Rating 0 to 125 PSI AC (Air/Fuel Gas) Mounting Details Vertical/Upright Installation Media Handled Air, Fuel Gas Inclusions/Features Lightweight, Low Cost, NBR Diaphragm/Seal/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice Application Air and Vacuum Service Applicable Standard UL, CSA (Canada and US), CE, FM Cv Value 4.6 Power Rating 10.1 Watt (AC), 11.6 Watt (DC) Insulation Class Type FFeatures / BenefitsLightweight, Low-Cost Valves for Air Service Ideal for Low Pressure Applications Provides High Flow, CV up to 138 (KV 118) Air and Vacuum Service 14531750 3.6000lbs 0.00 0.00 0.00
Asco
383.18 2027-07-19 Out of Stock

Asco 8215G033 120/60 110/50 Vac 3/4" NPT. 2 Way N.O. Solenoid Vent Valve 247,500 BTU 125 PSI Max 20303, Price/each

Brand Asco
Shop more from MEO

SKU: MEO-77279
Price: $383.18
Buy in bulk & save 10% ($343.95 each)
Quantity:
Out of Stock
*  Click "Add to Shopping List" to save the item for later purchase. You can receive a notice email when it is back in stock.
Share & Earn 10% Cash Back Best Price in Bulk
Price: $383.18 ea X 1 qty = $383.18
Quantity Price Save
1+ $383.18 0%
4+ $368.08 4%
10+ $343.95 10%
This item is excluded from use of other offer, discount or coupon.

Product Description

Price is for each.

Manufacturer Part Number: 8215G033

ASC8215G033 120/60 110/50 Vac 3/4 NPT. 2 Way N.O. Solenoid Vent Valve 247 500 BTU 125 PSI Max 20303

Part Description:
  • Solenoid Valve
  • Type 2-Way, Direct Acting/Electrically/Piloted Operated
  • Port Connection 3/4 Inch Threaded x 3/4 Inch Threaded
  • Valve Position NO
  • Body Material Aluminum
  • Enclosure Type NEMA 1/2/3/3S/4/4X, RedHat II
  • Input Supply Rating 120 Volt AC at 60 Hertz, 110 Volt AC at 50 Hertz
  • Temperature Rating 125 Deg F AC/104 Deg F DC (Fluid)
  • Pressure Rating 0 to 125 PSI AC (Air/Fuel Gas)
  • Mounting Details Vertical/Upright Installation
  • Media Handled Air, Fuel Gas
  • Inclusions/Features Lightweight, Low Cost, NBR Diaphragm/Seal/Disc, Disc Holder, POM Core Guide, 305 Stainless Steel Core Tube, PTFE Rider Ring, 430F Stainless Steel Core and Plugnut, Copper Shading Coil, Orifice
  • Application Air and Vacuum Service
  • Applicable Standard UL, CSA (Canada and US), CE, FM
  • Cv Value 4.6
  • Power Rating 10.1 Watt (AC), 11.6 Watt (DC)
  • Insulation Class Type F


Features / Benefits

  • Lightweight, Low-Cost Valves for Air Service
  • Ideal for Low Pressure Applications
  • Provides High Flow, CV up to 138 (KV 118)
  • Air and Vacuum Service
