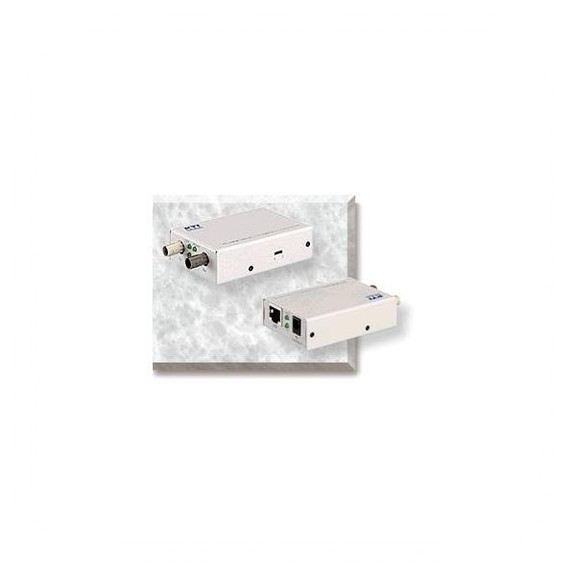

IEC NEW0570 KTI Converter 10 Base T to Fiber ST Multimode

By IEC
See other products from IEC

Upc: 787714086529
SKU: IEC-NEW0570
Price: $152.50
Quantity:
Shipping:
$7.49 To [ 20149 ] Estimated Delivery Date: Aug 2, 2021 to Aug 4, 2021
5 In Stock
Share & Earn 10% Cash Back Best Price in Bulk

Product Description

Manufacturer part number: NEW0570

List of all Converters
Item #Fiber ModeConnectorMax Distance
NEW0570Multi ModeST2Km
Multi ModeSC2Km

Our Fiber optic converters are designed to convert 10Base-T to/from 10Base-FL media type. We have three models; Multimode ST, Multimode SC, and Single Mode ST. All three models support convenient connection to either a straight through or a cross-over cable on the UTP side.

Key Features:
  • Complies with 802.3 10Base-T and 10Base-FL standards
  • Provides media conversion from UTP to Fiber Optic media types
  • Extends network span for up to 2 km (6600 feet) (multimode) up to 12Km (39600 feet) (single mode)
  • The TP port features a switch to accommodate either a straight-through or cross-over cable
  • Interoperable with other 10Base media converters, 10Base, 10/100Base-T NICs, hubs or switches.
  • Provides LEDs for easy network monitoring

Specifications:


StandardIEEE 802.3 Ethernet™ 10Base-T and 10Base-FL
Fiber PortMM ST, MM SC, or SM ST
Fiber CableMM 850nm 62.5/125um fiber cable (max. distance: 2Km)
SM 1300nm 9/125um fiber cable (max. distance: 12Km)
TP Port
Cable
Shielded RJ45 jack
Cat. 5 UTP cable (100m Max.)
LEDs* Power Status
* Link and receive status for TP port
* Link and receive status for fiber port
Environment
Temperature:0 to 40 degrees Centigrade
Relative Humidity:10% to 90% non-condensing
Dimension101mm x 96mm x 25mm (3.98 x 3.78 x .98 inches)
Power+12VDC, 800mA min.


Full description:
Weight1.3 lbs
