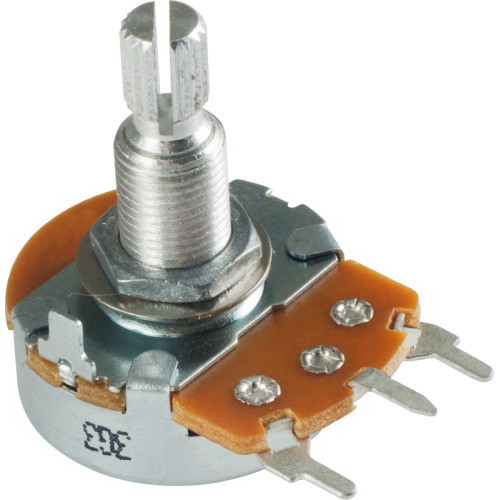

CED Alpha R VXL M Potentiometer Alpha Linear PC Mount for Marshall P10951775CED-R-V4D7KL-M https://cdnimages.opentip.com/full/CED/CED-R-VXL-M.jpg Alpha R VXL M Potentiometer Alpha Linear PC Mount for Marshall Manufacturer Part Number: R-VXL-MLinear. 24mm.If additional nuts are needed, please see part number R-VM-NUT-2Measurements and Specs Body Depth11.5 mm Body Width24 mm Bushing Length11.5 mm Bushing ThreadM8X0.75 Hex Nut Thickness2.0 mm Hex Nut Width11 mm Insulation Resistance>100 MΩ at 500VDC Life15,000 cycles Manual Soldering Max Temp for 3 sec.350 °C Max. Working Voltage500V Max Rotational Stopper Strength6Kgf Operating (Useable) Temperature-10 °C to +70 °C Rated Wattage (Power)0.5W Rotational Torque20-200 gf-cm Shaft Diameter6 mm Sliding Noise<47 mV Tap Residual Resistance≤100 Ω TaperLinear Tolerance±20% Total Rotational Angle300° ±5° Total Shaft Length21 mm Washer I.D.8.1 mm Washer O.D.14 mm Washer Thickness0.4 mm Withstand Voltage500 VAC for 1 min. Packaging Dimensions1.5 in. × 1.4 in. × 1 in. Weight (Packaging)0.031 lbs. Files Specification SheetAll Models 10951775 0609722158749 0.0300lbs 0.00 0.00 0.00
Alpha
2.51 2027-01-05 In Stock
customer review - by , November 11, 2025
5/ 5stars
I'm pleased with these mini pots. Smooth and slow, my Epiphone SG knobs pressed right on these perfectly. Sound quality seems crystal clear, no noise crackle, not loose and flimsy, these are excellent
customer review - by , December 12, 2024
4/ 5stars
Alpha quality product as described.
customer review - by , November 11, 2024
5/ 5stars
Just what I needed to rewire/fix electronics in new (to me) Squier by Fender Classic Vibe 50s Precision (Telecaster-style) bass. Pots feel smooth, no binding/scratchiness.
customer review - by , November 11, 2023
5/ 5stars
Tone pot was bad and this was a exact replacement. It has performed properly for over a month straight now. Very happy with value and performance.
customer review - by , October 10, 2023
4/ 5stars
Product was as advertised.
customer review - by , June 6, 2023
4/ 5stars
Good products great price
customer review - by , March 3, 2023
5/ 5stars
Replaced all electronics on a Partscaster a couple of months ago. Had to ream out the mounting plate, but other than that they're working fine.
customer review - by , January 1, 2023
4/ 5stars
3 out of 4 of the pots are 230k. This is technically within spec but I wish 3 out of 4 were the stated value. I installed them into my Squire bass and they work fine. They fit the holes in the pick guard and because they are mini pots they fit the cavity no problem. They have a resistive grease that makes them turn very smoothly. The shafts seem well fitted, not sloppy. Good value for the price.
customer review - by , August 8, 2022
1/ 5stars
ONE Pot Bad

Alpha R-VXL-M Potentiometer - Alpha, Linear, PC Mount, for Marshall

stars Rating 4.5 | 9 reviews
Brand Alpha
Shop more from CED

UPC: 0609722158749
SKU: CED-R-VXL-M
Price: $2.51
Buy in bulk & save 16% ($2.11 each)
Resistance:
Quantity:
In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk
Price: $2.51 ea X 1 qty = $2.51
Quantity Price Save
1+ $2.51 0%
10+ $2.11 16%
This item is excluded from use of other offer, discount or coupon.

You may also like

Product Description

Manufacturer Part Number: R-VXL-M

Linear. 24mm.

If additional nuts are needed, please see part number R-VM-NUT-2

Measurements and Specs




Files

warning tips WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Need more information?
Our staff are available to answer any questions you may have about this item


Customer Reviews
By J W Burns
Date: November 12, 2025
I'm pleased with these mini pots. Smooth and slow, my Epiphone SG knobs pressed right on these perfectly. Sound quality seems crystal clear, no noise crackle, not loose and flimsy, these are excellent
Rating: 5 stars [5 of 5 Stars!]
By JB
Date: December 04, 2024
Alpha quality product as described.
Rating: 4 stars [4 of 5 Stars!]
By dave o
Date: November 18, 2024
Just what I needed to rewire/fix electronics in new (to me) Squier by Fender Classic Vibe 50s Precision (Telecaster-style) bass. Pots feel smooth, no binding/scratchiness.
Rating: 5 stars [5 of 5 Stars!]
By Lonnie L
Date: November 25, 2023
Tone pot was bad and this was a exact replacement. It has performed properly for over a month straight now. Very happy with value and performance.
Rating: 5 stars [5 of 5 Stars!]
By Karen Marcellus
Date: October 14, 2023
Product was as advertised.
Rating: 4 stars [4 of 5 Stars!]
By Walter hedges
Date: June 11, 2023
Good products great price
Rating: 4 stars [4 of 5 Stars!]
Items 1 - 6 of 9 reviews
 1  2  [Next]
