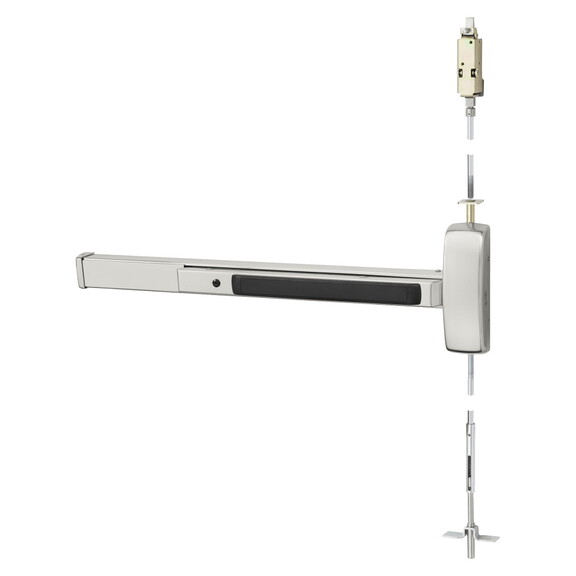

Sargent MD8606J RHR 32D Grade 1 Concealed Vertical Rod Exit Bar,Wide Stile Pushpad,42" Device,Storeroom Function,Right Hand Reverse

Product Specs

Vendor : ASSA Abloy

Manufacturer : Sargent

SKU : MD8606J RHR 32D

UID : SARMD8606JRHR32D

Grade : Grade 1

Unit of Measure : Each

Origin : USA

BAA Qualified : Yes

Burglar Rated : No

ADA Compliance : No

Installation : Commercial

Fire Rating : No

Limited Warranty : 5 Years

UL Listing : UL10C & UL305

ANSI : ANSI/BHMA A156.3

Finish

Finish
630/US32D

Finish Description : Satin Stainless Steel

Finish Family : Matte Silver

Technical Specs

Door Thickness : 1-3/4" - 2-1/4"

Physical Appearance : Wide Stile Pushpad

Includes Cylinder(s) : No

Minimum Stile Size : 4-1/2"

Fire Rated : No

Dogging Options : Hex Key Dogging

Reversible : No

Door Material : Metal

Device Type : Concealed Vertical Rod

Includes Trim : No

Trim Type : Less Trim

Handing : Right Hand Reverse

Door Height : 120"

Door Width : 37" to 42"

Device Length : 42"

Mechanical Function : Storeroom

Top Strike : 650

Strike Bottom : 606

Dimensions

Pack Qty : 1

Ship Weight : 15 lbs.

Pack Width : 7.5"

Pack Height : 6"

Pack Length : 38"

Pack Volume : 1710 in³

8600 Series Concealed Vertical Rod Exit Devices

• Door Types Metal Doors, 1-3/4" (44mm) minimum thickness.
• For doors over 1-3/4" to 2-1/4" thick, specify thickness and order as 31- 4-1/2" (114mm) minimum stile width
• Rails are available in 4 sizes, use door width to determine size needed.
• Rails will be factory cut to size, if door width is supplied
• E Rail for 24" to 32" door widths, No cutting required for 32" door
• F Rail for 33" to 36" door widths, No cutting required for 36" door
• J Rail for 37" to 42" door widths, No cutting required for 42" door
• G Rail for 43" to 48" door widths, No cutting required for 48" door
• Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
• Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options AL- Alarm
• BT- Beacon™
• PL- SARGuide™ Photoluminescent Coated
• TL- SARGuide™ Illuminated Touchpad
• 53- LX Latchbolt Monitor
• 54- Outside Lever Monitoring
• 55- Request-to-Exit Signal - Rail Monitoring
• 56- Remote Latch Retraction
• 57- Delay Egress & Electromagnets
• 58- Electric Dogging
• 59- Electroguard - Self Contained Delayed Egress
• Mounting Fasteners Supplied standard with machine screws
• Top Bolt: Stainless steel
• Device Centerline from Finished Floor: 41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
• Door/Opening Height: Must be specified - 120" (3048mm) Max Door Opening
• 96" max door height for HC and WS options
• Center Case Dimensions: 8-3/8" (213mm) x 2-5/8" (67mm)
• Projection: Pushbar Neutral - 3" (76mm), Pushbar Depressed - 2-1/8" (54mm)
