CE Distribution P-QRECT-X Bridge Rectifier - Single-phase, 2A, In-line

Brand CE Distribution

Shop more from CED

SKU: CED-P-QRECT-X

Price: $1.89

Voltage:

Quantity:

In Stock

100 V	- + $2.14
400 V	- + $1.89
50 V	- + Out of stock$1.10

Qty
Price

* Click "Add to Cart" to calculate shipping and delivery time.

Share & Earn 10% Cash Back Best Price in Bulk

Best Price in Bulk!

Because we are a major distributor for some products, we price very aggressively by sacrificing profit margin whenever we sell in bulk. The philosophy to offer quality products with little mark up has created unmatched customer loyalty for some successful membership based stores. Unlike those wholesale to public membership clubs, we do not charge any membership fee. Some merchants offer FREE shipping, but when you buy quantity 10, you pay 10 times total. Essentially, you are paying 10 times on shipping. We don't think that is fair to you. Why? Most of the time, shipping a 10 lb parcel does not cost 10 times of a 1 lb parcel.

Here is an example:

Opentip	Others
Product Price: $8	Product Price: $20
Shipping for quantity 1: $12	Shipping: FREE
Quantity: 10	Quantity: 10
Total Shipping for quantity 10: $18	Total Shipping: FREE
Subtotal: $98 Saving: $102 (51%)	Subtotal: $200

Don't be shy. If you discover any competitor outselling us in a particular product, whenever you purchase in large quantity, please bring it to our attention. Most of the time, we will match or beat their price, and give you a credit. If we lose to a competitor, it is our shame. We then know we need to work harder in sourcing to create values for you.

* Price comparison must be based on comparable brands or models and in bulk quantity purchase.

Optional related products

CE Distribution P-G-BRG-NX Bridge - Nashville Tune-O-Matic, Zinc, USA

$24.33

CE Distribution P-GKLU-KLP127X Bridge Set - ABR-1, Nonwired, Brass...

$35.83

Gotoh P-GGT-12-X Tuners - Gotoh, Schaller-style Knob, chrome,...

$42.83

Gotoh P-GGT-9-X Tuners - Gotoh, Vintage Oval Knob, 6-in-line

$39.12

Gotoh P-GGT-22-X Bridge - Gotoh, Tune-O-Matic, Standard Post

$13.91

CE Distribution P-JB-IN-U Power Jack - DC Panel Mount, Low Profile,...

$1.20

Dunlop P-ECB-244 Battery Box - Dunlop, snap-in enclosure

$2.34

CE Manufacturing C-EC40-40-25-25 Capacitor - CE Manufacturing, 2x...

$47.53

Generic W-SC-12A-T ¼" Jack - Mono, Switched Tip, made in...

$1.44

Korg M-K050 Power Supply - Korg, 9V, 500mA~1.2A, Center Negative

$14.86

GrooveTech S-TGTFG1 Case Tools - Multi-Tool for USA Fender Guitars,...

$14.32

CE Distribution P-PC-PADD15-1-X PadBoard - Single Sided, 3.04" x...

$3.18

CE Distribution P-HVTTB-X Turret Strip - Socket Mount , Gold Plated...

$3.58

CE Distribution P-PC-STD15-2-BLK StripBoard - Single Sided, 6.14" x...

$8.08

Product Description

Manufacturer Part Number: P-QRECT-X

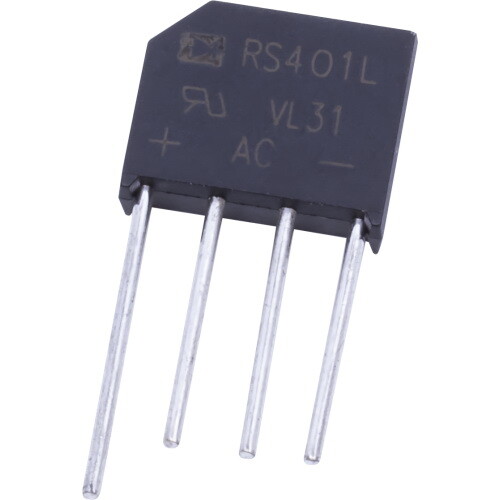

2A bridge rectifier in an inline package ideal for PCB use.

Features:

Low reverse leakage
Low forward voltage
High forward surge current capability

Forward Voltage

100 V version

P-QRECT-100

1.1 V:

400 V version

P-QRECT-400

1.1 V

Height

50 V version

P-QRECT-50

14.7 mm

100 V version

P-QRECT-100

:14.4 mm:

400 V version

P-QRECT-400

14.4 mm

Lead Pitch

50 V version

P-QRECT-50

5.1 mm

Length

50 V version

P-QRECT-50

19.5 mm

100 V version

P-QRECT-100

18 mm:

400 V version

P-QRECT-400

:18 mm

Max. Forward Current

50 V version

P-QRECT-50

:2 A

100 V version

P-QRECT-100

2 A:

400 V version

P-QRECT-400

:2 A

Max Surge Current

100 V version

P-QRECT-100

60 A:

400 V version

P-QRECT-400

60 A

Maximum Average Forward Rectified Current

50 V version

P-QRECT-50

4 A

Maximum DC Blocking Voltage

50 V version

P-QRECT-50

50 V

Maximum Operating Temperature

50 V version

P-QRECT-50

+ 150 °C

100 V version

P-QRECT-100

+ 150 °C:

400 V version

P-QRECT-400

+ 150 °C

Maximum RMS Voltage

50 V version

P-QRECT-50

35 V

Maximum Recurrent Peak Reverse Voltage

50 V version

P-QRECT-50

50 V

Minimum Operating Temperature

50 V version

P-QRECT-50

- 55 °C

100 V version

P-QRECT-100

- 55 °C:

400 V version

P-QRECT-400

- 55 °C

Mounting Style

50 V version

P-QRECT-50

Through Hole

100 V version

P-QRECT-100

Through Hole:

400 V version

P-QRECT-400

Through Hole

Package

50 V version

P-QRECT-50

RS-4L

100 V version

P-QRECT-100

RS-2L:

400 V version

P-QRECT-400

RS-2L

Peak Reverse Voltage

100 V version

P-QRECT-100

100 V:

400 V version

P-QRECT-400

400 V

Reverse Current

100 V version

P-QRECT-100

5 uA:

400 V version

P-QRECT-400

5 uA

Reverse Voltage

100 V version

P-QRECT-100

70 V:

400 V version

P-QRECT-400

280 V

Type

50 V version

P-QRECT-50

Single Phase Bridge

100 V version

P-QRECT-100

Single Phase Bridge:

400 V version

P-QRECT-400

Single Phase Bridge

Width

100 V version

P-QRECT-100

:6.6 mm:

400 V version

P-QRECT-400

6.6 mm

Packaging Information

Packaging Dimensions

1.3 in. × 0.68 in. × 0.25 in.

Weight (Packaging)

50 V version

P-QRECT-50

0.006 lbs.

100 V version

P-QRECT-100

0.006 lbs.

400 V version

P-QRECT-400

0.007 lbs.

P-QRECT-400 - 400 V version

Forward Voltage

1.1 V

Height

14.4 mm

Length

:18 mm

Max. Forward Current

:2 A

Max Surge Current

60 A

Maximum Operating Temperature

+ 150 °C

Minimum Operating Temperature

- 55 °C

Mounting Style

Through Hole

Package

RS-2L

Peak Reverse Voltage

400 V

Reverse Current

5 uA

Reverse Voltage

280 V

Type

Single Phase Bridge

Width

6.6 mm

P-QRECT-100 - 100 V version

Forward Voltage

1.1 V:

Height

:14.4 mm:

Length

18 mm:

Max. Forward Current

2 A:

Max Surge Current

60 A:

Maximum Operating Temperature

+ 150 °C:

Minimum Operating Temperature

- 55 °C:

Mounting Style

Through Hole:

Package

RS-2L:

Peak Reverse Voltage

100 V:

Reverse Current

5 uA:

Reverse Voltage

70 V:

Type

Single Phase Bridge:

Width

:6.6 mm:

P-QRECT-50 - 50 V version

Height

14.7 mm

Lead Pitch

5.1 mm

Length

19.5 mm

Max. Forward Current

:2 A

Maximum Average Forward Rectified Current

4 A

Maximum DC Blocking Voltage

50 V

Maximum Operating Temperature

+ 150 °C

Maximum RMS Voltage

35 V

Maximum Recurrent Peak Reverse Voltage

50 V

Minimum Operating Temperature

- 55 °C

Mounting Style

Through Hole

Package

RS-4L

Type

Single Phase Bridge
