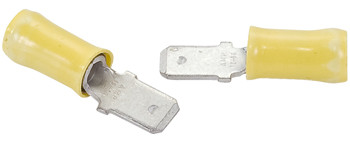

EDM TE Connectivity 66025 2 Pidg Quick Disconnect Tab Series 250 12 10 Awg Male Straight Mount P3338979EDM-66025-2 https://cdnimages.opentip.com/full/EDM/EDM-66025-2.jpg TE Connectivity 66025 2 Pidg Quick Disconnect Tab Series 250 12 10 Awg Male Straight Mount Manufacturer Part Number: 66025-2The series 250 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.This PIDG quick disconnect tab (EDMO# 66025-2) has a straight connector and fits 12 - 10 AWG wire.FeaturesFits within confined spacesLow insertion force provides increased comfortMeets UL 310 & CSA C22.2 No. 153 requirementsSpecificationsDimensions:27.94 x 7.62 mmColor:yellowContact Material:tin-plated copperInsulation:vinylMounting Angle:straightMounting Style:push inProduct Type:quick disconnect tabProduct Series:250 FastonStud / Tab Size:6.35 x 0.81 mmTermination Style:crimpWire Gauge:12 - 10 AWGProduct CodesMfr Part No:66025-2CSA:LR7189ECCN:EAR99SCHEDULE B CODE:8536.90.4000UL:YES 3338979 0.0200lbs 0.00 0.00 0.00
TE Connectivity
172 2024-12-03 Out of Stock

TE Connectivity 66025-2 Pidg Quick Disconnect Tab , Series 250, 12 - 10 Awg, Male Straight Mount, Price/EA

See other products from EDM

SKU: EDM-66025-2
Unit Price:
$1.72Free shipping on orders over $519 on select EDM- items. Details
Promo: $1.55 Save 10% when you spend $99+ on select products Mix More
Min.Order Price: $172.00 for 100 units
Quantity:
Out of Stock
* This item must be ordered in multiples of 100.
*  Click "Add to Shopping List" to save the item for later purchase. You can receive a notice email when it is back in stock.
Share & Earn 10% Cash Back Best Price in Bulk

Pricing Note

Free Shipping Promotion: Buy more items from the same series, product code beginning with EDM-, and you can get free shipping for an order of over  $519.00  consisting of only EDM- series products.

Product Description

Price is for EA.

Manufacturer Part Number: 66025-2

The series 250 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.

This PIDG quick disconnect tab (EDMO# 66025-2) has a straight connector and fits 12 - 10 AWG wire.

Features

  • Fits within confined spaces
  • Low insertion force provides increased comfort
  • Meets UL 310 & CSA C22.2 No. 153 requirements


Specifications

Dimensions:
27.94 x 7.62 mm

Color:
yellow

Contact Material:
tin-plated copper

Insulation:
vinyl

Mounting Angle:
straight

Mounting Style:
push in

Product Type:
quick disconnect tab

Product Series:
250 Faston

Stud / Tab Size:
6.35 x 0.81 mm

Termination Style:
crimp

Wire Gauge:
12 - 10 AWG
