Product Description

Manufacturer Part Number: C10X/BU/WS/VC

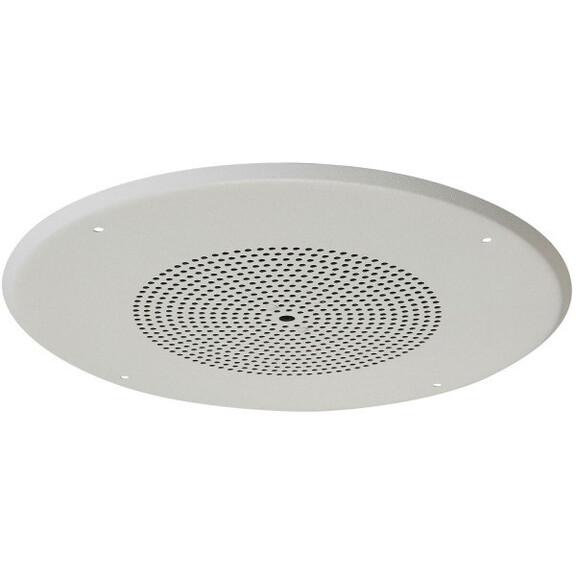

Quam's C10X/BU/WS/VC is an 8" ceiling speaker with stud mount baffle, 5 watt-25/70.7V pigtail transformer, and volume control.

Key Features:
  • 8" O.D. full range speaker
  • 5W-25/70.7V transformer
  • Volume control
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA


Quam C10X/BU/WS/VC 8" Speaker Studded Baffle 5W-25/70V w/VC

The C10X/BU/WS/VC by Quam is a complete loudspeaker assembly with an 8" O.D., full range loudspeaker, 5 watt-25/70.7V pigtail transformer, 22 gauge steel stud mount baffle, and volume control. Baffle finish is a white baked epoxy hybrid. Intended use is ceiling mounted in an indoor environment downward facing for signal tones, voice, and music. Made in Chicago, USA.

Specifications: 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt Baffle: Stud mount Average sensitivity: 95 dB 1W/1m Power rating: 20 watts RMS Max. system output: 102 dB SPL, 5W/1m Magnet type: weight: BeFe ceramic, 10 oz. nominal Frequency response: 60 Hz - 17 kHz Nominal coverage angle: 90° included angle, -6 dB/ 2 kHz, half space Audio connection: 7" long, color-coded tinned wires, pre-cut.
