Product Description

Price is for each.

Manufacturer Part Number: T678A1445

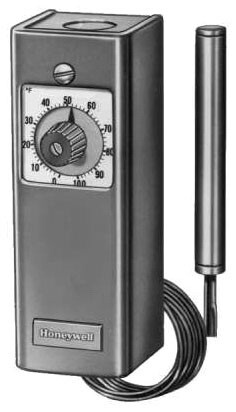

HONT678A1445 Temp Control 2 Stage 55-175F 5' Cap

Part Description:
  • Remote Temperature Controller
  • Type 1/2 Inch Diameter x 3-9/16 Inch Length Copper Bulb, 5 Foot Length Capillary
  • Maximum Temperature Rating 200 Deg F
  • Contact Rating 8 Amp at 120 Volt AC/5.1 Amp at 240 Volt AC/4.2 Amp at 277 Volt AC (Full Load), 48 Amp at 120 Volt AC/30.6 Amp at 240 Volt AC/25.2 Amp at 277 Volt AC (Locked Rotor)
  • Contact Configuration (2) SPDT
  • Connection Type 1/2 Inch Conduit
  • Application Boiler, Tank, Duct, Pipe
  • Approval UL, CSA
  • Overall Dimension 2 Inch Width x 2-5/8 Inch Depth x 5-5/8 Inch Height
  • Differential Temperature Rating 3.6 Deg F Fixed, 3.6 to 12 Deg F Adjustable (Interstage)
  • Set Point Temperature Rating 55 to 175 Deg F
  • Number of Sensor Inputs 1
  • Maximum Connected Load 2000 Volt Amp
  • Knockout Size (2) 7/8 Inch Diameter

Features / Benefits

  • Suitable for Applications Requiring Temperature Control of Air or Liquids Where Controller Must be Placed Outside the Sensing Area
  • Typical Uses Include Control of Dampers and Valves in Heating-Cooling Systems
  • Controller Can be Mounted in any Position
  • Ambient Temperature Compensation Provides Good Temperature Control
