CED Hammond P T270CBX Transformer Hammond Power 250 0 250 V 100 mA P13094396CED-P-T270CBX https://cdnimages.opentip.com/full/CED/CED-P-T270CBX.jpg Hammond P T270CBX Transformer Hammond Power 250 0 250 V 100 mA Manufacturer Part Number: P-T270CBXPrimary 115 VAC 60 Hz.Secondary DC current measured with cap. input filter, full wave (two diode) C.T., rectifier circuit.Enclosed, 4 hole chassis mount.Minimum 6 long leads.2\" X 2\" vertical mounting centers.Class A insulation (105 degrees C).Hi-Pot test of 2000 V RMS.Conservative designs - CSA certified (# LR3902).3.2lbsSecondary: 250-0-250 V100 mAFilament winding 1: 5 V2 AFilament winding 2: 6.3 V3 AMeasurements and Specs Filament 15 V @ 2 A Filament 26.3 V @ 3 A Item Height3.076 in. Item Length2.5 in. Item Width3.25 in. Lead Length6 in. Mounting Hole Center to Center A2 in. Mounting Hole Center to Center B2.063 in. Mounting Hole Diameter0.20 in. Primary115 VAC @ 60 Hz Secondary500 V C.T. @ 100 mA Packaging Dimensions7.25 in. × 7.25 in. × 7.5 in. Weight (Packaging)4.172 lbs. Files Specification SheetAll Models 13094396 4.1700lbs 0.00 0.00 0.00
Hammond Manufacturing
98.9400 2024-06-04 In Stock

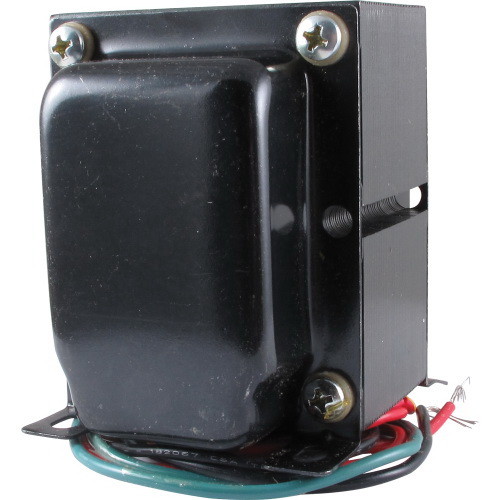

Hammond P-T270CBX Transformer - Hammond, Power, 250-0-250 V, 100 mA

See other products from CED

SKU: CED-P-T270CBX
Price: $98.94
Quantity:
In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk

Product Description

Manufacturer Part Number: P-T270CBX

Primary 115 VAC 60 Hz.
Secondary DC current measured with cap. input filter, full wave (two diode) C.T., rectifier circuit.
Enclosed, 4 hole chassis mount.
Minimum 6 long leads.
2" X 2" vertical mounting centers.
Class A insulation (105 degrees C).
Hi-Pot test of 2000 V RMS.
Conservative designs - CSA certified (# LR3902).
3.2lbs
Secondary: 250-0-250 V100 mA
Filament winding 1: 5 V2 A
Filament winding 2: 6.3 V3 A

Measurements and Specs




Files
