Hammond P-T1182-240 Transformer - Hammond, Toroidal Power, 240V secondary

Brand Hammond Manufacturing

See other products from CED

UPC: 0623980531281

SKU: CED-P-T1182-240

Price: $74.52

Va rating:

Quantity:

In Stock

30	- + $74.52
50	- + $81.49
80	- + $85.69
120	- + $86.14
160	- + $99.15
225	- + $112.18
300	- + $125.19
500	- + $164.26
625	- + $170.77
750	- + $195.88
1000	- + $246.10
1500 POTTED	- + $346.54

Qty
Price

* Click "Add to Cart" to calculate shipping and delivery time.

Share & Earn 10% Cash Back Best Price in Bulk

Best Price in Bulk!

Because we are a major distributor for some products, we price very aggressively by sacrificing profit margin whenever we sell in bulk. The philosophy to offer quality products with little mark up has created unmatched customer loyalty for some successful membership based stores. Unlike those wholesale to public membership clubs, we do not charge any membership fee. Some merchants offer FREE shipping, but when you buy quantity 10, you pay 10 times total. Essentially, you are paying 10 times on shipping. We don't think that is fair to you. Why? Most of the time, shipping a 10 lb parcel does not cost 10 times of a 1 lb parcel.

Here is an example:

Opentip	Others
Product Price: $8	Product Price: $20
Shipping for quantity 1: $12	Shipping: FREE
Quantity: 10	Quantity: 10
Total Shipping for quantity 10: $18	Total Shipping: FREE
Subtotal: $98 Saving: $102 (51%)	Subtotal: $200

Don't be shy. If you discover any competitor outselling us in a particular product, whenever you purchase in large quantity, please bring it to our attention. Most of the time, we will match or beat their price, and give you a credit. If we lose to a competitor, it is our shame. We then know we need to work harder in sourcing to create values for you.

* Price comparison must be based on comparable brands or models and in bulk quantity purchase.

Optional related products

Hammond P-T1182-110 Transformer - Hammond, Toroidal Power, 110V /...

$69.22

Hammond P-T1182-12 Transformer - Hammond, Toroidal Power, 12V / 24V...

$58.70

Hammond P-T1182-15 Transformer - Hammond, Toroidal Power, 15V / 30V...

$55.96

Hammond P-T1182-18 Transformer - Hammond, Toroidal Power, 18V / 36V...

$69.22

Hammond P-T1182-6 Transformer - Hammond, Toroidal Power, 6V / 12V...

$69.22

Hammond P-T1182-9 Transformer - Hammond, Toroidal Power, 9V / 18V...

$69.22

Hammond P-T124X Transformer - Hammond, Audio Interstage, 5 Watt

$68.00

Hammond P-T171X Transformer - Hammond, Isolation / plug &...

$149.01

Hammond P-T266M5 Transformer - Hammond, Power, Low V Primary /...

$42.71

Hammond P-T270CBX Transformer - Hammond, Power, 250-0-250 V, 100 mA

$76.21

Hammond P-T1140-LN-X Transformer - Hammond, Line Input Transformers

$95.37

Hammond P-T1140-LU-X Transformer - Hammond, Line Output Transformers

$53.00

Hammond P-T1140-MN-X Transformer - Hammond, Microphone Input...

$105.36

Hammond P-T125X Transformer - Hammond, Universal Push-Pull

$48.66

Product Description

Manufacturer Part Number: P-T1182-240

Dual 117/234 VAC primary, 50/60 Hz. operation. 240V secondary.

Toroidal transformers are

low profile
lightweight
cool running / high efficiency
have low stray magnetic flux leakage (low EMI) due to core shape

Features:

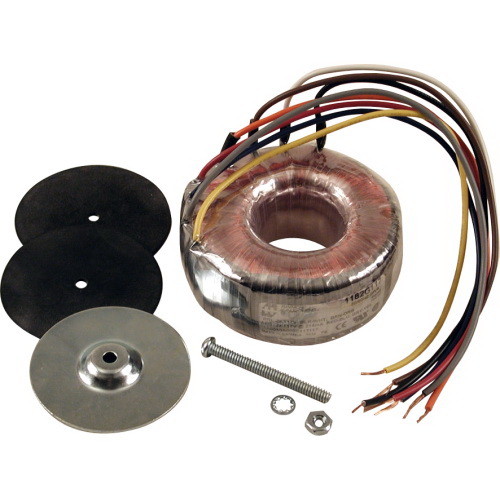

Supplied with two neoprene rubber insulating pads, one metal centering washer and all mounting hardware
Minimum 8" long flexible leads
Manufactured using Class B (130 degree C) materials.
Hi-Pot test of 4,000VAC RMS between primary & secondary
UL recognized to UL506 (XPTQ2.Guide) UL file #E207860
CSA certified to C22.2 #66 - CSA file #209651
CE compliant to IEC 61558-2-4

Note: Units are designed to have all windings engaged (either series or parallel connected) or connected as an autotransformer.

Note about Inrush Current: Due to the superior magnetic properties of Toroidal transformers they will be susceptible to high magnetizing current when initially energized, only limited by the low DC resistance of the primary winding. Depending on where you are in the AC cycle when the transformer is energized dictates the chances of overloading the supply circuit. This is why the transformer may sometimes energize without a problem and other times it will blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed circuit breaker or other form of soft start circuitry for the supply line when using these high efficient Toroidal transformers.

Part No.

VAC Secondary (RMS)

Dual or Single Secondary

% Voltage Regulation

Toroid Center

Series

Parallel

P-T1182D240

240V @ 125ma

Single

12.30%

Open

P-T1182E240

240V @ 208ma

Single

13.10%

Open

P-T1182F240

240V @ 333ma

Single

9.90%

Open

P-T1182G240

120

240V @ 0.5A

Single

7.90%

Open

P-T1182H240

160

240V @ 667ma

Single

7.70%

Open

P-T1182J240

225

240V @ 0.94A

Single

5.80%

Open

P-T1182K240

300

240V @ 1.25A

Single

5.80%

Open

P-T1182L240

500

240V @ 2.08A

Single

4.80%

Open

P-T1182M240

625

240V @ 2.6A

Single

3.70%

Open

P-T1182N240

750

240V @ 3.13A

Single

3.60%

Open

P-T1182P240

1000

240V @ 4.17A

Single

2.80%

Open

P-T1182Q240

1500

240V @ 6.3A

Single

2.30%

Open

P-T1182Q240P

1500

240V @ 6.3A

Single

2.30%

Potted

For other toroidal secondary voltages, see our other listings:

Voltage

Product

6V parallel / 12V series secondary

P-T1182-6

9V parallel / 18V series secondary

P-T1182-9

12V parallel / 24V series secondary

P-T1182-12

15V parallel / 30V series secondary

P-T1182-15

18V parallel / 36V series secondary

P-T1182-18

22V parallel / 44V series secondary

P-T1182-22

24V parallel / 48V series secondary

P-T1182-24

30V parallel / 60V series secondary

P-T1182-30

40V parallel / 80V series secondary

P-T1182-40

60V parallel / 120V series secondary

P-T1182-60

90V parallel / 180V series secondary

P-T1182-90

110V parallel / 220V series secondary

P-T1182-110

117V parallel / 234V series secondary

P-T1182-117

240V secondary

P-T1182-240

Measurements and Specs

% Voltage Regulation

30 version

P-T1182D240

12.30%

50 version

P-T1182E240

13.10 %

80 version

P-T1182F240

9.90%

120 version

P-T1182G240

7.90%

160 version

P-T1182H240

7.70%

225 version

P-T1182J240

5.80%

300 version

P-T1182K240

5.80%

500 version

P-T1182L240

4.80%

625 version

P-T1182M240

3.70%

750 version

P-T1182N240

3.60%

1000 version

P-T1182P240

2.80%

1500 potted version

P-T1182Q240P

2.30%

Height

30 version

P-T1182D240

1.25 in.

50 version

P-T1182E240

1.5 in.

80 version

P-T1182F240

1.5 in.

120 version

P-T1182G240

1.63 in.

160 version

P-T1182H240

1.75 in.

225 version

P-T1182J240

1.88 in.

300 version

P-T1182K240

1.88 in.

500 version

P-T1182L240

2.25 in.

625 version

P-T1182M240

2.38 in.

750 version

P-T1182N240

2.88 in.

1000 version

P-T1182P240

2.88 in.

Inside Diameter

30 version

P-T1182D240

1.50 in.

50 version

P-T1182E240

1.5 in.

80 version

P-T1182F240

1.6 in.

120 version

P-T1182G240

1.45 in.

160 version

P-T1182H240

1.70 in.

225 version

P-T1182J240

1.62 in.

300 version

P-T1182K240

1.85 in.

500 version

P-T1182L240

2.30 in.

625 version

P-T1182M240

2.45 in.

750 version

P-T1182N240

2.45 in.

1000 version

P-T1182P240

2.35 in.

Lead Length

8 in.

Outside Diameter

30 version

P-T1182D240

3.00 in.

50 version

P-T1182E240

3.25 in.

80 version

P-T1182F240

3.5 in.

120 version

P-T1182G240

4.25 in.

160 version

P-T1182H240

4.25 in.

225 version

P-T1182J240

4.5 in.

300 version

P-T1182K240

4.88 in.

500 version

P-T1182L240

5.5 in.

625 version

P-T1182M240

5.88 in.

750 version

P-T1182N240

5.88 in.

1000 version

P-T1182P240

6.25 in.

1500 potted version

P-T1182Q240P

7.25 in.

Parallel Secondary

30 version

P-T1182D240

240V @ 125ma

50 version

P-T1182E240

240V @ 208ma

80 version

P-T1182F240

240V @ 333ma

120 version

P-T1182G240

240V @ 0.5A

160 version

P-T1182H240

240V @ 667ma

225 version

P-T1182J240

240V @ 0.94A

300 version

P-T1182K240

240V @ 1.25A

500 version

P-T1182L240

240V @ 2.08A

625 version

P-T1182M240

240V @ 2.6A

750 version

P-T1182N240

240V @ 3.13A

1000 version

P-T1182P240

240V @ 4.17A

1500 potted version

P-T1182Q240P

240V @ 6.3A

Series Secondary

Toroid Center

30 version

P-T1182D240

Open

50 version

P-T1182E240

Open

80 version

P-T1182F240

Open

120 version

P-T1182G240

Open

160 version

P-T1182H240

Open

225 version

P-T1182J240

Open

300 version

P-T1182K240

Open

500 version

P-T1182L240

Open

625 version

P-T1182M240

Open

750 version

P-T1182N240

Open

1000 version

P-T1182P240

Open

1500 potted version

P-T1182Q240P

Potted

Packaging Dimensions

30 version

P-T1182D240

1 in. × 1 in. × 1 in.

50 version

P-T1182E240

3.25 in. × 3.25 in. × 1.5 in.

80 version

P-T1182F240

3.5 in. × 3.5 in. × 1.5 in.

120 version

P-T1182G240

4 in. × 4 in. × 1.63 in.

160 version

P-T1182H240

4.35 in. × 4.35 in. × 1.75 in.

225 version

P-T1182J240

4.5 in. × 4.5 in. × 2 in.

300 version

P-T1182K240

5 in. × 5 in. × 2 in.

500 version

P-T1182L240

5.5 in. × 5.5 in. × 2.25 in.

625 version

P-T1182M240

6 in. × 6 in. × 2.5 in.

750 version

P-T1182N240

6 in. × 6 in. × 2.87 in.

1000 version

P-T1182P240

6.25 in. × 6.25 in. × 3 in.

1500 potted version

P-T1182Q240P

7.4 in. × 7.4 in. × 3.5 in.

Weight (Packaging)

30 version

P-T1182D240

1.531 lbs.

50 version

P-T1182E240

1.75 lbs.

80 version

P-T1182F240

3 lbs.

120 version

P-T1182G240

3 lbs.

160 version

P-T1182H240

3.6 lbs.

225 version

P-T1182J240

5.3 lbs.

300 version

P-T1182K240

5.75 lbs.

500 version

P-T1182L240

7.75 lbs.

625 version

P-T1182M240

10.8 lbs.

750 version

P-T1182N240

13 lbs.

1000 version

P-T1182P240

16.5 lbs.

1500 potted version

P-T1182Q240P

23 lbs.

Files

Specification Sheet for 30

P-T1182D240

Specification Sheet for 50

P-T1182E240

Specification Sheet for 80

P-T1182F240

Specification Sheet for 120

P-T1182G240

Specification Sheet for 160

P-T1182H240

Specification Sheet for 225

P-T1182J240

Specification Sheet for 300

P-T1182K240

Specification Sheet for 500

P-T1182L240

Specification Sheet for 625

P-T1182M240

Specification Sheet for 750

P-T1182N240

Specification Sheet for 1000

P-T1182P240

Specification Sheet for 1500 potted

P-T1182Q240P
