Product Description
Manufacturer Part Number: HF146R
For a smooth sounding compression driver with broad range and high output, choose FaitalPRO's HF146R 1.4" compression driver. A radial neodymium slug motor focuses magnet flux into the gap while keeping driver weight below 5 pounds.
Key Features:

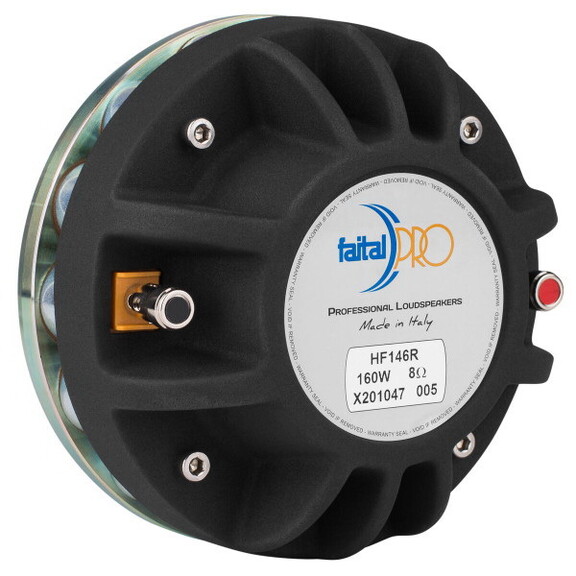

Faital Pro HF146R 1.4" Neodymium Compression Horn Driver 8 Ohm 4-Bolt
FailtalPRO's HF146R 1.4" compression horn driver uses a radial neodymium slug motor design to pack as much BL product into the voice coil gap as possible. When combined with the ketone polymer dome diaphragm, the HF146R produces smooth, neutral sound over a broad range (from 700 to 18,000 Hz). Similar to FaitalPRO's HF146, the HF146R has a slightly longer voice coil winding depth to provide lower power compression and better dynamics when pushed to its limit.
The high energy motor is also responsible for output up to 111 dB with only one watt of input power, with a 109 dB average sensitivity, while keeping the total weight of the driver under five pounds. Built with an annular phase plug. Made in Italy.
Specifications: Power handling: 40 watts RMS (above 650 Hz), 80 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope VCdia: 2.56" Impedance: 8 ohms Frequency response: 700-18,000 Hz SPL: 109 dB 1W/1m Dimensions: 4.84" diameter x 2.50" depth Bolt pattern: 4 x M6 Weight: 4.41 lbs.
For a smooth sounding compression driver with broad range and high output, choose FaitalPRO's HF146R 1.4" compression driver. A radial neodymium slug motor focuses magnet flux into the gap while keeping driver weight below 5 pounds.
Key Features:
- Longer voice coil depth improves dynamics and power compression
- Neo radial motor design for light weight and high output
- Ketone polymer dome diaphragm for smooth output
- Wide band 700 Hz to 18,000 Hz frequency response
Faital Pro HF146R 1.4" Neodymium Compression Horn Driver 8 Ohm 4-Bolt
FailtalPRO's HF146R 1.4" compression horn driver uses a radial neodymium slug motor design to pack as much BL product into the voice coil gap as possible. When combined with the ketone polymer dome diaphragm, the HF146R produces smooth, neutral sound over a broad range (from 700 to 18,000 Hz). Similar to FaitalPRO's HF146, the HF146R has a slightly longer voice coil winding depth to provide lower power compression and better dynamics when pushed to its limit.
The high energy motor is also responsible for output up to 111 dB with only one watt of input power, with a 109 dB average sensitivity, while keeping the total weight of the driver under five pounds. Built with an annular phase plug. Made in Italy.
Specifications: Power handling: 40 watts RMS (above 650 Hz), 80 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope VCdia: 2.56" Impedance: 8 ohms Frequency response: 700-18,000 Hz SPL: 109 dB 1W/1m Dimensions: 4.84" diameter x 2.50" depth Bolt pattern: 4 x M6 Weight: 4.41 lbs.
Product Details | |
|---|---|
| Brand | FaitalPRO |
| Model | HF146R |
| Part Number | 294-1052 |
| UPC | 848864051253 |
| Unit of Measure | Each |
| Weight | 4.8 |
Product Specifications | |
|---|---|
| Diaphragm Material | Poly / Mylar |
| Exit Diameter | 1.4" |
| Mounting Type | 4-Bolt |
| Power Handling (RMS) | 80 Watts |
| Impedance | 8Ω |
