CED Eminence P A ALPHA 6A 8 Speaker Eminence® American 6" Alpha 6 100W 8 Ω P15859387CED-P-A-ALPHA-6A-8 https://cdnimages.opentip.com/full/CED/CED-P-A-ALPHA-6A-8.jpg Eminence P A ALPHA 6A 8 Speaker Eminence® American 6" Alpha 6 100W 8 Ω Manufacturer Part Number: P-A-ALPHA-6A-8American Standard Series 6\" speaker. Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure. Baffle Hole Diameter5.65 in. Basket MaterialPressed Sheet Steel Coil Constructioncopper voice coil Coil FormerPolyimide former Coil Inductance (le)0.19 mH Cone CompositionPaper cone Cone Edge CompositionCloth cone edge Core DetailsVented and extended core D.C. Resistance (Re) 7.2 Ω Depth2.8 in. Diameter6 in. Driver Volume Displaced0.41 liters Dust Cap CompositionSolid composition paper dust cap Efficiency Bandwidth Product (ebp)159 Electrical Q Factor (Qes)0.6 Equivalent Acoustic Volume (VAS)5.8 liters Force Factor (BxL)8 Wb/m Front Sealing GasketYes Gap Height6.4 mm Linear Displacement, maximum (XMAX)3.5 mm Magnet CompositionFerrite Magnet Weight20 oz. Mechanical Compliance (CMS)0.26 mm/N Mechanical Limit, maximum (XLIM)4 mm Mechanical Moving Mass (MMS)7 g Mechanical Q Factor (QMS)5.68 Mounting Hole Bolt Circle Diameter153.9 mm Mounting Hole Diameter5.8mm Nominal Basket Diameter6 in. Nominal Impedance8 Ω Overall Diameter167.4 mm Peak Diaphragm Displacement Volume (vd)44 cm3 Power Rating100 W Program Power Rating200 W Rear Sealing GasketYes Recommended Enclosure Volume, sealed2.8 liters - 5.7 liters Recommended Enclosure Volume, vented3.4 liters - 15.6 liters Resonance103 Hz Resonance Frequency (ƒS)103 Hz Sensitivity93.6 dB Surface Area Of Cone (sd)126.7 cm2 Total Q Factor (QTS)0.54 Usable Frequency Range95 Hz - 6 kHz Voice Coil Diameter1.5 in. Packaging Information Packaging Dimensions7.5 in. X 7.5 in. X 3.75 in. Weight (Packaging)4.8 lbs. 15859387 876358000005 5.7600lbs 0.00 0.00 0.00
Eminence
73.86 2027-08-17 In Stock

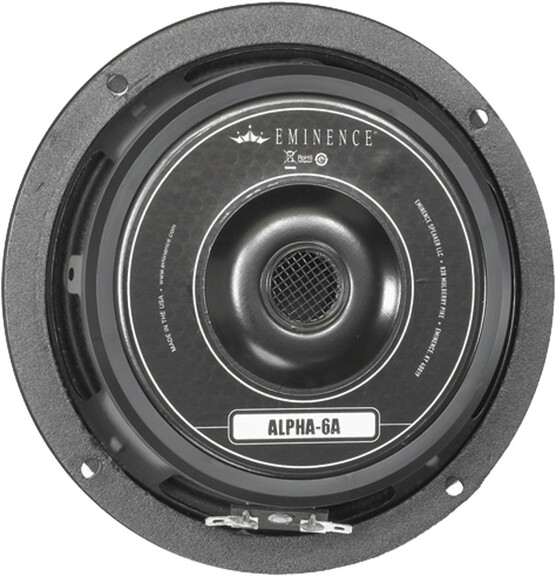

Eminence P-A-ALPHA-6A-8 Speaker - Eminence® American, 6", Alpha 6, 100W, 8 Ω

Brand Eminence
Shop more from CED

UPC: 876358000005
SKU: CED-P-A-ALPHA-6A-8
Price: $73.86
Buy in bulk & save 5% ($70.16 each)
Quantity:
In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk
Price: $73.86 ea X 1 qty = $73.86
Quantity Price Save
1+ $73.86 0%
4+ $70.16 5%
This item is excluded from use of other offer, discount or coupon.

You may also like

Product Description

Manufacturer Part Number: P-A-ALPHA-6A-8

American Standard Series 6" speaker. Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.
