4.5 out of 5

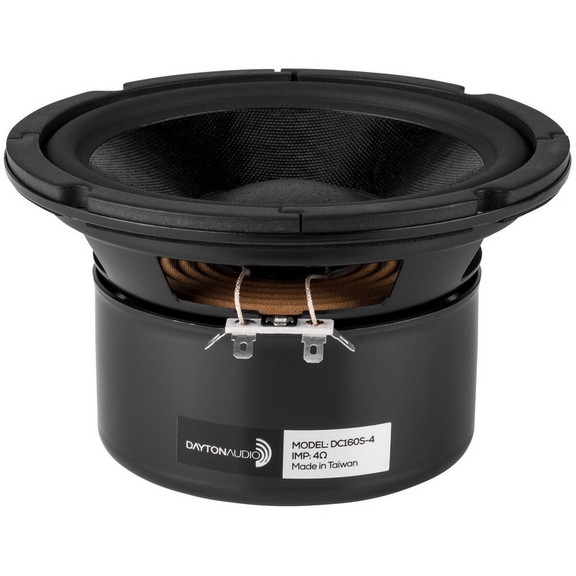

Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
* Click "Add to Cart" to calculate shipping and delivery time.
Pricing Note
Product Description
Manufacturer Part Number: DC160S-4
Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
Key Features:
Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-4 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-4 as a small subwoofer! The excellent low frequency performance will amaze you.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. The 4 ohm impedance of the DC160S-4 makes it perfect for use in MTMs and center channel speakers.
Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
Key Features:
- Treated paper cone provides smooth response and low energy storage
- Aluminum former, vented pole piece, and porous dustcap for high power handling
- Large diameter flat spider and good Xmax for clean bass
Dayton Audio DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-4 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-4 as a small subwoofer! The excellent low frequency performance will amaze you.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. The 4 ohm impedance of the DC160S-4 makes it perfect for use in MTMs and center channel speakers.
Product Details | |
|---|---|
| Brand | Dayton Audio |
| Model | DC160S-4 |
| Part Number | 295-308 |
| UPC | 844632000973 |
| Unit of Measure | Each |
| Weight | 5 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6-1/2" |
| Bolt Circle Diameter | 6.16 |
| Moving Mass Of Diaphragm (Mmd) | 30 |
| Power Handling (RMS) | 50 Watts |
| Power Handling (MAX) | 100 Watts |
| Impedance | 4Ω |
| Frequency Response | 33 to 4,000Hz |
| Sensitivity | 88.5dB 2.83V/1m |
| Voice Coil Diameter | 1.38" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 30.9Hz |
| DC Resistance (Re) | 3.5Ω |
| Voice Coil Inductance (Le) | 0.89mH |
| Mechanical Q (Qms) | 2.61 |
| Electromagnetic Q (Qes) | 0.34 |
| Total Q (Qts) | 0.3 |
| Compliance Equivalent Volume (Vas) | 0.82ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.88mm/N |
| BL Product (BL) | 7.68T·m |
| Maximum Linear Excursion (Xmax) | 3.4mm |
| Surface Area of Cone (Sd) | 136.8cm² |
Materials of Construction | |
|---|---|
| Cone Material | Treated Paper |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 6.5" |
| Baffle Cutout Diameter | 5.69" |
| Depth | 3.74" |
| # Mounting Holes | 4 |
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion) | |
|---|---|
| Sealed Volume | 0.15ft³ |
| Sealed F3 | 90Hz |
| Vented Volume | 0.41ft³ |
| Vented F3 | 52Hz |
Attention CA Residents: Prop 65 Warning
WARNING:
This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Need more information?
Our staff are available to answer any questions you may have about this item
Our staff are available to answer any questions you may have about this item
Look Similar Items By Category
Customer Reviews
By A Customer
Date: June 11, 2018
I have 6 of these speakers so far in my home theater system and they are beautiful to say the least. super HiFi for the money they are insane. Best speaker I have had ever. I have had infinity, kenwood, boston, polk. these speakers blow them all away in quality and sound. The magnet on them is huge and the sound is even more huge. I ran two 4 ohm as 8ohm each chanel as my mid drivers for my stereo system and they brought my sound system to life. Because they are 4 ohm though I am very tempted to dump 4 of them in my truck now that I know they produce such great sound. I ran 8 inch woofers as subs in .56 air space with a 2 inch port 7 inches long and some dayton Dayton Audio DC28F-8 1-1/834; Silk Dome Tweeters with a Dayton Audio XO2W-3K 2-Way Speaker Crossover 3,000 Hz the two way was for the drivers and the tweeters then i ran my subs on a solo amp through my sub out on my receiver. I ran Sure Electronics AA-AB32189 2x100W TDA7498 Class-D Amplifier Board to power the subs and it all is kick ass.
Rating:
[5 of 5 Stars!]
[5 of 5 Stars!]
By Tony Soprano (Fagetaboutit)
Date: February 17, 2018
Lacks powert handling but great midbass.
Rating:
[3 of 5 Stars!]
[3 of 5 Stars!]
By J. Goff
Date: November 17, 2016
Using these in an auto setting, door mounted. Great extension and tight mids. Very nice item for the price.
Rating: [5 of 5 Stars!]
[5 of 5 Stars!]
Items 1 - 3 of 3 reviews
