Product Description
Manufacturer Part Number: P-A-G10C-X

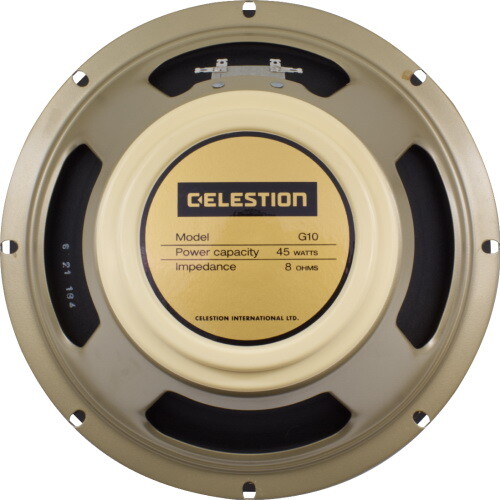

The beloved Creamback is finally in a 10 inch package. The G10 Creamback is hand-built in the U.K. using the same materials and construction techniques as its 12" counterparts. The Creamback series offers increased power handling with a vintage British voicing. The G10 Creamback is capable of producing the classic guitar tones using modern amplifiers. This beautifully crafted speaker is rated at 45W.
"With all the punch and dynamics typical of a 10, its overall tone is warm, expressive, detailed and well-balanced." -Celestion
The beloved Creamback is finally in a 10 inch package. The G10 Creamback is hand-built in the U.K. using the same materials and construction techniques as its 12" counterparts. The Creamback series offers increased power handling with a vintage British voicing. The G10 Creamback is capable of producing the classic guitar tones using modern amplifiers. This beautifully crafted speaker is rated at 45W.
"With all the punch and dynamics typical of a 10, its overall tone is warm, expressive, detailed and well-balanced." -Celestion
| Chassis Type | Pressed steel | ||
| Cut-out Diameter | 9.0 in. | ||
| D.C. Resistance (Re) | 8 Ω version | P-A-G10C-8 | 6.4 Ω |
| 16 Ω version | P-A-G10C-16 | 12.05 Ω | |
| Diameter | 10.0 in. | ||
| Frequency Range | 95 Hz - 5,500 Hz | ||
| Magnet Structure Diameter | 124 mm | ||
| Magnet Type | Ceramic | ||
| Magnet Weight | 14 oz. | ||
| Mounting Hole Bolt Circle Diameter | 245 mm | ||
| Mounting Hole Length | 6.5 mm | ||
| Mounting Hole Width | 11 mm | ||
| Mounting Slots | 8 | ||
| Nominal Diameter | 10 in. | ||
| Nominal Impedance | 8 Ω version | P-A-G10C-8 | 8 Ω |
| 16 Ω version | P-A-G10C-16 | 16 ? | |
| Overall Depth | 102 mm | ||
| Power Rating | 45 W | ||
| Resonance Frequency (?S) | 98 Hz | ||
| Sensitivity | 96 dB | ||
| Voice Coil Diameter | 1.75 in. | ||
| Voice Coil Material | Round copper |
| Packaging Dimensions | 11.25 in. × 10.75 in. × 5.5 in. | |
| Weight (Packaging) | 4.992 lbs. |
| P-A-G10C-8 - 8 Ω version | Chassis Type | Pressed steel |
| Cut-out Diameter | 9.0 in. | |
| D.C. Resistance (Re) | 6.4 Ω | |
| Diameter | 10.0 in. | |
| Frequency Range | 95 Hz - 5,500 Hz | |
| Magnet Structure Diameter | 124 mm | |
| Magnet Type | Ceramic | |
| Magnet Weight | 14 oz. | |
| Mounting Hole Bolt Circle Diameter | 245 mm | |
| Mounting Hole Length | 6.5 mm | |
| Mounting Hole Width | 11 mm | |
| Mounting Slots | 8 | |
| Nominal Diameter | 10 in. | |
| Nominal Impedance | 8 Ω | |
| Overall Depth | 102 mm | |
| Power Rating | 45 W | |
| Resonance Frequency (?S) | 98 Hz | |
| Sensitivity | 96 dB | |
| Voice Coil Diameter | 1.75 in. | |
| Voice Coil Material | Round copper | |
| P-A-G10C-16 - 16 Ω version | Chassis Type | Pressed steel |
| Cut-out Diameter | 9.0 in. | |
| D.C. Resistance (Re) | 12.05 Ω | |
| Diameter | 10.0 in. | |
| Frequency Range | 95 Hz - 5,500 Hz | |
| Magnet Structure Diameter | 124 mm | |
| Magnet Type | Ceramic | |
| Magnet Weight | 14 oz. | |
| Mounting Hole Bolt Circle Diameter | 245 mm | |
| Mounting Hole Length | 6.5 mm | |
| Mounting Hole Width | 11 mm | |
| Mounting Slots | 8 | |
| Nominal Diameter | 10 in. | |
| Nominal Impedance | 16 ? | |
| Overall Depth | 102 mm | |
| Power Rating | 45 W | |
| Resonance Frequency (?S) | 98 Hz | |
| Sensitivity | 96 dB | |
| Voice Coil Diameter | 1.75 in. | |
| Voice Coil Material | Round copper |
