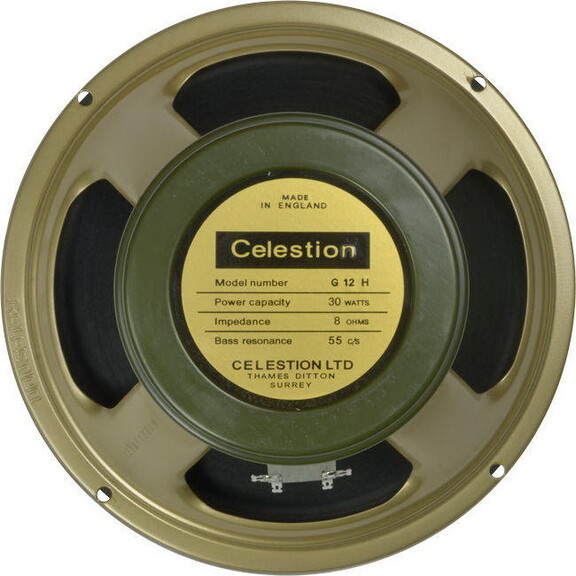

If the G12M was to become a classic, it was the G12H with its heavier magnet that really characterised the sound of rock guitar for the new breed of player that emerged in the 1960s. Listen to any Hendrix recording and the chances are you're hearing the unmistakably creamy tones of the G12H. Originally available in two versions - low resonance for bassists and high resonance for guitarists - both were in fact embraced by guitar players for their unique tonal characteristics. The G12H(55) is a perfect recreation of the low resonance model, right down to the voice coil former material, glue formulations and vintage, solder-only tag panel. Suitable for use in all cabs, it exudes thick, syrupy tones with a deep, growling bottom end. GENERAL SPECIFICATIONS | |
---|---|
Nominal diameter | 12", 305mm |
Power Rating | 30W |
Nominal impedance | 8Ω and 15Ω |
Sensitivity | 100dB |
Chassis type | Pressed steel |
Voice coil diameter | 1.75", 44.5mm |
Voice coil material | Round copper |
Magnet type | Ceramic |
Magnet weight | 50oz, 1.42kg |
Frequency range | 55-5000Hz |
Resonance frequency, Fs | 55Hz |
DC resistance, Re | 6.53Ω & 12.11Ω |
MOUNTING INFORMATION | |
---|---|
Diameter | 12.2", 309mm |
Overall depth | 5.3", 135mm |
Magnet structure diameter | 6.6", 168mm |
Cut-out diameter | 11.1", 283mm |
Mounting slot dimensions | 0.31", 7.9mm ? |
Number of mounting slots | 4 |
Mounting slot PCD | 11.7", 297mm |
Unit weight | 10.4lb, 4.7kg |
