BCR CR Laurence 2031LDU LCN Overhead Concealed ADA Spring Size 1 Left Hand No Hold Open Closer Dark Bronze P14551865BCR-2031LDU https://cdnimages.opentip.com/full/BCR/BCR-2031LDU.jpg CR Laurence 2031LDU LCN Overhead Concealed ADA Spring Size 1 Left Hand No Hold Open Closer Dark Bronze Manufacturer Part Number: 2031LDUAmericans with Disabilities Act (ADA) Compliant: YesBody Height (Inches): 1-5/8Body Length (Inches): 20-5/8Body Width (Inches): 3-23/32Case Quantity: 2Closer Type: Overhead ConcealedCover Plate Length (Inches): 2'1-7/8Cover Plate Width (Inches): 4Door Height (Inches): 96Handing: Left HandHold Open Option Available: YesMaximum Door Width - Exterior: 36 InchesMaximum Door Width - Interior: 36 InchesRecommended Door Type: Aluminum, Hollow MetalSlide Track Depth (Inches): 1-3/8Slide Track Length (Inches): 22-1/2Spring Size: 5UL Listed: YesRequires Minimum 1-3/4\" x 4\" (44.5 x 102 mm) Wide TransomCertified to ANSI Standard A156.4, Grade 1UL and cUL Listed for Self-Closing Doors, without Hold-Open Fixed Spring Sizes Available for Interior Doors to 54\" (1.37 m) and Exterior to 42\" (1.07 m)The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty closer designed to fit a shallow 1-3/4\" (44.5 mm) x 4\" (102 mm) transom. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. The closer is handed for right or left swing doors and available in fixed spring sizes that will meet ADA requirements and accommodate interior doors to 54\" (1.37 m) and exterior doors to 42\" (1.07 m). The series is UL and cUL listed for self-closing doors without hold open.Product Warning:Reduced Force ADA Closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.Installation InstructionsInstallation Instructions LCN 2030 install.pdf 14551865 2.1000lbs 0.00 0.00 0.00
CR Laurence
1776.58 2026-07-19 Only 4 left In Stock

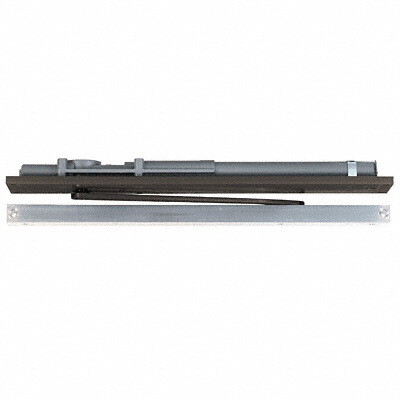

CR Laurence 2031LDU LCN Overhead Concealed ADA Spring Size 1 Left Hand No Hold Open Closer Dark Bronze, Price/Each

Brand CR Laurence
Shop more from BCR

SKU: BCR-2031LDU
Price: $1,776.58
Buy in bulk & save 15% ($1,511.60 each)
Quantity:
Only 4 left In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk
Price: $1,776.58 ea X 1 qty = $1,776.58
Quantity Price Save
1+ $1,776.58 0%
6+ $1,633.41 8%
12+ $1,511.60 15%
This item is excluded from use of other offer, discount or coupon.

Product Description

Price is for Each.

Manufacturer Part Number: 2031LDU

  • Americans with Disabilities Act (ADA) Compliant: Yes
  • Body Height (Inches): 1-5/8
  • Body Length (Inches): 20-5/8
  • Body Width (Inches): 3-23/32
  • Case Quantity: 2
  • Closer Type: Overhead Concealed
  • Cover Plate Length (Inches): 2'1-7/8
  • Cover Plate Width (Inches): 4
  • Door Height (Inches): 96
  • Handing: Left Hand
  • Hold Open Option Available: Yes
  • Maximum Door Width - Exterior: 36 Inches
  • Maximum Door Width - Interior: 36 Inches
  • Recommended Door Type: Aluminum, Hollow Metal
  • Slide Track Depth (Inches): 1-3/8
  • Slide Track Length (Inches): 22-1/2
  • Spring Size: 5
  • UL Listed: Yes


Requires Minimum 1-3/4" x 4" (44.5 x 102 mm) Wide Transom
Certified to ANSI Standard A156.4, Grade 1
UL and cUL Listed for Self-Closing Doors, without Hold-Open
Fixed Spring Sizes Available for Interior Doors to 54" (1.37 m) and Exterior to 42" (1.07 m)
The LCN 2030 Series Pacer® Overhead Concealed Closer is a heavy-duty closer designed to fit a shallow 1-3/4" (44.5 mm) x 4" (102 mm) transom. The single lever arm and roller assembly provides smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. The closer is handed for right or left swing doors and available in fixed spring sizes that will meet ADA requirements and accommodate interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m). The series is UL and cUL listed for self-closing doors without hold open.

Product Warning:

Reduced Force ADA Closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.

Installation Instructions



Installation Instructions LCN 2030 install.pdf
