Product Description

Manufacturer Part Number: P-QLF353

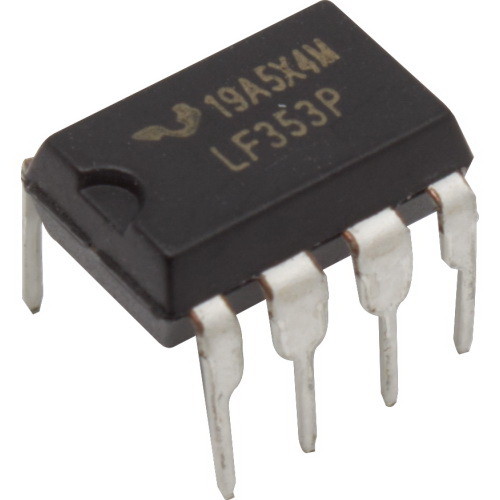

Dual wide-bandwidth LF353 opamps in an 8-pin DIP package. The LF353 offers a high input impedance and 3MHz bandwidth.

This LF353 device is a low-cost, high-speed, JFET input operational amplifier with very low input offset voltage. It requires low supply current yet maintains a large gain-bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET input provides very low input bias and offset currents.

Measurements and Specs

Average Temperature Coefficient of Inputs Offset Voltage

10µV/°C

Crosstalk Attenuation

120dB

Equivalent Input Noise Current

0.01pA/√Hz

Equivalent Input Noise Voltage

18nV/√Hz

Input Resistance

10^12 ?

Junction-To-Board Thermal Resistance

32.2°C/W

Junction-to-Ambient Thermal Resistance

55.1°C/W

Junction-to-Board Characterization Parameter

32.2°C/W

Junction-to-Case (Top) Thermal Resistance

45°C/W

Junction-to-Top Characterization Parameter

22.6°C/W

Max. Junction temperature

150°C

Max Continuous Total Power Dissipation

500mW

Max Differential Input Voltage

±30V

Max Duration of Output Short Circuit

Unlimited

Max Input Bias Current

200pA

Max Input Offset Current

100pA

Max Input Offset Voltage

10mV

Max Input Voltage

±15V

Max Lead Temperature 1.6mm (1/16") from Case for 10 Seconds

260°C

Max Supply Current

6.5mA

Max Supply Voltage

±18V

Min Common-Mode Input Voltage Range

±11V

Min Common-Mode Rejection Ratio

70dB

Min Large-Signal Differential Voltage

25V/mV

Min Maximum Peak Output Voltage Swing

±12V

Min Slew Rate

8V/μs

Min Supply-Voltage Rejection Ratio

70dB

Min Supply Voltage

±3.5V

Operating Temperature Range

0°C to +70°C

Package

DIP-8

Storage Temperature Range

-65°C to +150°C

Typical Common-Mode Input Voltage Range

-12/+15V

Typical Common-Mode Rejection Ratio

100dB

Typical Input Bias Current

25pA

Typical Input Offset Current

25pA

Typical Input Offset Voltage

5mV

Typical Large-Signal Differential Voltage

100V/mV

Typical Maximum Peak Output Voltage Swing

±13.5V

Typical Slew Rate

13V/μs

Typical Supply-Voltage Rejection Ratio

100dB

Typical Supply Current

3.6mA

Unity-Gain Bandwidth

3MHz

VCC+ Common-Mode Voltage

-4V

VCC- Common-Mode Voltage

+4V

Packaging Dimensions

0.365 in. × 0.325 in. × 0.285 in.

Weight (Packaging)

0.001 lbs.
