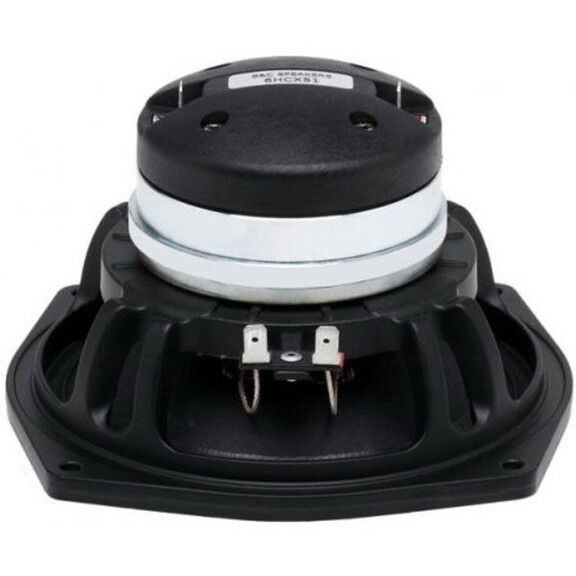

B&C 6HCX51 6.5" Professional Neodymium Coaxial Speaker 70 x 70 8 Ohm
Brand B&C Speakers
See other products from PEX
* Click "Add to Cart" to calculate shipping and delivery time.
Pricing Note
Product Description
Manufacturer Part Number: 6HCX51
The B&C 6HCX51 6.5" neodymium coaxial speaker's point source design offers improvements in overall coherency, thanks to optimized driver alignment.
Key Features:
B&C 6HCX51 6.5" Professional Neodymium Coaxial Speaker 70 x 70 8 Ohm
B&C's 6HCX51 6.5" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The class-leading 6HCX51 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, studio monitors, or high-efficiency home audio systems.
The 6HCX51's neodymium LF/HF motor, polyester diaphragm HF driver, and FEA-optimized design produce high output and minimal distortion. In addition to the superior articulation and accuracy of coaxially aligned drivers, the 6HCX51 requires very little baffle area compared to separate LF and HF components.
The B&C 6HCX51 6.5" neodymium coaxial speaker's point source design offers improvements in overall coherency, thanks to optimized driver alignment.
Key Features:
- Coaxial HF driver with 1.4" voice coil, polyester diaphragm, and 70° X 70° coverage
- Neodymium ring magnet shared by LF and HF components keeps weight below 3-1/2 lbs.
- Copper-wound 2" woofer voice coil ensures good power handling
- 2.2 kHz recommended crossover point
- Use with passive or active crossover (not included)
B&C 6HCX51 6.5" Professional Neodymium Coaxial Speaker 70 x 70 8 Ohm
B&C's 6HCX51 6.5" coaxial loudspeaker produces generous amount of low-distortion output despite its compact form factor. The class-leading 6HCX51 offers resolution and accuracy that are suitable for professional "fill" loudspeakers, studio monitors, or high-efficiency home audio systems.
The 6HCX51's neodymium LF/HF motor, polyester diaphragm HF driver, and FEA-optimized design produce high output and minimal distortion. In addition to the superior articulation and accuracy of coaxially aligned drivers, the 6HCX51 requires very little baffle area compared to separate LF and HF components.
Product Details | |
|---|---|
| Brand | B&C Speakers |
| Model | 6HCX51 |
| Part Number | 294-5762 |
| UPC | 848864008790 |
| Unit of Measure | Each |
| Weight | 4.4 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6-1/2" |
| Bolt Circle Diameter | 6.7 |
| Moving Mass Of Diaphragm (Mmd) | 16 |
| Power Handling (RMS) | 150 Watts |
| Power Handling (MAX) | 300 Watts |
| Impedance | 8Ω |
| Frequency Response | 90 to 18,000Hz |
| Sensitivity | 92dB 2.83V/1m |
| Voice Coil Diameter | 2" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 89Hz |
| DC Resistance (Re) | 5Ω |
| Voice Coil Inductance (Le) | 0.8mH |
| Mechanical Q (Qms) | 7.5 |
| Electromagnetic Q (Qes) | 0.4 |
| Total Q (Qts) | 0.38 |
| Compliance Equivalent Volume (Vas) | 0.18ft³ |
| BL Product (BL) | 10.9T·m |
| Maximum Linear Excursion (Xmax) | 5mm |
| Surface Area of Cone (Sd) | 132cm² |
Materials of Construction | |
|---|---|
| Cone Material | Coated Paper |
| Voice Coil Wire Material | Copper |
| Magnet Material | Neodymium |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 7.4" |
| Baffle Cutout Diameter | 5.75" |
| Depth | 4.1" |
| # Mounting Holes | 4 |
