Product Description

Manufacturer part number: 3903-2308

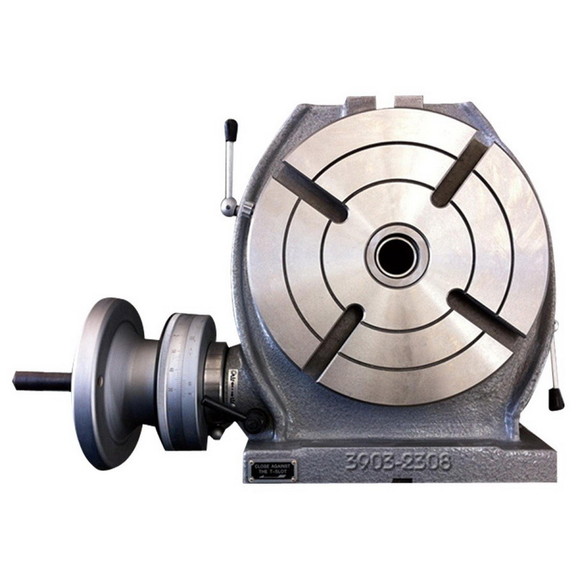

  • 8 Inch Horizontal/Vertical Rotary Table
  • Dividing plates are interchangeable with Phase II.
  • T-slots are machined within acceptable tolerances. ~ T-slot width is 0.465".
  • Worm gear is is easily disengaged for free rotation. 90:1 gear ratio.
  • Long life and continued accuracy is assured by a convenient adjustment to compensate for wear.
  • All rotary table parts are strategically positioned for easy access.
  • The one piece worm and shaft are hobbed from a solid alloy steel.
  • Extra deep coolant channel.
  • 10 second vernier reading.
  • Dual positive action locks.
  • Graduated 360 degrees.
  • Gear drive is immersed in oil.
  • The engraved graduations are both crisp and clear to eliminate erroneous readings.
  • 3 MT center hole with 4 T-slots. ~ Vertical center height is 5.98".
  • High precision bearing surfaces insure ultra-smooth rotation. Superior grade meehanite castings provide the ultimate rigidity. All rotary tables are precision ground to meet the most extracting requirements and are individually supplied with a certificate of inspection.


This item is oversize. we may contact you when we process the order.
